Universal Milling Machine Tool
Price: |
US $ 8350-14900/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

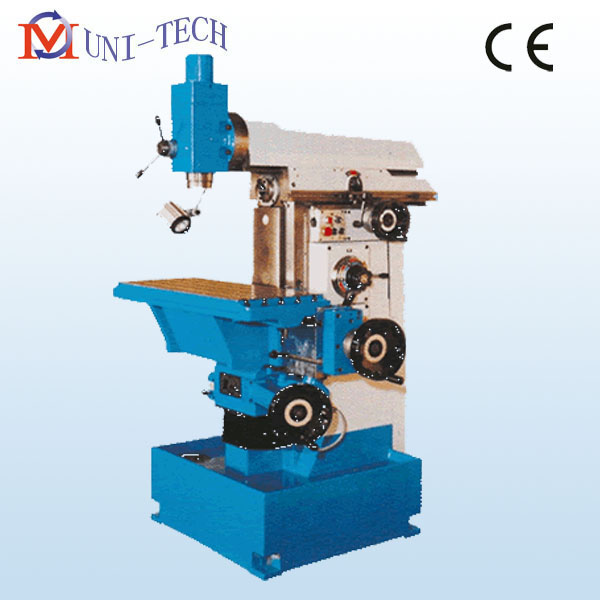

Universal milling machine tool LM1450LM1450 is a vertical and horizontal swivel head universal milling machine.
Features:*Hardened guideway
*X.Y axis auto feeding, Z axis motorized lift
*Mill headswivel ±360 degree with high performance
Standard Accessories:1.Mill chuck
2,Machine vice
3,Spanner
4,Inner -hexagonal spanner
5,Horizontal Milling Hilt
6,Draw Bar
Optional Accessory:
1,FW125 universal dividing head
2,TS320 rotary table
3,Slotting head
4, Clamping Kit
5,Digital Read Out
Workshop Specifications | LM1450 |
Spindle taper | ISO40(ISO50)H |
Max end milling | 125 (V)100(H) |
Swivel angle milling head(°) | ±360° |
Table size | 1250*360 |
Table travel | 970(1000)*300*450 |
T-slot(number-width-distance)(mm) | 3/18/80 |
Main motor(kw) | 3 (ISO50/4KW) |
Distance from spindle to table(mm) | 150-600 |
Distance from spindle to column(mm) | 760 |
Range of spindle speed | 35-1600(V) 40-1300(H) |
Overall dimensions(mm) | 1550×1670×1950 |
N.W/G.W (kg) | 2650/2850 |
Prod Model: |
LM1450 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max End Milling: |
125/100mm |
Table Size: |
1250X360 |
Type: |
Tool Milling Machine |
Object: |
Hardware |
Structure: |
Lifts |
Controlling Mode: |
Program Control |
Automatic Grade: |
Manual |
Precision: |
High Precision |
Tengzhou Uni-tech machinery Co. Ltd, specially in the range of supplying different machines, machine tools, machinery accessories. With long time exporting machines experience, we can not only supplying our customers stable quality products, but also more excellent service.
Supplying source:
1. As an machinery supplier for many years, we are aware whose quality is acceptable, whose quality is poor, we always can meet our customers requests, precisely. With the long time and deep relationship with the factory, as exporter, we can get better prices, which play a key role in the market competition...Ours development coming from customers growing.
2. We also follow the products developing, always can recommend the newly developed products to our customer to meet the changing market.
3. With the experience, we also can meet customers products improvements, for
some place modifying, in order to meet exactly customer requests.
Quality Control
We have our own engineer who has more than years of working experience and is professionally trained. Our trained engineers can help customers on behalf of company not only inspect goods before shipping but also track all links of production process.
After-sales service
We guarantee that all products could be used with free of defect in one year from the date of purchase. During our guarantee period, all customers enjoy free service of repairing of changing any defective parts. This guarantee does not apply to those defects directly or indirectly due to improperly use and repairs or maintenance.
Customer-service
We can provide customers the fast after-sale service warranty. In order to meet this point,
What your requests, including the spare parts posting requests, quality modifying, price inquiry, delivery time checking, we will try our best to feed back within 24 hours.
CUSTOMER PROFITS IS ALWAYS THE FIRST, AS OWING TO CUSTOMER NEEDING, EXPECTING, INFLUENCE, UNIQUE, WE MUST BE CONSIDERATE, FASTER, FLEXIBLE, THEN WE CAN HAVE BRIGHT FUTURE.
We are engaged in manufacturing and supplying all kinds of metal workings machines, machine tools and accessories, measuring tools… … . With rich experience in exporting and manufacturing, we are always pay more attention to the Fast inquiry replying, Strict quality control, On time delivery time, Quick after-sales-service, also for the best price for our customers, we also have more certificate such as ISO, CE. Hope to take this chance to enter into direct business with you.
*manufacturing and supplying all kinds drlling and milling machine, turret
milling machine,
*manufacturing all kinds of gap bed lathes and supplying different accessories.
*** manufacturing all kinds of manual metal sheet products
