Product Specifications
| Prod Model: |
NW-111 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Type: |
2-Stroke,1-Cylinders, Reed Valve |
| Displacement: |
50 Cc |
| Bore X Stroke Mm(in.): |
42.0×36.0(1.65×1.42) |
| Max Output Kw(HP): |
1.5(2) |
| Full Throttle Rpm Range: |
4500~5500 |
| Fuel: |
Gasoline Engine |
Product Description

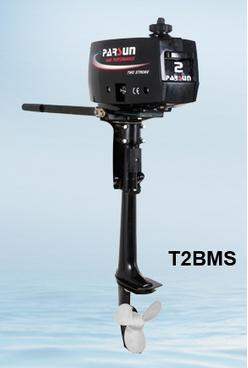

Up-to-date Styling 2HP Outboard Engine
FEATURES:
1. Superior outboard engine water cooling system for improved engine performance
2. Twist grip throttle control for easy maneuverability & safety
3. Heavy duty aluminum cast starter for increased durability and reliability
4. Special engine design for increased power, high performance, durability and fuel economy
5. Durable cast aluminum construction for superior corrosion protection
6. Heavy duty lightweight aluminum cast propeller is standard equipment
7. Lightweight, compact and power-pact! Built light and compact, providing you the most power in a small parcel, so you can take them anywhere
8. Built-in Fuel Tank, Manual Starter & 360 degree steering without gear shifting-convenience
9. Front controls (Throttle, choke, recoil starter, Engine stop switch)-easy operation
10. Long steering handle, friction adjustment and Tilt-up stopper adjustment- -maneuverability
11. Perfect for inflatables, fishing boats, sailboats and small yachts
| ITEM | T2BM |
| Engine type | 2-stroke,1-cylinders, Reed valve |
| Displacement | 50 cc |
| Bore x Stroke mm(in.) | 42.0×36.0(1.65×1.42) |
| Max output kw(hp) | 1.5(2) |
| Full throttle RPM range | 4500~5500 |
| Ignition system | TCI |
| Starting system | Manual |
| Steering system | Tiller with 360° Full Pivot |
| Gear shift | Forward |
| Gear ratio | 2.08 (27/13) |
| Trim and tilt system | Manual,1 positions/Shallow drive |
| Max fuel consumption | 1.3 L/h |
| Fuel tank capacity | within 1.2 L |
| Oil mixing ratio | 50:1(fuel:oil) |
| Gear oil capacity | 45cc |
| Dry weight | 9.8 kg |
| Overall width mm(in.) | 234(9.2) |
| Recommended transom height | 381 mm(15 in.) |
| Alternator output | N/A |
| Propeller options* | 3-71/4"x5" |
| Propeller engagement | Shear Pin |
*Propeller choice will vary by boat size and application.
*B=Back control(Tiller control), M=Manual start, X=Ultral long shaft, L=Long shaft
