Product Specifications
Prod Model: |
MCL-BA 600-1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Diagnostic Tests: |
Urine Analyzer for Lab |
Medical Diagnostic Tests: |
Glucose, Bilirubin, Ketone, Specific Gravity, Bloo |
Test Method: |
Dry Strip Color-Developing Method |
Test Principle: |
Reflective Photometry with Dual-Wavelength |
Light Source: |
Cold Lamp with High Brightness and Long Lifetime |
Wavelength: |
450nm, 550nm, 650nm |
Test Mode: |
Single and Continuous Test Mode Are Selectable |
Throughput: |
120 Strips/Hour |
Display: |
LCD with High Brightness |
Pathological Analysis Equipments: |
Urine Analyzer for Lab, Clinic, Hospitals |
Classification: |
Physiological Functions of Diagnosis and Monitoring Equipment |
Type: |
Urine/Hematology Analyzer |
Certification: |
ISO13485 |
Group: |
All |
Product Description
Pathological Analysis Equipments,Urine Analysis System Type medical diagnostic tests

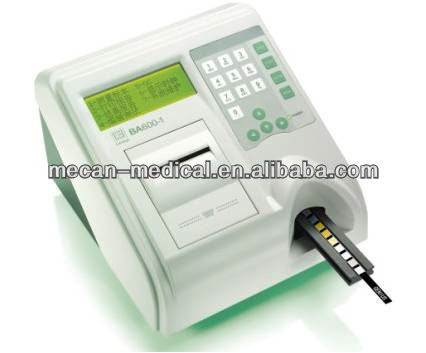

Model: MCL-BA 600-1
Parameters of Urine Analyzer :
Test Items: Glucose, Bilirubin, Ketone, Specific Gravity, Blood, pH, Protein,
Urobilinogen, Nitrite, Leukocyte, Vitamin C
Test Method: Dry Strip color-developing method
Test Principle: Reflective Photometry with dual-wavelength
Light Source: Cold Lamp with high brightness and long lifetime
Wavelength: 450nm, 550nm, 650nm
Test Mode: Single and Continuous test mode are selectable
Throughput: 120 Strips/Hour
Test Slot: Using Sliding Slot, Easy to clean and replace, Lower the Carryover
Test Strip: Provide original strips
Display: LCD with high brightness for Urine Analyzer .
Language: Chinese and English are selectable
Memory: Saving more than 1000 samples results, and auto recover the results when
power off during working
Interface: RS-232 serial port, can be connected to external printer and computer
Printer: Inner thermal printer, can be connected to external printer
Report format: Half quantitative and qualitative
Result unit: SI unit and routine unit are selectable
Status Check: Auto checking the status during power on and off, auto indentify the alarm.
Working Environment: Temperature:10°C~30°C;Humidity:20%RH~80%RH
Voltage:85-264V, Auto adapt according to the input voltage
Power : ≤80W
Quality System: Recognized by TUV and CMD
Welcome to contact MeCan Medical for Urine Analyzer .
