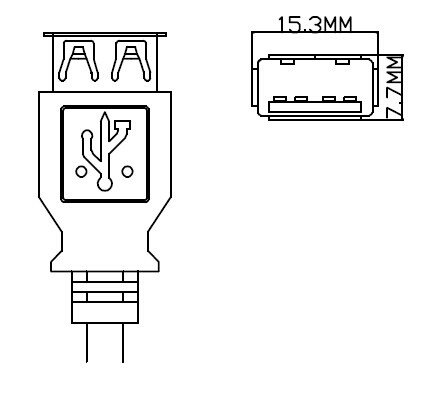

Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB |
Min Order: | 1000/Piece |
Pay Type: | T/T |
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
---|---|
Interface Type: | USB |
Application: | Mobile Phone |
Feature: | Waterproof |
Shape: | Round |
Printer Cable Type: | USB |
Color: | Black |
Material: | CCS |
Pin: | 19pin |
Power Cable Type: | CCS |
Computer Cable Type: | USB |
Attenuation (dB/Cable) | Frequency (MHz) | 0.064 | 0.0256 | 0.512 | 0.772 | 1.000 | 4.000 | 8.000 | 12.00 | 24.00 | 48.00 | 96.00 | 200.00 | 400.00 |
USB1.0 | 0.08dB | 0.11dB | 0.13dB | 0.15dB | 0.20dB | 0.39dB | 0.57dB | 0.67dB | - | - | - | - | - | |
USB1.1 | 0.08dB | 0.11dB | 0.13dB | 0.15dB | 0.20dB | 0.39dB | 0.57dB | 0.67dB | 0.95dB | 1.35dB | 1.90dB | - | - | |
USB2.0 | 0.08dB | 0.11dB | 0.13dB | 0.15dB | 0.20dB | 0.39dB | 0.57dB | 0.67dB | 0.95dB | 1.35dB | 1.90dB | 3.20dB | 5.80dB | |
lmpedancestry(Signal Pair) | Differential Mode(Zo) | 90 Ohm ± 15% | ||||||||||||
Differential Mode(Zcm) | 30 Ohm ± 30% | |||||||||||||
DC Resistance(From Plug Shell to Plug shell) | <0.5Ohm | |||||||||||||
Propagation Delay(One Way)(TFSCBL) | 26ns/Cable(USB1.1;5.2ns/m(USB2.0) |
Connectors | PIN Assignment | Connectors | PIN Assignment | |||||
Series A Plug | Contact Number | Signal Name | Typical Wiring Assignment | Mini-B Plug (5 PIN) | Contact Number | Signal Name | Typical Wiring Assignment | |
1 | VBUS | Red | 1 | VBUS | Red | |||
2 | D + | White | 2 | D + | White | |||
3 | D - | Green | 3 | D - | Green | |||
4 | GND | Black | 4 | D | Not Connected | |||
Shell | Shield | Drain Wire | 5 | GND | Black | |||
Shell | Shield | Drain Wire | ||||||
Series A Plug | Contact Number | Signal Name | Typical Wiring Assignment | Mini-B Plug (4 PIN) | Contact Number | Signal Name | Typical Wiring Assignment | |
1 | VBUS | Red | 1 | VBUS | Red | |||
2 | D + | White | 2 | D + | White | |||
3 | D - | Green | 3 | D - | Green | |||
4 | GND | Black | 4 | GND | Black | |||
Shell | Shield | Drain Wire | Shell | Shield | Drain Wire |
