Product Specifications
| Prod Model: |
LU-M80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
USB |
| Card Slots: |
Single |
| Place Of Origin: |
Guangdong China (Mainland) |
| Voltage: |
DC5V |
| Net Weigt: |
80g |
| Application: |
Reading Stripe Card |
| USB Cable Length: |
1.5m |
| Decode Style: |
F2f Hardware Decode |
| Installation: |
External |
| Type: |
Magnetic Stripe Card |
| Material: |
ABS |
| Function: |
Information |
Product Description

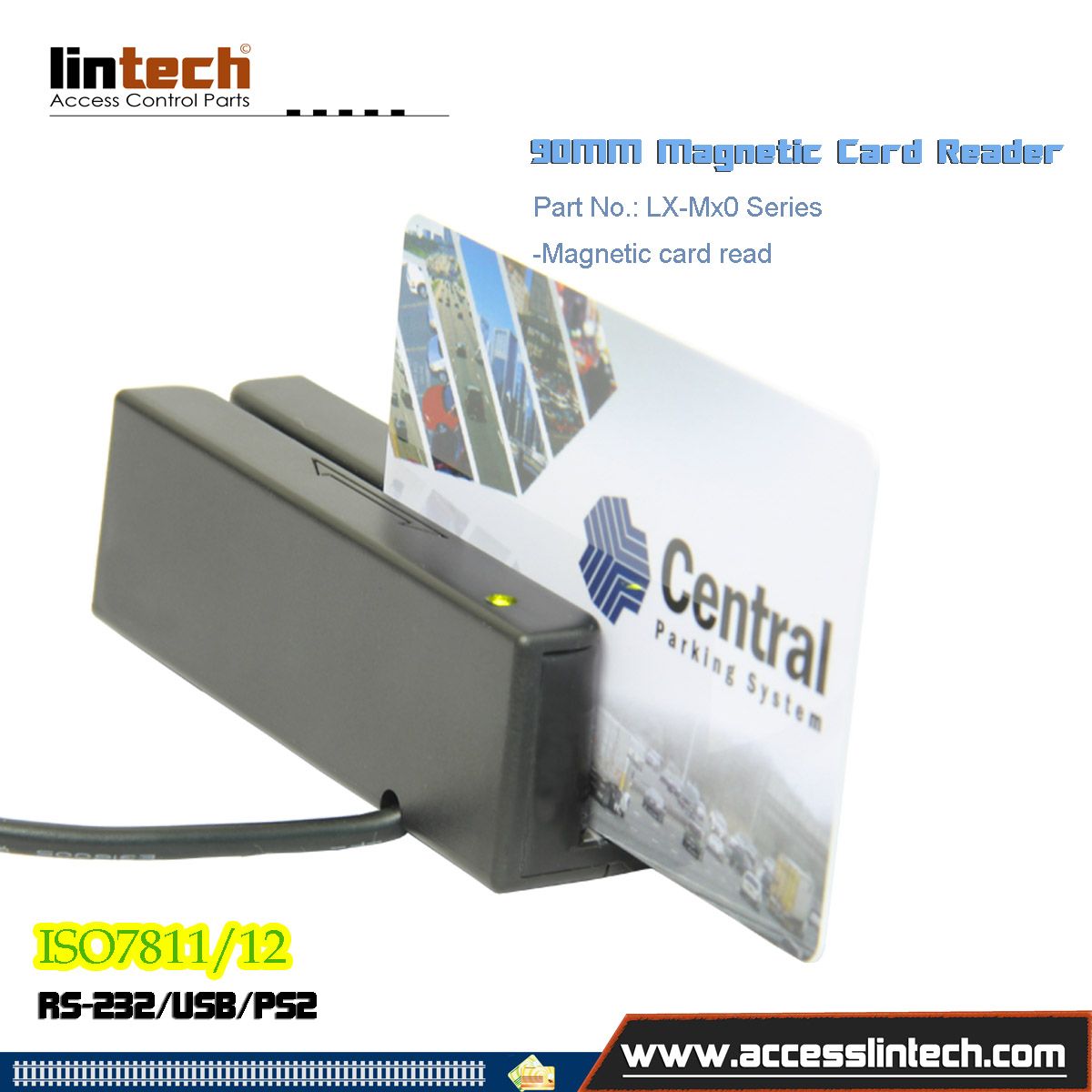

USB Magnetic Card Swipe USB magnetic card reader software
LU-M80
This USB Magnetic Card Reader for stripe card/magnetic card reader is hand swipe operated magnetic card reading with USB interface,
Adopting high integrated magnetic card decoding chip.
They have small electricity consumption and strong interference resistance.
They comply with ISO-7811, 7812 magnetic card decoding standard completely.
It can read card bi-directionally, has intelligent lights to alert if card data is read correctly.
Exquisite magnetic installation structure makes card reading more stable and reliable, which is our patented technology.
Reasonable product design makes products small and compact.
Features of USB magnetic card reader software
1. Small footprint to fit in tight places
2. Reads up to 3 tracks of information
3. Bi-directional swipe reading
4. Superior reading of high jitter, scratched, and worn Magstripe cards
5. Relibale for over 1, 000, 000 card swipes
6. Threaded inserts for mounting
7. Reads ISO7811, AAMVA & most other card data formats
8. Magswipe PC software makes configuration changes easy
Description of USB magnetic card reader software
Size: 90X 27 X 29 mm( L x W x H)
Color: Black
Swipe speeds from 3 to 60 inches per second
Interfaces: USB
Housing: ABS
Operating Temperature: -20 to +60
Relative Humidity: 90% non-condensing
Works with: Windows 98/2000/XP/Vista/7 Android or many other USB capable operating systems
APPLICATIONS of USB magnetic card reader software
(1)POS terminal
(2)ID verification/Authentication
(3)Member management system
(4)Inquiry system
** LX-Mx0 Series Model Number Rules**
X=U=USB Interface
X=S=RS232 Interface
X=K=PS2 Interface
X=1=Read first track only
X=2=Read Second track only
X=3=Read Third track only
X=5=Read first and second track only
X=6=Read second and third track only
X=8=Read all track(1, 2, 3 track)
Example: LU-M80 means this a card reader is USB interface and read all three tracks.
Kindly Reminder:
-When the magnetic reader 's Green light is on, when connecting. Green light blinks when cards swiped.
-Product details and 3-5 days after the payment is confirmed we will deliver the goods to you.
-If you are interested in our products, please contact us by email or Skype(lintech04). We will reply you within 24 hours.
|
Technology parameters |
|
|
Card Standard |
ISO 7811/7812 |
|
Track Position |
ISO 1 (IATA) |
ISO 1 (IATA) |
ISO 1 (IATA) |
|
Recording Density |
210 BPI |
75 BPI |
210 BPI |
|
Recording Capacity |
79Characters |
40Characters |
107Characters |
|
Power Supply |
DC +3.0V~ +5.0V |
|
Power Consumption |
65mA(max.) |
|
Head Function |
Read only 1.5mm |
|
Card Thickness |
Plastic 0.76 +/- 0.08mm |
|
Operation Speed |
10 ~ 150cm/sec |
|
Error Rate |
Lass than 0.5% |
|
Interface |
PS/2, RS232C,USB |
|
Operation Locus |
Indoors only |
|
Lifetime of Header |
800,000 card passes (1 pass : one swipe) |
|
Weight |
Approx. 80g |
