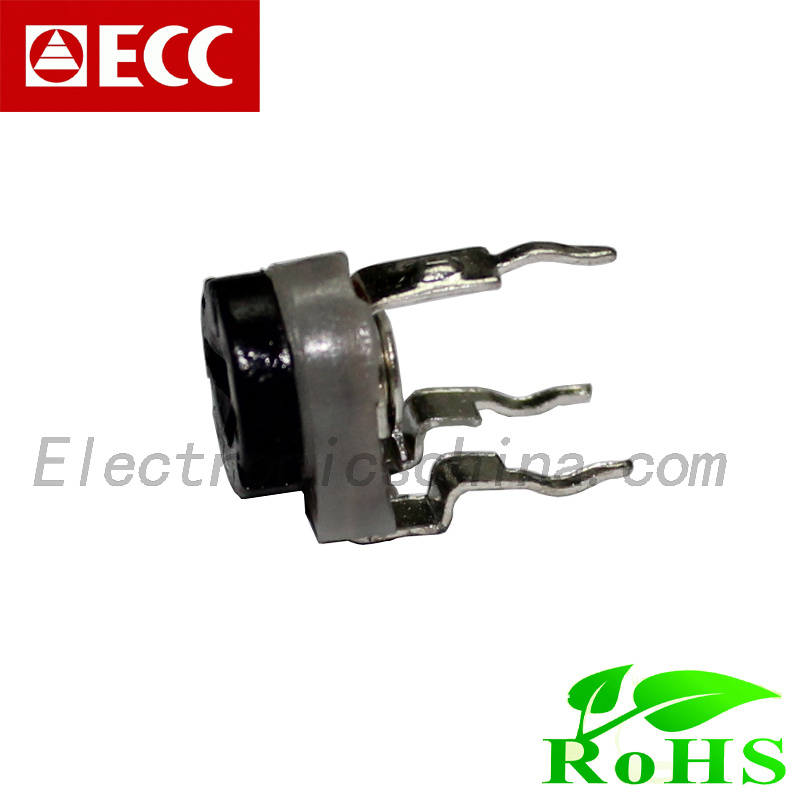

Three Terminal Trimmer Potentiometer (sm065-100Ω /1k/5k/10k/50k/100k/500k/1m)
SM065 Semi-fixed Potentiometer
Carbon(SR, SM)
Trimming Potentiometer Mechanical characteristics:
Rotational angle: 210 degree +_10 degree
Rotational torque: 5-35mN. M(50-350gf. Cm)
Stopper strength: 35mN. M(350gf. Cm)
Trimming Potentiometer Electrical characteristics:
Total resistance: 200 Ohm-1M Ohm
Total resistance tolerance: +_30%
Resistance taper: B
Rated power: 0.1W(at 50 centigrade)
Max. Operating voltage: 50V
Residual resistance: R<=1k Ohm 30Ohm max
R>1K Ohm 3% max
Trimming Potentiometer Mechanical characteristics:
Soldering heat: 240 centigrade, 3s
Humidity: After 350h +_20%-0%
Operational life: 100 turns
Sample:
1. Sample: We can provide free samples for most of items.
2. Samples time: Need 3-5 days to preparing the samples,
Except some especially items.
Quality Guarantee:
1. Strictly quality Check before leave factory
2. We have ISO9001 ROHS certificates.
Advantage:
1. We are en end manufacturer
2. New design Accepted: As your requirement
3. Good Quality: Strict quality control and good reputation
5. Fast & Cheap Delivery: Big discount from express agent
(Long-term Contract with DHL, FedEx, EMS, UPS, TNT)
Electronics China (Huizhou) Co., Ltd. [formerly Mika Electronics ] was established in 1988 and represents a SinoForeign joint venture withthe ECCGroup-the major shareholder. The Company s pecializ es inthe manufacture of a wide range of pass IV e components including Carbon Potentiometers, Rotary Encoders and Tactile Switches with ISO9000 Certification. Todaythefactory encompass es an area of 12, 000 s quare meters employing 300fully-trained staff. Most of the high precis ion equipment has been importedfromGermany, U. S. A, Slov enia and Taiwan. Ins trumental in the success of the Company has beenthe very s trong emphasis put on good management and of the expansion of our production capacity.
We also offer as a managing principle Quality, Service, Price&Value-or what we term QSPV-and invite you if you were considering of outsourcing, or wanting to do low-cost development in China that we forge a partnership and build a strong relationship that can be backed up with our 20 years experience in the industry. The company utilizes a wide network of contacts & suppliers across China and when called upon Chinese language search engines to locate obsolete or allocated product {or products} to help you save time and money.
We also offer as part of our commitment to you the following services:
1. Flexibility with minimum order requirements.
2. Scheduled deliveries.
3. Consolidated shipments either by air or sea.
4. Full product datasheets.
5. Technical support.
6. Simple ordering procedure: Email, fax or mail.
7. Competitive shipping rate
Please contact ustoday inthe very s trictes t of confidence with a detailed overv iew of your product specification, order
Quantity and/or other requirements. Enquiries must accompanyfull and precise detailed information including
Specifications, drawings and/or hyperlink.
