Product Specifications
| Prod Model: |
CL-P2624U-C5E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
RoHS |
| Condition: |
New |
| Support Network: |
Ethernet |
| Usage: |
Workstation |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

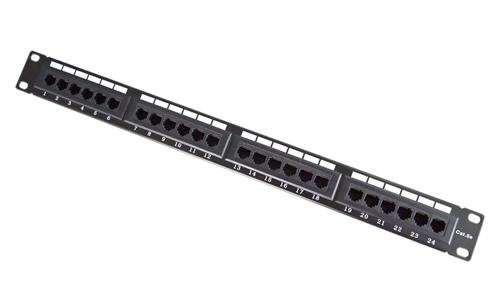

UTP Cat. 5e 24port Patch Panel
Main Description of the patch panel:
1.24 ports patch panel, Cat. 5e UTP type. The structure of each port of this
Patch panel is same which makes sure that the performance of each port is
Consistent.
2. According to the standard of ISO/IEC 11801: 2000 CLASS D and
ANSI/TIA/EIA/568B Cat. 5e standard. T568A punching sequence and T568B
Punching sequence are both compatible. Fitting for horizontal distribution in
The equipments room and equipments connecting.
3. Connecting: FCC port for Cat. 5e UTP patch cord and IDC for horizontal
Distribution cables.
4. Compatibility: Compatible for UTP Cat. 5e general cable distribution
Systems.
5. IDC: 110 type or dual use type for your choice.
Patch panel technique Characteristics:
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins,
Shielding shell of the RJ45 jack: Brass housing with nicket-plated; IDC clip:
Tinned phosphor bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times.
FCC ports inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tool: Standard 110 tool for 110 IDC, Standard LSA tool for LSA
IDC, Standard 110 tools or LSA tool for dual IDC.
6. Testing condition of transmitting capability: 100MHz
