Product Specifications
| Prod Model: |
VS-UVSS-1M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
| Technology: |
Wireless |
| Application: |
Sound Monitoring |
| Feature: |
Vandal-proof |
| Sensor: |
CCD |
Product Description
Specifications
1. Auto digital line scan
2. High-resolution and high-definition
3. IP66 protection grade
4. Water-proof, fog-proof
Portable under vehicle security system
1.1: This system can be widely used in the following places:
1. Airports, government buildings, prisons, bank depot, military zones, seaports, police offices, etc, all of which requires highly secured for anti-terrorism purpose.
2. Customs, border control
3. Car park entrance checkpoint to important building
4. Toll station checkpoints
5. Checkpoints for entering and exiting vehicles attending conferences
1.2: Characteristics:
1, digital line scan, high resolution and definition
2, complete image, without any omission
3, convenient design, easy to carry and move, especially suitable for temporary occasions
4, easy to connect and install; In the spot, it can be installed and put into use within 15 minutes
5, IP66 protection degree
6, multi-lingual operation interface

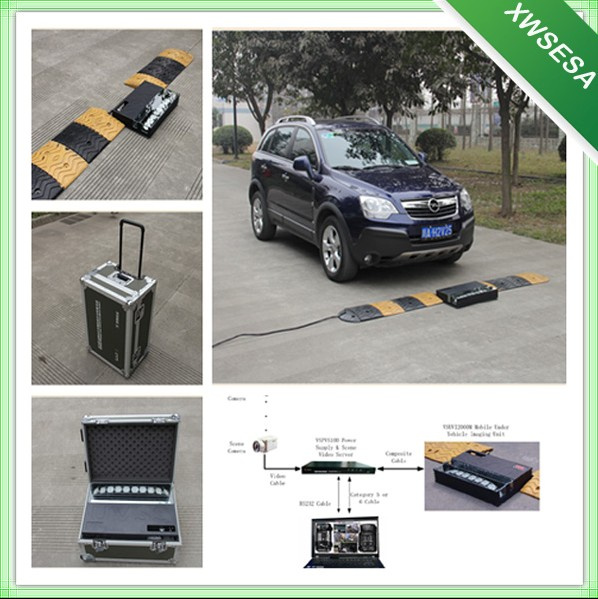

1.3: Components:
1, mobile under vehicle imaging equipment VSUVI2000M
2, power supply and scene video server VSPVS100
3, portable carrying case
1.4: Main technical indexes:
Mobile under vehicle imaging equipment VSUVI2000M
Sensor: Special CCD
Resolution: 2048
Light source: LED
Data transmission interface of UV image: Internet RJ45
Dimension: 550MM*360MM*80MM
Working temperature: -10° C to +60° C
Power supply: 12VDC, 5A, 60W
Protection level: IP66
Power supply & scene video server VSPVS100
Scene video: 1 to 4 channels (match)
Scene video resolution: CIF or 4 CIF
Plate recognition: 1 channel (match)
Data transmission interface of scene video: Internet RJ45
Power supply: 220VAC
Our company (Chengdu XIWU Security System Alliance Co., Ltd) was founded in 1991, a hi-tech enterprise controlled by NO. 209 Institute of China Ordnance Industries, which mainly engaged in researching, producing and sales of security systems and military e-products; Design, installation and integration of construction intelligent system and computer information systems.
