Product Specifications
Prod Model: |
cx |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Quality: |
World-Class |
Price: |
Competitive |
Exported: |
More 80 Countries |
Experience: |
More 20 Years |
Technology: |
Advanced |
Accuracy: |
>?à1% |
Measuring Media: |
Liquid |
Size: |
DN50-100 |
Main Application: |
Corrosive Liquid/Gas |
Product Description
VARIABLE AREA FLOW METER
over view

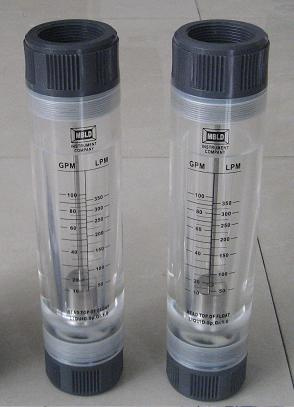

LZT Panel Piping Type Flowmeter Panel( Piping )Type flowmeter is also called the variable-area (or float)flowmeter. The material of measuring tube is made of High-quality and transparent lucite (cast acrylic) . This
flowmeter is mainly applied to form a complete set in clean water treatment and environmental protection
projects. It also can be used in chemical industry, petroleum, light industry, medicine, fertilizer, food, papermaking and scientific research, etc., to measure the single-phase non- pulsing flow of liquid and gas.
Panel( Piping ) type flowmeter has the characteristics of high transparency, reading ocular, in rare cases to be broken, light weight, long-life,convenient for installation ect..
Would you pls give us more specific information as below:
What's the medium?
What's material ?ss304 ,ss316 or plastic)
What's installation :vertical or horizontal?
Is one float or 2 float type switch?
What's required dimension of level switch?
What's required screw type and flange ?
what's the pressure ?
What's the length of the cable?
what's distance for move point?
required dimension of level switch?
Payment Terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Accuracy |
+/-4%FS |
Repeatability |
+/-0.25%FS |
Rangeability |
10:1 10:1 5:1(10:1) 10:1 8:1 10:1 10:1 10:1 10:1 10:1 |
Maximum pressure |
1MPa/150psig |
Maximum temperature |
80 /176 F |
Body material |
Acrylic |
Float material |
316 (Stainless steel) |
Guide rod material |
316 (Stainless steel) |
Fastening screw material |
(Copper) |
Tube connection material |
UPVC,ABS |
Upper and lower adapter bearing |
F46 |
O shape sealing ring |
(Silicon rubber) |
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.
Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
