Description:

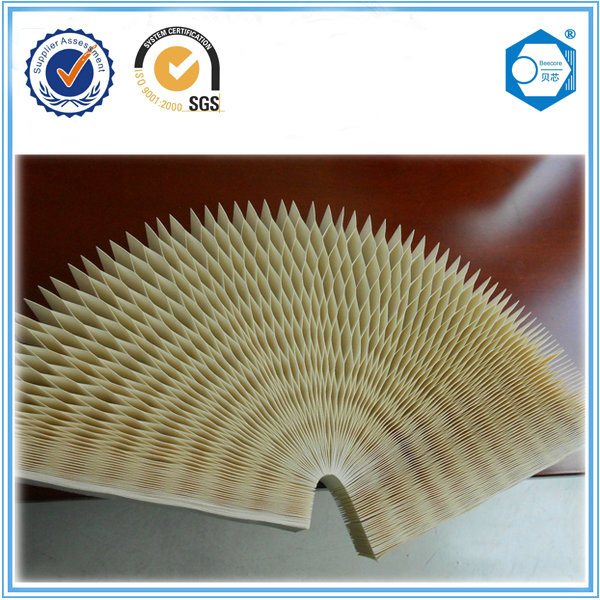

Paper honeycomb core is made from layers of recycled paper, bonded together by parallel and uniformly spaced lines of adhesive. When it is expanded for use, it forms a honeycomb configuration with hexagonal cells, creating a light but inredibly strong and rigid material, that has excellent properties, particularly shear modulus.
It is easy to use, the paper honeycomb is produced to fine toelerance, which guarantees consistent thickness, it provides a smooth surface with all facing materials, and can be used in hot or cold pressing. It is also easy to store, one pallet's quantity can be used for nearly 1000pcs of panels or doors.
Specification:
1, High strength recycled paper
2, Paper density: 120, 140, 170, 180g per sqm
3, Cell size: 10 - 25mm
4, Core height: ≥ 5mm
5, Max raw paper width: 1600mm (1200mm after expansion)
Features:
-100% recycled paper
-High pressure strength
-Light weight
-Flexible in shapes
-Easy processing
-Saving handling, packaging, and transportation costs
-Cost effective
-Environmental friendly
Applications
Packaging: Paper pallet, paper honeycomb board, paper honeycomb carton etc.
Furnitures: Door, Wall units, Office table, Screen etc
Buildings: Clean room panels, ship interior panels, decorative sheet, partition panels, exhibitions stand, open-style office, etc.
Notification:
--Strength of honeycomb core is decided by cell size, raw paper density, and core height.
--All honeycomb core is customized according to customers' requests.
--Please kindly let us know your request on cell size, raw paper density, core height, width and length after expansion, quantity.
| Paper type | recycled paper, flame retardant paper |
| Paper density | recycled paper | 120g, 140g, 170g per sqm |
| flame retardant | 140gsm |
| Cell size | 10-25mm |
| Core height | ≥ 5mm |
| Max width after expansion | 1600mm |
| Supply form | cut sections or endless, expanded or unexpanded |
| Specification of Normal Paper Honeycomb Core |
| Side length (mm) | a=6 | a=8 | a=12 | a=15 |
| Cell size (inch) | 3/8 | 1/8 | 4/5 | 1 |
| Max expanded dimension (mm) | 3000x 1200 | 3000x 1200 | 6000x 1200 | 10000x 1200 |
| Core thickness (mm) | 5-180 | 8-180 | 10-180 | 10-180 |
Suzhou Beecore Honeycomb Materials Co., Ltd is an ISO9001: 2008 certified company which was established in 2009, now it is becoming the largest honeycomb materials producer with steady growth in sales and market share in Eastern China. Under the brand name of BEECORE and HONGZAN, we are mainly involved in manufacturing various types of honeycomb core, panels, and honeycomb processing equipments as well. Our business networking is strong enough to cater all customers' needs both locally and globally.
We have vast experience, strict costs and quality control system to providing you honeycomb products with best price to performance ratio. All of our products are comply with International Quality Standards.
Taking quality first and customer oriented as philosophy, we'd like to make all efforts for satisfying our customers and assisting them for long term values creation.
