Product Specifications
Prod Model: |
HCT-F3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
C/D Dimension: |
233L X 69W X 200h Mm |
Net Weight: |
Approx. 1.6kg (Excluding Accessories and Package) |
Power Supply: |
DC24V ± 5%,2.5A |
Type: |
Queue System |
Product Description
General

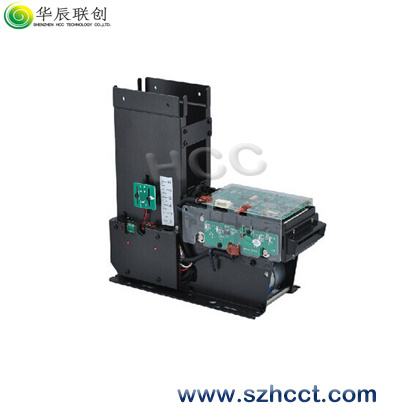

HCT-F3 series card issuing machine supports IC/RF card R/W and issuing/collecting functions, which is primarily applicable to self-service terminal equipments such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, bank card management system and electricity bill payment system.
Feature
Ø Supports ISO7816-2. Contact type IC card reading/writing.
Ø Unique dispensing wheel design: Is capable of issuing various embossing cards accurately.
Ø Automatic internal adjustment: Ensures accurate issuing cards of different thicknesses.
Ø Multi functions in one device: Provides IC card reading/writing, issuing/collecting functions and effectively saves space for the complete machine.
Ø Rear card capture box: Provides convenience for card management.
Ø Simple collection channel design: Satisfies user requirement for large collection amount.
Ø Multiple sensors: Are able to judge the card position and indicate the card status...
Ø Scientific card transfer wheel design: Automatically avoids dust accumulation which will lead to slippage.
Ø High-strength wearable plastic channel: Is adopted to reduce the risk of metal shielding and increase the success rate of RF card reading/writing.
Ø Multiple levels of sensor circuit protection: Prevents optical interference.
Ø PCSC protocol: Is available
ELECTRICAL | Power Supply | DC24V ± 5%,2.5A |
Quiescent Current | < 200mA |
Communication Method | USB(PC/SC)/ RS232 (optional) |
STRUCTURE | Service Life | Issuing life ≥ 1,000,000 passes |
IC contact ≥ 500,000 passes |
Card Stacker Capacity | 175 pcs (0.76mm standard card) |
130 pcs (0.76mm embossing card) |
350 pcs (0.4mm thickness) |
Capture Box Capacity | 25 pcs (0.76mm standard card) |
Net Weight | Approx. 1.6KG (excluding accessories and package) |
C/D Dimension | 233L x 69W x 200H mm |
ENVIRONMENTAL | Operation Temperature/ Humidity | 0°C to 50°C, 0 to 90% RH without condensation |
Storage Temperature/ Humidity | -25°C to 80°C, 0 to 90% RH without condensation |
PERFORMANCE | Cards Supported | 86L x 55W mm (0.2~1.2mm thickness; factory standard: 0.8mm) |
Mifare Type A Operating Frequency | 13.56 MHz |
