Product Features
1. Due to different materials absorb different waves, when adopting laser non-contacting cutting, it can precisely control the
cut position, slitting, depth with precise repeating orientation, and can processing the inner shield layers, as well as insulators
in various materials, then minimize the possibility of finished product defects.
2. According to different materials of the wires, we can choose the right laser system to meet our special wire processing needs.
3. After laser stripping, the wire tension is stronger than it is processed by thermal desorber.
4. After laser stripping, the inside and outside of the insulation layer has no incision, no irregular behavior.
5. Before and after laser stripping, the insulation of the wire keeps unchanged.
6. With high speedy for wire processing.
7. High consistency and reliability for a certain kind of wire
8. It supports several operation (or processing) files and procedures setting and saving.
9. The machine can both work individually and applied in an automatic production line.

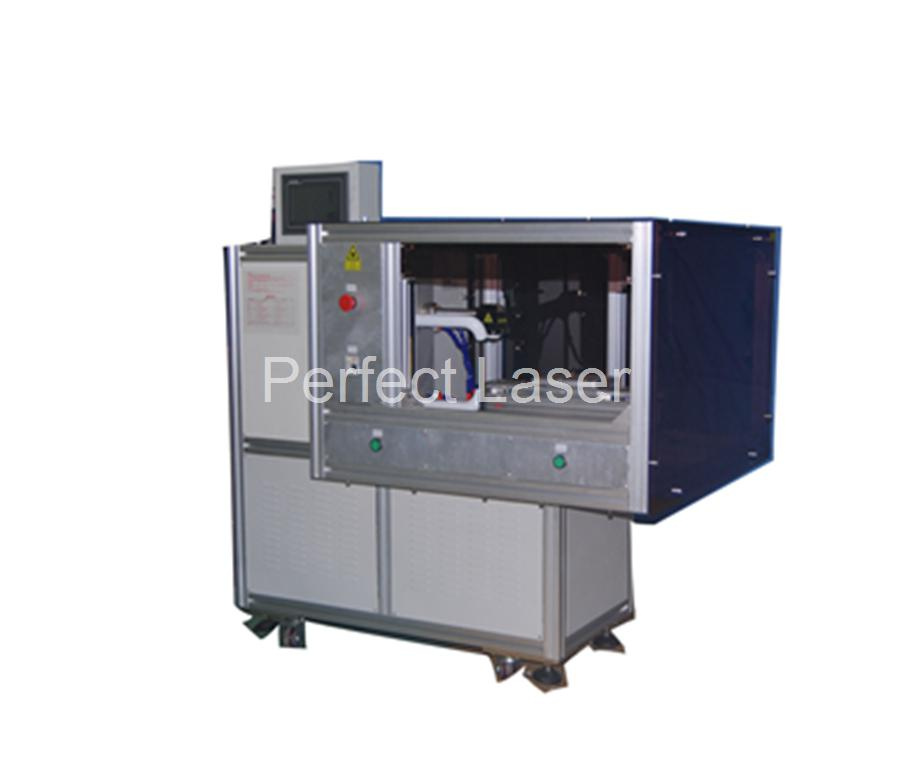

10. Customers can choose vertical or horizontal structure to cater for different needs.
Applications
CO2 Laser Wire Stripping Machine is mainly applied for cutting non-metal materials ,including Polyvinyl chloride ,glass fiber, polyester,
polyester film, fluoride , nylon, polyethylene, silicone resin, and other insulation.
Fiber/YAG laser wire stripping machine is mainly applied for cutting metal materials. It is suitable to process coaxial cable, electronics wire,
antenna, FPC in the field of mobile phones, notebook computers, camcorders, digital cameras and other micro-electronics industry products, especially suitable for thin data-line cables with core diameters smaller than 0.5mm.
| Model | PEDB-C02II -K | PEDB-Y02II -K |
| Laser type | CO2 Laser | Fiber Laser |
| Laser output power | 30W (customizable) | 20W (customizable) |
| Wavelength | 10.6μm | 1064nm |
| Laser energy adjustment | 0~100% | 0~100% |
| Stripping Speed | 0~200mm/s | 0~200mm/s |
| Alignment accuracy | ±0.03mm | ±0.03mm |
| Cooling mode | Air cooling | Air cooling |
| Power supply | 220(110)V/50(60)Hz/1.5kVA | 220(110)V/50(60)Hz/1.5kVA |
| Overall Dimension Horizeontal | 1070×300×410mm (L×W×H) | 1070×300×410mm (L×W×H) |
| Overall Dimension Vertical | 1140×665×115mm (L×W×H) | 1140×665×115mm (L×W×H) |
