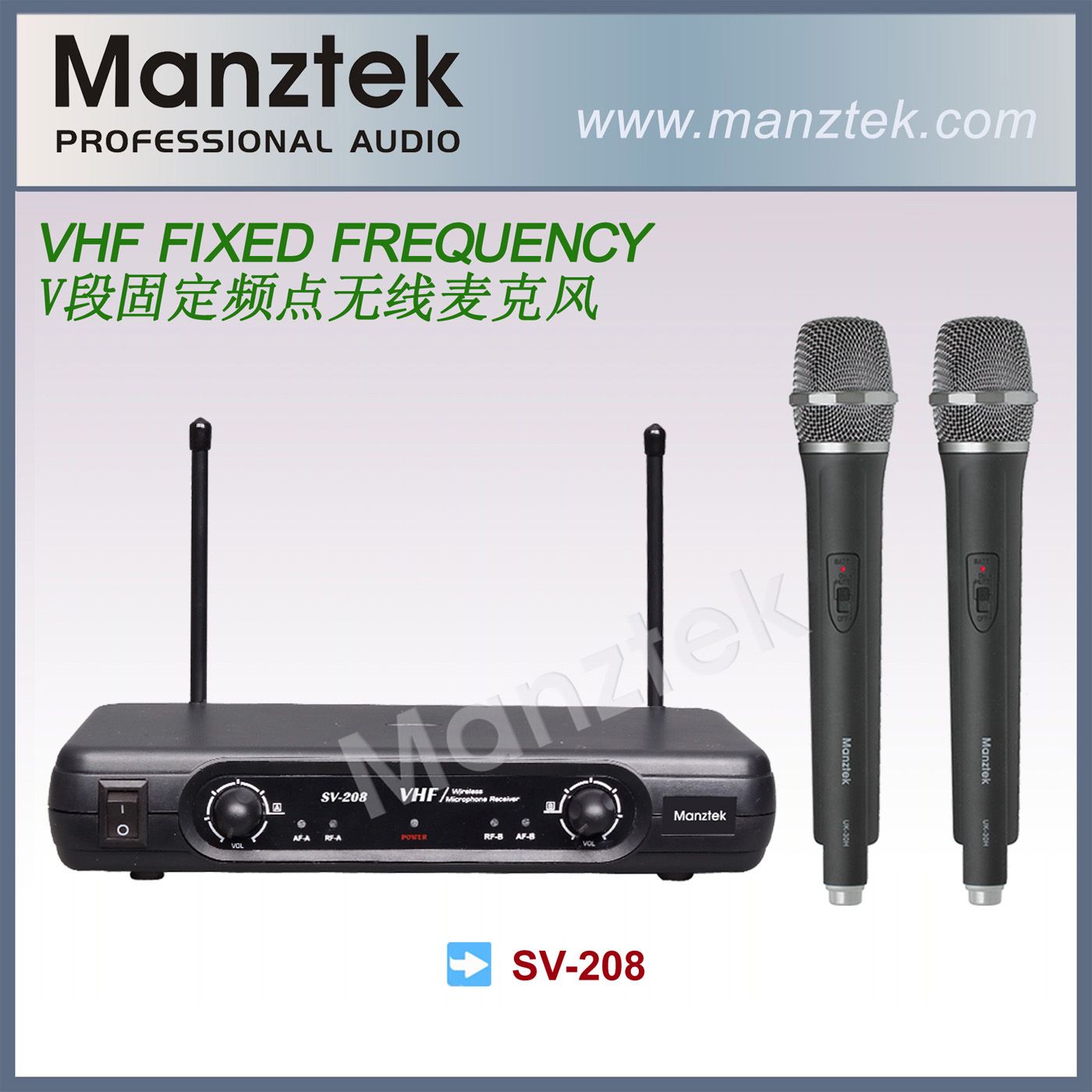

Product Specifications
| Prod Model: |
SV-208 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Microphone Tube Material: |
Plastic |
| Signal Transmission: |
Wireless |
| Application: |
Meeting |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |
Product Description
VHF Band, 8 Frequencies / 4 Groups available
Excellent Quality and Professional Performance
Reliable SMT Production Technique
Balanced Output on Receiver
SYSTEM SPECIFICATION
|
Modulation Mode |
Frequency Modulate |
|
Oscillation |
Crystal Synthesized |
|
Carrier Frequency Range |
VHF 210~280MHz |
|
Channels |
Dual Channels |
|
Frequency response |
75Hz~15kHz ±3dB |
|
Max. Deviation Range |
±50kHz |
|
T.H.D. |
< 1.0% @ 1kHz |
|
S/N |
>90dB |
|
Working Range |
Up to 60m |
|
RF Carrier Stability |
±0.01% (-10C-50C) |
|
Receiver Main Frame Size |
1/2 19" small plastic receiver |
|
Receiver Power Supply |
DC12V, 400mA |
•
HANDHELD / BODY-PACK TRANSMITTER
|
Carrier Frequency Range |
VHF 210~280MHz |
|
Carrier Frequency Power |
< 30mw |
|
Sound Cartridge |
Dynamic (Handheld), Condenser (Body-pack) |
|
Frequency response |
75Hz~15kHz ±3dB |
|
Battery Type |
2×AA size(SV-200H1), 9V(SV-200H2) |
|
Working Time |
Up to 8 hrs |
|
Dimension |
254 x 51 mm (Handheld),
105 x 64 x 19 mm (Body-pack) |
|
Weight |
280 g (Handheld),
90 g (Body-pack) |
We are the leading audio equipment manufacturer in CHINA, has engaged in the line of producing professional wired and wireless microphone systems since 1996. It's also the leading manufacturer in China possessing superb 'IR Series' microphone based on advanced 'Infrared Audio Wireless Transmission Technology', which has led Manztek to become an indispensable supplier of IR wireless microphone system on the market of Asia & U. S. A. since 2007.
Locating her plant of 10, 000 SQMs area with over 200 staff members in Enping China, Manztek chiefly consists of R&D, manufacturing and marketing departments. The company has been so far insisting on precise designing, standardization of production procedures and considerate service, which have enabled Manztek to enjoy compliment from the high-end demanding customers all over the world.
Keeping to principle of 'Never Sacrificing Quality For Quick Profits', the manufacturing of Manztek achieved 'ISO9001: 2000' Certifications in 2004 and most of the products achieved 'CE', 'R&TTE', 'FCC' and 'ROHS' Certifications. For years, Manztek has successfully cooperated with many famous companies all over the world. However 'Keeping Constant and Effective Improvement', will be our firm and perpetual faith.
