Product Specifications
| Prod Model: |
GZD/ZSW Series Vibrating Feeder |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Cement, Construction and Mining |
| Advantage: |
Power Saving |
| Capacity: |
50-700t/H |
| Feature: |
High Efficient, Low Cost |
| Usage: |
Colliery |
| Movement Mode: |
Reciprocating |
| Appearance: |
Open-Type |
| Type: |
Feeding Equipment |
| Capacity(',t/h): |
50-700t/H |
| Max Feeding (',mm): |
300-1000 Mm |
Product Description
Vibrating Feeder, Vibrating Feeding Machine, Feeder, High Efficiency Vibrating Feeder, Feeding Machine, Vibratory feeder, Magnetic Vibrating Feeder, vibrating feeder, feeder, feeding machine/equipment

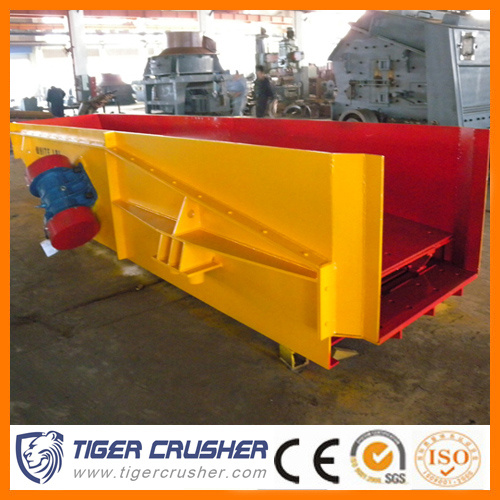

GZD/ZSW Vibrating Feeder
The Vibrating Feeding Machine (Vibratory feeder) is used to transfer the large size materials and granular materials from hopper to receiving device evenly, periodically and continuously. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc. It is an essential part of Stone Making Line and Sand Making Line.
Features
1. Stable vibration, reliable operation and long life;
2. can adjust the exciting force, can be changed and control traffic at any time, convenient adjustment and stability;
3. vibration motor as the source of vibration, low noise, low of power consumption, good of the adjustment performance, no phenomenon of impinge material.
Operating Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.
Technical Parameters
Model
Chute Size
(mm×mm)
Max. Feed Size
(mm)
Eccentric shaft rotation speed
(r/min)
Capacity
(t/h)
Overall Dimension
L×W×H
(mm)
Power
(kw)
Weight
(t)
GZD-250×75
2500×750
300
50-80
2580×1430×600
1.5×2
1.29
GZD-300×90
3000×900
450
80-100
3050×1430×1550
3.0×2
2.96
GZD-370×100
3700×1050
500
100-150
3980×1878×866
3.7×2
3.7
GZD-490×110
4900×1100
580
120-280
5200×1900×950
5.5×2
4
GZD-500×120
5000×1200
600
200-400
5450×2000×900
5.5×2
5.2
ZSW-380×96
3800×960
500
500-720
100-160
3882×1684×1340
11
4.21
ZSW-490×110
4900×1100
580
500-800
120-280
4957×1841×1365
15
5.41
ZSW-590×110
5900×1100
600
500-800
200-350
6000×1841×1365
22
6.05
ZSW-600×130
6000×1300
600
600-850
600-700
6000×2073×1384
30
6.4
ZSW-600×150
6000×1500
1000
600-850
600-700
6000×2231×1384
37
7.05
