Product Specifications
| Prod Model: |
A4-F2C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen: |
4inches |
| Connection: |
4 Wires (Polarity) |
| Communication: |
Duplex Handset |
| Ambient Temperature: |
-10oc~55oc |
Product Description

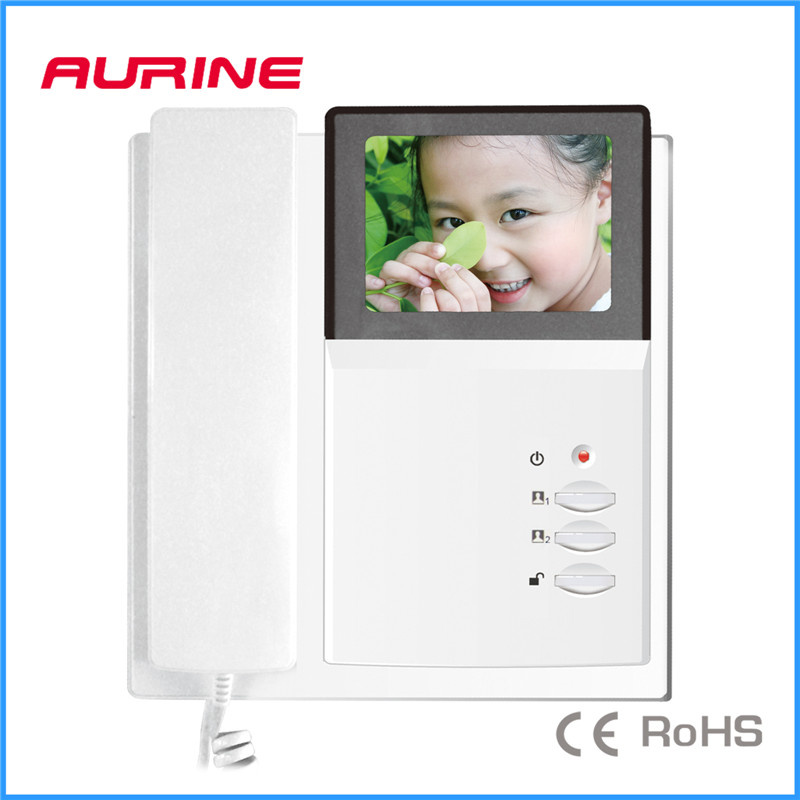

Classical Design Villa Video Intercom Door Phone System
CAMERA: CMOS, flush mount, alluminum alloy casing
Unlock Signal Output: Dry contact
Monitor: 4" TFT, Built-in power supply 1.5m wire plug Europlug
| Specification of 4 wire monitor |
| A4-F2C |
|
|
| Marking instruction:"√"means support;"×"mean unsupport |
| Function | video&intercom | Intercom between master&sub monitor | × |
| Intercome(outdoor camera&indoor monitor) | √ |
| Video | √ |
| Monitor | Monitor (outdoor camera) | √ |
| Storage | Snapshoot | × |
| Intercom | Operation mode | Mechanical button |
| Answer type | Handset |
| Call time | 90S |
| Call time(For sub moonitor) | × |
| Rigning tone | 10S |
| Communication duration | 60S |
| Monitoring | 60S |
| Sound volume adjustment | Factory default |
| Rigning Tone | Rigning tone volume | ≥70dB(A) |
| Number of melodies | 1chimes |
| Rigning tone adjustment | Adjust by knob |
| Frame | Capaicty for snapshots | × |
| mini SD card | × |
| Power supply | Input | AC 100-240V,50/60Hz |
| Power consumption Idling | 1VA |
| energy exhausts of the work | 35VA |
| Screen | Type of screen | 4"COLOR |
| Resolution | 480(h)×234(v) |
| Adjustable brightness | Adjust by knob |
| Adjustable color | Adjust by knob |
| Ajustable contrast | - |
| Environment | Operating temperature | -10~+55ºC |
| Working Humidity | 10%~90% |
| Dimention | mm
(W×H×D) | 192×209.5×72.3(mm) |
| Installation | Install mode | surface mount |
4"color TFT
built-in power supply(AC input)
brightness/chroma/ringing volume adjustment available
1 ringtone
compatible with max. 2 Outdoor Cameras
surface mount
Fujian Aurine Technology Co., Ltd is excellence and specialized in intelligent solutions for vidoe intercom and home security in China. We develop and provide a wide range of intercom systems from basic one to one systems to large complex multidoor station systems with superior stability and internationally used technologies.
We have our own manufactory with over 25000 square meters non-dust workshop, 20 years experience in video intercom production and development, with ISO, CE & RoHS certificated, this is how we keep good quality and competitiveness for global valued customers.
The proximity and knowledge of our reality allow consent to develop intelligence in video intercom, creating features that deliver security, tranquility and convenience to our customers. We treat each client as unique in their needs and develop projects that meet their specific characteristics. We have the largest variety of infrastructure to deploy an intelligent system of door phone; Check out our products!
