Product Specifications
| Prod Model: |
JR400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Length: |
5-20m |
| Thickness: |
1-60mm |
| Max Width: |
4m |
| Working Temperature: |
-40 to 300centigrade |
| Insertion: |
1-3ply Available |
| Surface: |
Smooth,Fabric Impressed |
| Grade: |
100% Virgin Viton Rubber |
| Type: |
Extruded |
| Vulcanized: |
Yes |
| Free Sample: |
Available |
| Usage: |
Automotive |
| Feature: |
Aging Resistant |
| Material: |
Viton Rubber |
| Raw Materials: |
Viton Rubber FKM Rubber |
| Color: |
Black,Red,Grey,Green,etc |
Product Description

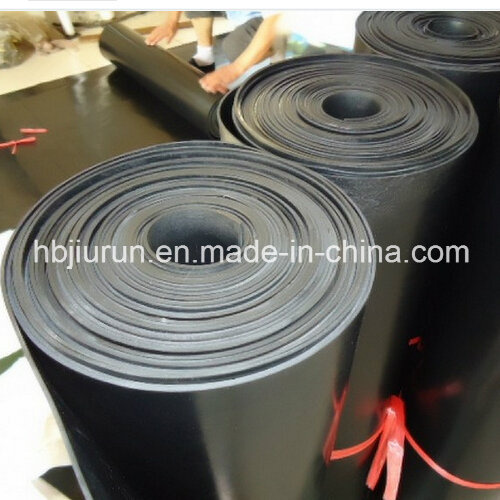

Vulcanized Fluorine Rubber Sheeting with Cloth Inserted
1. Technical details: 1)Tensile Strength: 5-10Mpa
2)Density: 1.9-2.0g/cm3
3)Hardness: 75+/-5 Shore A
4)Elongation: 100-300%
2. Sample is available, and sample time is 3-5 days.
3. Application: Viton rubber is the best performance rubber sheet. It has almost every
Property of the other rubber sheets and the resistance is even better. It can stand 250-
50° C conditions; The best product for resistance of acid/alkali, oil, fire, corrosion and aging.
Apply to punching seals, sealing ring, cylinder lining which are high oil-proof, inflaming
Retarding, high temperature resistance and strong anti-corrosion, they are also used in
Spaceflight & aviation fields.
| VITON | Durometer hardness(shore A+/-5 ) | Tens.stren.(Mpa) | Ultimate elongation(Min percentage) | Special gravity(g/cm3) | Colour |
| F1 | 70° | 7 | 220 | 2.01 | black |
| F2 | 70° | 8.5 | 165 | 1.80 | black |
| F3 | 70° | 5 | 165 | 1.96 | black |
| F4 | 72° | 4 | 165 | 1.99 | black |
| F5 | 75° | 8 | 150 | 1.78 | black |
| F6 | 80° | 4 | 165 | 2.10 | black |
| F7 | 70° | 8.5 | 165 | 1.80 | black |
| F8 | 70° | 5 | 165 | 1.96 | black |
| F9 | 72° | 4 | 165 | 1.99 | black |
| F10 | 75° | 4 | 165 | 1.99 | black |
| F11 | 75° | 8 | 165 | 1.78 | black |
| F12 | 80° | 4 | 150 | 2.10 | black |
| F13 | 75° | 5 | 190 | 2.10 | black |
