Product Specifications
| Prod Model: |
CD-K10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
CD-K10 |
| Dimension: |
104*53*31mm( Excluding Antenna) |
| Battery: |
1500mAh High Capacity Lithium Battery |
| OEM: |
Accept |
| Range: |
5-8km |
| Certification: |
SGS |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Usage: |
Home, Commercial, Army |
| Battery Type: |
Lithium Battery |
| Type: |
Handheld |
| Display: |
Without Display |
| Working Frequency Range: |
VHF Segment |
Product Description

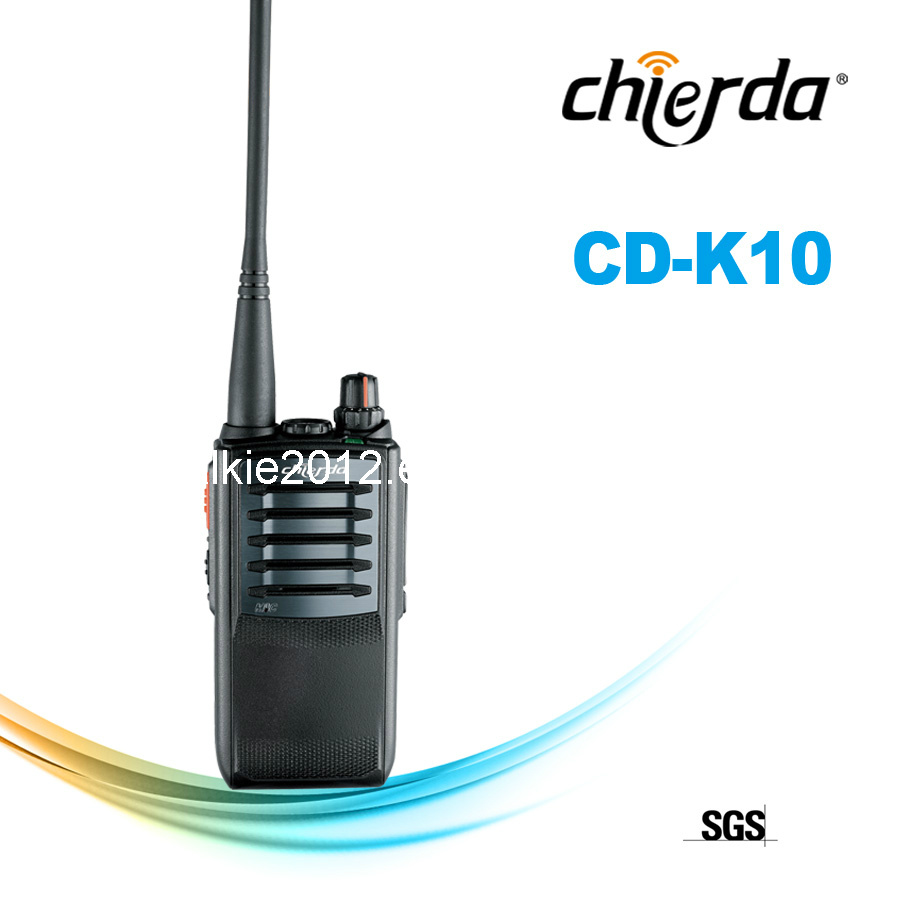

Walkie talkie handheld radio High Flash Light 2 Way Radio (CD-K10)
Long Distance Transceiver Two-Way Radios Walkie Talkie with High Torch Light
1. Company Profile: Quanzhou Chierda Electronic Telecom Co., Ltd., which is in Quanzhou, Fujian, China. With 20 years development, we have produced, developed & marketed intercom, transceiver, two way radio, walkie talkie and related accessories. Now we have rich experienced R&D engineers, and skilled technicians and workers!
Important functions:
CTCSS/DCS
High/Low Power
Monitor Function
Battery Save Mode
Low Battery Warning
Busy Channel Lock
Walkie talkie handheld radio High Flash Light 2 Way Radio (CD-K10)
4. Standard Accessory:
Antenna: 1 Piece
Desktop Charger: 1 Piece
Adapter: 1 Piece, we can supply USA Type/ EU Type/ UK Type/ Australian Type/
Indonesian Type/Taiwan Type etc.
Lithium Battery: 1 Piece, High Capacity, Rechargeable
Belt Clip: 1 Piece
English Manual: 1 Piece
Note:
1. Please contact us at first time for bulk order, larger discount waits for you.
2. Sample time: If with our logo, within 5 days, UHF 400-480MHz is enough at preent, Please contact us now.
3. OEM is offered, we can design the pacing box and logo mark according to your request.
4. Payment term: T/T, Western Union, Paypal
5. Warranty Period: 12 months for body radio; 6 months for accessories.
About us:
We do our best to produce excllent quality products and services. We hope we help you and are glad to become your faithful friends.
Shippment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, and large quantities depend on Customer request.
Note:
1) Please contact us at first time for bulk order, larger discount waits for you
2) Please be responsible for custom tax if your local custom charge some custom tax.
3) OEM service is offered, we can design packing box and logo mark as your requirement.
4) Sample time: If with our logo, within 5 days.
5) MOQ: 2 for sample; 100 for mass production; 500 for OEM
6) Payment term: T/T, Western Union and PayPal
7) Warranty Information: 12 months for body radio; 6 months for accessories
Walkie talkie handheld radio High Flash Light 2 Way Radio (CD-K10)
|
Specification: |
|
Frequency Range |
136-174/400.000~470.000MHz |
|
Rated Voltage |
DC7.4V |
|
Memory Channel |
128 |
|
Channel Spacing |
5.6.25.10.12.5.25.50.100KHz |
|
Frequency Sensitivity |
± 2.5PPM |
|
Antenna Impedance |
50 Ω |
|
Dimension |
117*55*38mm(except antenna) |
|
|
|
Transmitter: |
|
Output Power |
UHF4W/ VHF5W |
|
Current |
≤ 1.6A |
|
Modulation Distortion |
≤ 5%(300-3000HZ) |
|
Maximum Frequency Deviation |
< 5K/< 2.5KHz |
|
CTCSS Frequency Deviation |
0.75KHz ± 50Hz |
|
Remanent Radiation |
≤ 7uW |
|
Modulation Mode |
16Kø F3E/11 Kø F3E |
|
Remanent Modulation |
≤ -35DB |
|
|
|
Receiver: |
|
RF Sensitivity |
≤ 0.25uV/≤ 0.3uV |
|
Silent Sensitivity |
≤ 0.2uV/≤ 0.25uV |
|
Audio Frequency Power |
≥ 500mW |
|
Audio Distoftion |
< 5% |
|
Modulation Receiver Bandwidth |
± 7khz |
|
Spurious Rejection |
≥ 55DB |
|
Selectivity |
≥ 65DB |
|
Intermodulation |
≥ 60DB |
Quanzhou Chierda Electronic Telecom Co., Ltd., the reliable source for professional two-way radio communications. Headquartered in Quanzhou, the homeland of two way radios in China. Since 20 years, we have always produced developed & marketed two way radio and related accessories. Have rich experienced R&D engineers, and skilled technicians and workers! As well as advanced production equipment and accurate/smart inspection & test instrument. We manufacture all the products that we design and sell.
We work with each client to ensure we provide an on-time, cost effective solution that helps your business run more efficiently and ultimately become more profitable. Chierda Communications, "Now You' Re Talkin! "
