Product Specifications
| Prod Model: |
GT-D34 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gt-D34 |
| Product: |
Shrinkage Test Machine |
| Shrinkage Test Machine: |
Wascator Shrinkage Test Machine with CE |
Product Description

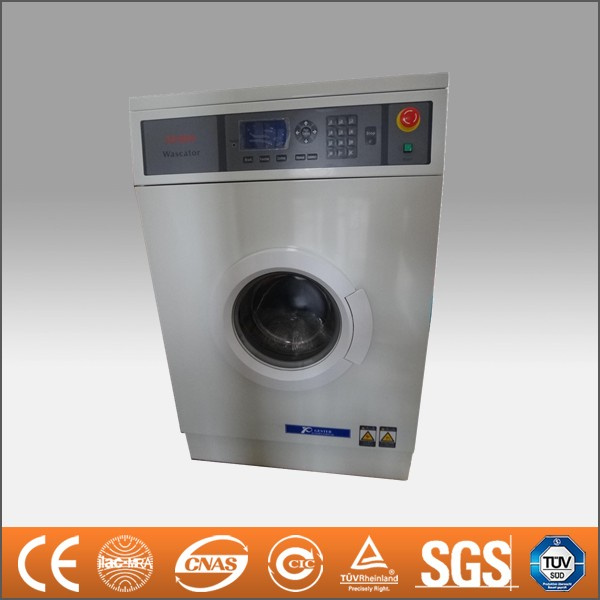

GT-D34 Wascator Automatic Shrinkage Test Machine with CE
Automatic Shrinkage Test Machine, Automatic Shrinkage Testing Equipment
Application
Wascator Automatic Washing Shrinkage Tester. Accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also used for assessing fabric stability, color fastness, finish durability, spirality and pilling to washing.
Features
1. MCU program controller, build-in ten sets of washing program that ISO required, and operator program capability.
2. No need to fix to ground with foot screw, operating stably;
3. Soft link between rotating cage and rack, low vibration and noise;
4. Variable frequency motor, switch smoothly between high speed and low speed, low temperature increment of motor.
5. Blue fluorescence LCD display, test state dynamic icon shows, easier to catch the eye and operation convenience.
6. Non-touch capacitance water level meter to measure water level accuracy and reliable.
Why choose us?
1. Considering different countries plugs, manually change thevoltage from 110V to 220V, insurance indicator.
2. Excellent Aftersale Service:
16 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Pakaging:
Simulation Animatronic Costom Triceratops are covered with air bubble fim before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
| Model | GT-D34 |
| Washing model | front-loading, horizontal tumbling-box type |
| Diameter oftumbling-box | 515+/-5mm |
| Depth oftumbling-box | 335+/-5mm |
| Interval between inner andouter tumbling-box | 28+/-1mm |
| Number of lifter | 3 |
| Height of lifter | 50+/-5mm |
Rotating method
Normal model: clockwise rotating
anticlockwise rotating
Soft model: clockwise rotating
anticlockwise rotating |
12+/-0.1s, pause 3+/-0.1s,
12+/-0.1s, pause 3+/-0.1s
3+/-0.1s, pause 12+/-0.1s,
3+/-0.1s, pause 12+/-0.1s |
| Rotation speed | Washing 52r/min
Spin (500+/-20)r/min |
| Fill water time | < 2min(water in high level 13cm) |
| Drainage duration | < 1min(water in high level 13cm) |
| Heating power | 5.4+/-2%KW |
| Load weight | 5kg |
| Power supply | Ac220V 50Hz 5400W |
| Instrument size | 990x980x1450mm(LxWxH) |
| Weight | 280kg |
| Standards | ISO 6330 ISO 5077 |
