The PET Bottle Flakes Washing Line
Product Description:
PET bottle recycling line is mainly used for crushing, washing, palletizing of PET bottles to realize auto separation for caps and labels: belt conveyer, crusher, steam washer, scrubbing washing unit, rinsing and precipitation washing unit, centrifugal dewatering unit, hot air flow drying unit, and electric control cabinet. Which capability arrange 300-2000KG/h.
Main Advantage:
The PET bottle washing line general consists of bale opener, belt conveyor, roller sorting machine, label removing system, sorting table, crusher, screw feeder, hot washer, friction washer, floating washing tank, dewatering machine, drying system, storage silo and control system, but the final proposal must be prepared according to the user's requirements such as capacity and final usage of PET flakes.
1), parallel bale opener can process the PET bottle packages from 100~600kg, more safety
2), roller sorting machine: separate the impurities out from the PET bottles, such as metal, sand, etc.
3), label removing system: use the gearshape blades to peel off the labels from the bottles body, removing ratio>98%
4), sorting table: detect metal automatically for crusher protection, and separate the PVC bottles out manually after a UV-detect device.
5), Crusher: the blades are made of SKD-II, wearable and long life.
6), Screw feeder: spiral convey and wash the PET flakes by the friction force in the special structure.
7), hot washer is a new model with 11PCS shaft for stirring washing with hot water, the rotary direction of main shaft and the 11PCS shaft are different so that it can have the strong friction washing force for clearing the flakes too much.

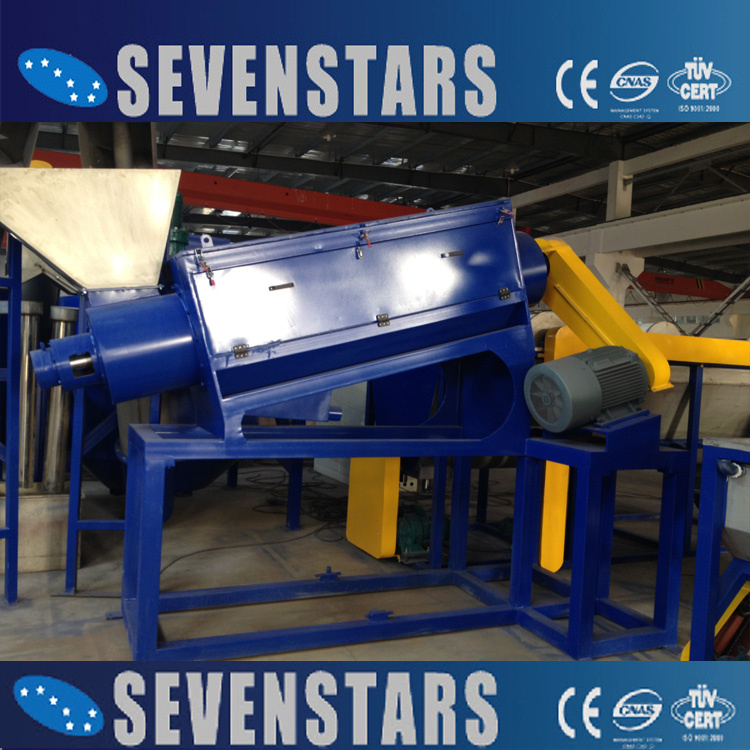

8), friction washing machine: three friction force here for washing during the high speed rotating: rotor and flakes, steel sieve with flakes, flakes and flakes.
9), Float washing tank: keep washing the materials continuously, subside the PET flakes, float and push out the labels,caps and rings.
10), Dewatering machine: dewater the flakes by the rotor with high rotary speed, humidity ratio<2%
11), Drying system: adopt electricity heating and blower for drying the flakes, humidity ratio<1%
12), Control system: use SUZHOU Siemens and China famous electrical parts, as well as ABB inverter for main units.
13), our supply range: 300kg/h to 2000kg/h
Process flow:
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing
Features:
1.Final products has good quality. When processPET bottle, final products humidity below 1%, impurities150ppm,PVC content 150ppm . The whole line capacity between 300kg/h-2000kg/hour
2.Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time
3.World famous brand components applied on the production line- NSK bearing, Siemens contactor, Omron temperature, ABB invertor, Siemens PLC control etc.
Parameter
Model | Capacity | Length of line | Consumption | Work ways | Others |
BDX-PET300 | 300KG | Around 25m | 130kw | Automatic | Customized |
BDX-PET500 | 500KG | Around 50m | 160kw | Automatic | Customized |
BDX-PET1000 | 1000KG | Around 65m | 200kw | Automatic | Customized |
