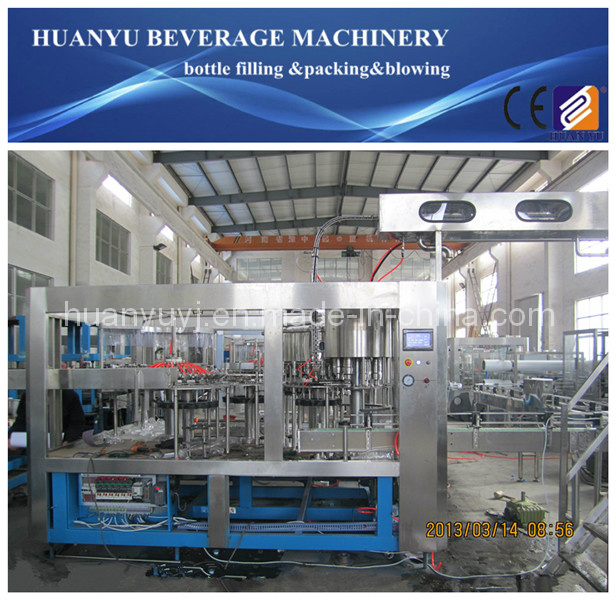

Water Bottling Machine
| Price: |
Negotiableset |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
CGF18-18-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging Type: |
Bottles, Barrel, |
| Automatic Grade: |
Full Automatic |
| Condition: |
New |
| Processing: |
Water Filling Machine |
| Processing Types: |
Non-Carbonated Beverage |
Product Description
Usage:
The line is mainly used for washing, filling sealing non carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on.
Characteristics:
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
|
model |
CGF 16-12-6 |
CGF 16-16-6 |
CGF 18-18-6 |
CGF 24-24-8 |
CGF 32-32-8 |
|
production(500/m/bottle/h) |
3000-4000 |
4000-5000 |
5000-6000 |
8000-10000 |
10000-12000 |
|
filler valves |
12 |
16 |
18 |
24 |
32 |
|
rinser grippers |
16 |
16 |
18 |
24 |
32 |
|
capper header |
6 |
6 |
6 |
8 |
10 |
|
suitable bottle shape |
circular or square |
|
bottle diameter(mm) |
φ50-φ90 |
|
bottle height(mm) |
150-310 |
|
Compressed air pressure(MPa) |
0.3-0.7 |
|
washing medium |
aseptic water |
|
washing water's pressure(MPa) |
0.25 |
|
Total output (KW) |
2.2 |
2.2 |
3 |
4 |
6.2 |
|
oerall dimensions(mm) |
2350x1610x2250 |
2350x1750x2250 |
2480x1960x2250 |
3010x2180x2400 |
4000x2200x2500 |
|
(weight kg) |
2200 |
2500 |
2800 |
3500 |
6000
|
Zhangjiagang Huanyu Beverage Machinery Co., Ltd. is a key production enterprise specializes in producing and researching on foodstuff and beverage facilities. The company has been treating market as the guide, technology as the spigot, quality as the main line, after-sales service as the reliable guarantee, and also has established the complete guarantee system. The company has a team of high quality and professional workers, who have valuable design and manufacturing experience and has imports and exports right of self-operation and acting for domestic goods as well as technical business, it can undertake various kinds of turm-key projects.
Our company main produce filling machine, liquid filling machine, liquid packing machine, bottling machine, bottle packing machine, water filling machine, beverage machine, oil filling machine, beer filling machine, fruit juice filling mahcine, filler, rinser, capper, capping machine, washer, washing machine, bottle washer, bottle washing machine, pop can filling machine, pop can filling line. Pop can capping machine, capping machine, 5 gallon filling machine, 5 gallon washing, filing and capping machine monoblock, 5 gallon filling line
We also exported to more than 30 countries and regions, such as America, England, Russia, Kirgizia, Malaysia, Indonesia, Philippine, Vietnam, Libya, Kenya. Therefore our products are highly recommended by many customers. In the meantime, our company can provide our customers with such service as technology consultation, plane desigh for workshop, installation and testing, technique training.
