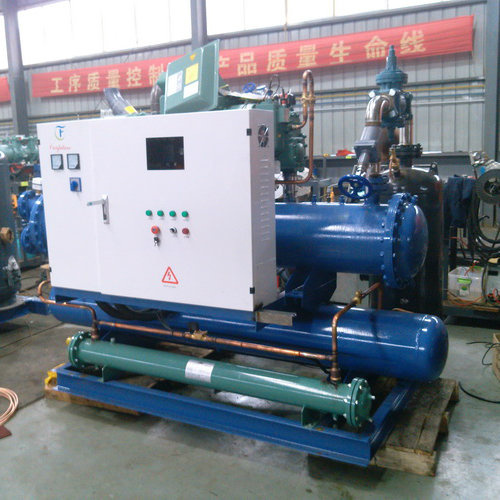

Water Cooled Compressor with PLC Control

Name: Water Cooled Compressor with PLC Control
Brand: china-manufacturer-directory.com
SKU: 701658442
Availability: InStock
Rating: 4.8 (75 reviews)

Price:	US $ 10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Frascold Air cooled piston type condensing unit

General Features
Compact and durable
Wide range of applications
Green refrigerant R404a is used.
High efficiency and low noise external rotor fan motor is used.
High efficiency coper tube aluminum fin conderser.
PTC sensor is used to monitor motor temperature.
Polyester oil pre-filled.

Standard condensing unit configuration
Semi hermatic compressor, air cooled condenser, reservoir(vertical reservoir for under 5HP, horizontal type for above 6HP), crankcase heater, dashboard, filter, sight glass, frozen oil, oil pressure differential controller(except for octagonal unit ), double stage unit has intercooler.

Optional configurations
R134a, R507, R22, etc,
Oil separator,
Check valve for exhaust pipe,
Gas-liquid separator,
CIC spray cooling system,
Energy regulation device,
Exhaust temperature protector,
Extra large reservoir,
Condenser fan speed controller,

Code description

O	B	H	2	M-	A
Ourfuture Refrigeration	Condensing unit type: B-Single stage semi hermatic SB-Double stage semi hermatic	Compressor type: H-Piston type L-Screw type	Compressor nominal power (HP)	Evaporating temp. code: M(Medium & high temp.): 0~-10ºC L(Medium temp.):-10~-30ºC J(Low temp.): -30~-65ºC	Condenser type: W-Water cooled A-Air cooled

Piston type parallel compressor unit standard configuration
Parallel compressor unit assembly		6. Subcooler assembly (applies for single compressor double stage unit)
Sturdy metal chassis		Subcooler
Lifting ring		Subcooling expansion valve, subcooling solenoid valve, subcooling liquid sight glass, subcooling off-valve.
Cushion
		7Gas-liquid separator
Reservoir assembly
Reservoir has 28 bar safety valve		8. Compressor electronic controller and protection assembly.
Reservoir inlet/outlet off-valve		Compressor high/low pressure controller.
Reservoir sight glass		Electronic overcurrent protector.
Pipeline liquid sight glass		Low pressure sensor
Reservoir out filter barrel drier, contains filter		Independent circuit breakers and thermal protector.
Filter drier barrel oulet has shut-off valve.		PLC controller and color touch screen.

Exhaust gas assembly		9. Fluid supply manifold and return manifold assembly.
Oil separator		Fluid supply manifold and return manifold quantity in accordance with product catalog
Oil separator outlet backstop shut-off valve		Manifold adopts hard straight pipe.

4. Oil line assembly		10. Other
Oil reservoir (with oil sight glass)		Compressor pressure gauge
Oil reservoir inlet/outlet off valve		Repair valves are mounted on each manifold
Oil line backstop valve		Insulation materials for suction, economizer and cooling tube
Oil outlet filter		Compressor unit suction off-valve
Oil ball valve
Oil level controller		11. Optional configures
		Refrigerant R22 or R404a
Single compressor assembly.		Reservoir can be vertical or horizontal
Suction and discharge off-valve		Fluid supply manifold shunt and return manifold shunt
Compressor cushion		Cooling type: air cooled, water cooled, evaporative cooled.
Suction filter barrel, contains filter		Other brand compressor and configurations
Oil sight glass
Oil pressure controller (oil pump lubrication)		12. Components that can be added
Crankcase heater		Compressor exhaust muffler
Low temperature single stage compressor cylinder fan.		High pressure sensor
Low temperature single stage compressor liquid spray cooling		Heat recovery device.
		Hot gas defrost function
		Frozen oil

Medium & high temperature piston type parallel unit
Refrigeration amount and power are set based on condensing temperature of 35ºC, used for evaporation condensation.

(OBBH) Rack model				2-20M	2-30M	2-40M	2-50M	2-60M	2-80M	2-100M
Evaporating temperature				10ºC-15ºC
Refrigerant				R404A
Power				380V/50HZ
Compressor	Type			Semi hermatic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			2	2	2	2	2	2	2
Refrigerating capacity & power	Evap. Temp. 0ºC		QoW	62800	87000	103000	133600	153400	222800	271200
	Evap. Temp. 0ºC		PeKW	15.14	21.18	24.92	33.00	38.34	56.8	70.6
	Evap. Temp. -5ºC		QoW	51600	71400	84800	111000	127400	185400	226000
	Evap. Temp. -5ºC		PeKW	14.34	20.02	23.66	31.32	36.32	54.00	67.20
	Evap. Temp. -10ºC		QoW	42000	58000	69200	91400	105000	153000	186600
	Evap. Temp. -10ºC		PeKW	13.36	18.58	22.08	29.32	33.94	50.6	63.00
Connector	Air inletmm			45	45	57	76	76	76	76
	Liquid outletmm			19	22	22	28	35	42	42
	Air outletmm			28	35	35	42	42	54	76
	Liquid inletmm			22	22	28	28	35	42	42
Overall dimension		L(mm)		1442	1442	1442	1550	1550	1550	1600
		W(mm)		1100	1100	1100	1100	1100	1100	1100
		H(mm)		1800	1800	1800	1800	1800	1800	1800

(OBBH) Rack model				3-30M	3-45M	3-60M	3-75M	3-90M	3-120M	3-150M
Evaporating temperature				10ºC-15ºC
Refrigerant				R404A
Power				380V/50HZ
Compressor	Type			Semi hermatic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			3	3	3	3	3	3	3
Refrigerating capacity & power	Evap. Temp. 0ºC		QoW	94200	130500	154500	200400	230100	334200	406800
	Evap. Temp. 0ºC		PeKW	22.71	31.77	37.38	49.50	57.51	85.20	105.9
	Evap. Temp. -5ºC		QoW	77400	107100	127200	166500	191100	278100	339000
	Evap. Temp. -5ºC		PeKW	21.51	30.03	35.49	46.98	54.48	81.00	100.8
	Evap. Temp. -10ºC		QoW	63000	87000	103800	137100	157500	229500	279900
	Evap. Temp. -10ºC		PeKW	20.04	27.87	33.12	43.98	50.91	75.9	94.5
Connector	Air inletmm			57	57	76	76	89	89	108
	Liquid outletmm			22	28	28	35	42	54	54
	Air outletmm			35	45	54	54	76	76	76
	Liquid inletmm			28	28	35	42	42	54	54
Overall dimension		L(mm)		1972	1972	1972	2150	2150	2150	2150
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	1800	1800	1800

Medium & high temperature piston type parallel unit

Refrigeration amount and power are set based on condensing temperature of 35ºC, used for evaporation condensation.

Rack model				4-40M	4-60M	4-80M	4-100M	4-120M	4-160M	4-200M
Evaporating temperature				10ºC-15ºC
Refrigerant				R404A
Power				380V/50HZ
Compressor	Type			Semi hermatic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			4	4	4	4	4	4	4
Refrigerating capacity & power	Evap. Temp. 0ºC		QoW	125600	174000	206000	267200	306800	445600	542400
	Evap. Temp. 0ºC		PeKW	30.28	42.36	49.84	66	76.68	113.6	141.2
	Evap. Temp. -5ºC		QoW	103200	142800	169600	222000	254800	370800	452000
	Evap. Temp. -5ºC		PeKW	28.68	40.04	47.32	62.64	72.64	108	134.4
	Evap. Temp. -10ºC		QoW	84000	116000	138400	182800	210000	306000	373200
	Evap. Temp. -10ºC		PeKW	26.72	37.16	44.16	58.64	67.88	101.2	126
Connector	Air inletmm			57	76	76	108	108	108	125
	Liquid outletmm			28	35	35	45	45	45	57
	Air outletmm			45	57	76	76	76	76	76
	Liquid inletmm			28	35	45	45	57	57	76
Overall dimension		L(mm)		2502	2502	2502	2850	2850	2850	2850
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	1800	1800	1800

(OBBH) Rack model				5-50M	5-75M	5-100M	5-125M	5-150M	5-200M	5-250M
Evaporating temperature				10ºC-15ºC
Refrigerant				R404A
Power				380V/50HZ
Compressor	Type			Semi hermatic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			5	5	5	5	5	5	5
Refrigerating capacity & power	Evap. Temp. 0ºC		QoW	157000	217500	257500	334000	383500	557000	678000
	Evap. Temp. 0ºC		PeKW	37.85	52.59	62.3	82.5	95.85	142	176.5
	Evap. Temp. -5ºC		QoW	129000	178500	212000	277500	318500	463500	565000
	Evap. Temp. -5ºC		PeKW	35.85	50.05	59.15	78.3	90.8	135	168
	Evap. Temp. -10ºC		QoW	105000	145000	173000	228500	262500	382500	466500
	Evap. Temp. -10ºC		PeKW	33.4	46.45	55.2	73.3	84.85	126.5	157.5
Connector	Air inletmm			76	76	89	108	108	125	2*108
	Liquid outletmm			28	35	45	45	45	57	76
	Air outletmm			57	57	76	76	76	76	89
	Liquid inletmm			35	45	57	57	57	76	76
Overall dimension		L(mm)		3102	3102	3102	3450	3450	3450	3450
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	180	1800	1800
(OBBH)				5-50M	5-75M	5-100M	5-125M	5-150M	5-200M	5-250M
				10ºC-15ºC

Medium & high temperature piston type parallel unit
Refrigeration amount and power are set based on condensing temperature of 35ºC, used for evaporation condensation.

(OBBH) Rack model				6-60M	6-90M	6-120M	6-150M	6-180M	6-240M	6-300M
Evaporating temperature				10ºC-15ºC
Refrigerant				R404A
Power				380V/50HZ
Compressor	Type			Semi hermatic piston type
	Model			4VES10	4PES15	4NES20	4HE25	4GE30	6GE40	6FE50
	Qty			6	6	6	6	6	6	6
Refrigerating capacity & power	Evap. Temp. 0ºC		QoW	188400	261000	309000	400800	460200	668400	813600
	Evap. Temp. 0ºC		PeKW	45.42	63.54	74.76	99.00	115.02	170.4	211.8
	Evap. Temp. -5ºC		QoW	154800	214200	254400	333000	382200	556200	678000
	Evap. Temp. -5ºC		PeKW	43.02	60.06	70.98	93.96	108.96	162	201.6
	Evap. Temp. -10ºC		QoW	126000	174000	207600	274200	315000	459000	559800
	Evap. Temp. -10ºC		PeKW	40.08	55.74	66.24	87.96	101.82	151.8	189
Connector	Air inletmm			76	76	76	89	108	2*108	2*125
	Liquid outletmm			35	45	45	45	57	76	76
	Air outletmm			57	76	76	76	89	89	108
	Liquid inletmm			45	57	57	57	76	76	76
Overall dimension		L(mm)		3632	3632	3632	4050	4050	4050	4050
		W(mm)		1100	1100	1100	1150	1150	1150	1150
		H(mm)		1800	1800	1800	1800	1800	1800	1800

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compressor Brand:	Frascold
Refrigerant:	R404A, R22
Voltage:	380V/3p/50Hz, 220V/1p/60Hz
Use:	Cold Room, Blast Freezer, Cold Chain Logistic, Pha
Evaporating Temperature:	10~-15 Deg C, -15~-35 Deg C, -30~-50 Deg C
Condensing Temperature:	35 Deg C, 40 Deg C

Our company produces screw type condensing units, screw type multiple compressor parallel units, reciprocating condensing units, reciprocating parallel compressor racks, scroll type compressor box type condensing unit and scroll type parallel compressor units with best quality and favorable price.

Our compressor units/racks can be used in cold room storage, blast freezer, fast frozen tunnel, retail refrigeration, cold chain logistics, chemical and pharmarcy area, fishery and shipping industry, etc.

Our basic products include the following:

1. Single-stage reciprocating type parallel compressor racks(20HP~350HP) @7.5~45oC Tss.

2.2-stage compressor reciprocating type parallel units(16~180HP) @-25~-65oC Tss.

3. Single-stage screw type parallel compressor racks(80~600HP) @5~45oC Tss.

4.2-stage compressor screw type parallel compressor units(100~600HP) @-30~-65oC Tss.

5. Danfoss scroll type compressor box type condensing units and parallel compressor racks.

6. R744(CO2) cascade system compressor units.

Refrigerant can be R744(CO2), R404A, R507, R407C, R22, etc.

Our compressor racks and condensing units are equipped with world famous brand high quality components, we are distributor of Bitzer, Carlyle, Fusheng, Bock, OEM factory of Danfoss. Key controllers and valves are Danfoss brand, contactors are Siemens brand.

We also develop and program our own PLC control system, it can automatically control the running compressor quantity according to refrigeration need so that the system can save more energy and can provide 30% more use life than single compressor condensing units. With PLC auto control graphical interface, customer can operate with read the running status, data, parameter and error alarms easily. Optional remote control communication port is also provided, so that customer can monitor in their office.

We focus on high efficiency daily mangement and QC to guarantee stable quality. By following ISO9001: 2008, we have strict tracking system of each order, all welding are proformed with argon charged in the system to prevent welding waste going into the system. All condensers are delivered with high pressure gas charged when they delivered. Each final compressor rack will go through no-load test before packaging.

We welcome friends from all over the world, together let's serve the world with more environmental, efficient and cost effective refrigeration unit.
