Product Specifications
| Prod Model: |
CW-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Water-Cooled |
| Certification: |
CE |
| Condition: |
New |
| Selected Voltage: |
110V/220V,50Hz/60Hz |
| Application Fields: |
Industrial Cooling |
| Application Machine: |
Industrial Cooling |
Product Description

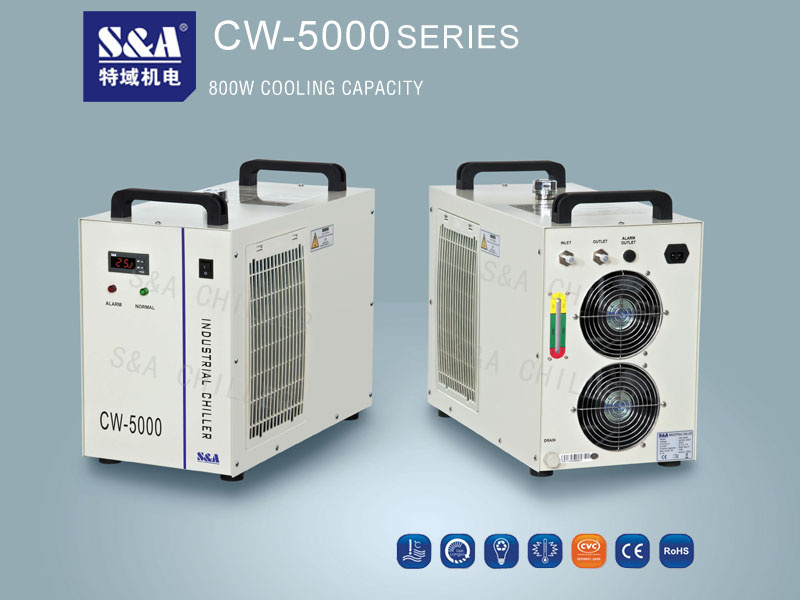

Water cooling system for laser process S&A CW-5000
CW-5000 water cooling system developed and produced by S&A company of China, it contains water tank, circulating pump, compressor, condenser, evaporator, fan and control parts.CW-5000 is suitable for cooling below 100W laser process.
S&A CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity and the temperature control in ±0.3ºC precision. It's mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted.
CW-5000 water cooler parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.051KW/0.1KW; Tank capacity:6L
Max. lift:10M-25M; Max. flow: 10L/min- 16L/min
N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)
CONTACT S&A
TE:+86-20-89301885
FAX:+86-20-84309967
Website: http://www.teyuchiller.com
Guangzhou Teyu Electromechanical Co., Ltd. is a dedicated professional industrial circulating cooling machines manufacturer in China with our own brand S&A having long enjoyed great fame both at home and aboard.
Since 2003, with a highly qualified and fully committed team of R&D and management, we are focusing on chiller design, development, production as well as after-sales service. All of our product have acquired the CE Certification, of strictly quality-inspected and granted for exit-works delivery, approaching to inernational standard with steady running function and the best choice for chilled needed factories.
Our product are with strong applicability used in laser equipment, CNC machine, PCB system, advertising facilities, printing machine and marking equipment, welding machine and medical apparatus and instruments, etc. Product are exported to the USA, Canada, Brazil, France, Italy, Germany, South Africa, Dubai, Singapore, Taiwan area, etc. We have cooperated with over 300 domestic and foreign manufacturers.
We always keep providing customers first class quality and satisfied services. It is our earnest intention to establish long-term cooperation with you and becomes your closest partner at the same time.
