Water Filter High Volume and High Flow Bag Filter

Product Specifications

Prod Model:	YL-2-400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	High Filtration Precision
Place Of Origin:	Jiangsu, China (Mainland)
Brand Name:	Yld or OEM
Model Number:	Yl-2-400
Name:	Duplex Bag Filter
Material:	Stainless Steel Housing
Flow Rate:	50-80t/H
Inlet And Outlet Diameter:	Dn80
Filtration:	0.5 Micron
Power Supply:	Can Be Customized
Usage:	Liquid Filtration
Motive Force:	Pressure
Certification:	CE
Type:	Niphos Water Filter

Product Description

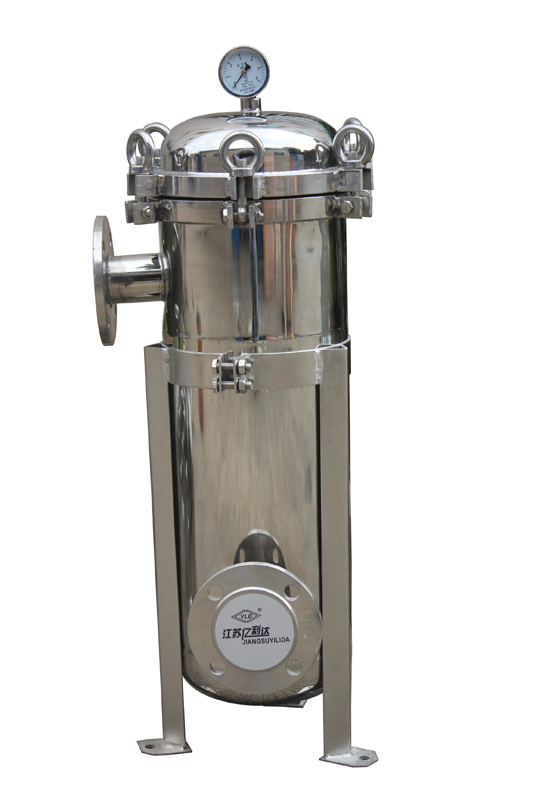

water filter housing stainless steel high volume and high flow bag type filter

Bag filter is a widely used for liquid filtration,it can remove the particles of different size
from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow
rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing
from the inlet,which may placed in the side or on the top,and then flow into the filter bag
which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the
liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are
trapped in the bag,the filtration process is complete.When you replace or clean the bag,
just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.



Product introduction
Ultrafilter (also known as security filters)has a cylinder housing generally made of stainless steel and uses tubular filter elements internally including PP meltblown, welding lines, folded filter element, titanium filter element and activated carbon filter element, etc. Which can be selected depending on the filter media and the design process in order to achieve the quality requirements of the outflow. The machine body can also be quick fitting type for easy replacement and cleaning of the filter element.
Ultrafilter is used to remove solid impurities, powder and other impurities in the fluid. It is resistant to high pressure: Its filter element can be easily replaced; It has large capacity and occupies a small land area and better filter effects, so it is widely used for pretreatment and terminal filtration in the electronics industry, pharmaceutical industry, household drinking water as well as food and beverage, wine, beer and mineral water industries.



Product features
1. The filtration precision is high, so it can be used for filtering particles of more than 0.2um at a time.
2. No filtering solution, adsorbent and catalyst can be adsorbed and damaged and no original components of the working medium can be changed.
3. It has good leakproofness and compact structure, so it is not easy to be damaged and is suitable for the production site with poor working conditions and no maintenance cost is needed.
4. Easy disassembly and scientific and diversified filter structure, satisfying a variety of filtration requirements. Automate production will be achieved through networking with PC.

Stainless steel bag filter housing:

1) Good quality with good service;
2) Good design;
3) High flow rate and easy operation.
4) Filter bag can be replaced easily;
5) High filtration precision;




Scope of application
Pharmaceutical industry: The filtration of liquid medicine, serum, traditional Chinese medicine, water injection, biological products, infusion solutions and various gases.
Food industry: The filtration of liquid, including drinks, mineral water, purified water, beer, wine, cooking oil, rice wine, white spirit, fruit wine, sugar and pulp, and compressed air and gases.





Technical parameters:



Model	Flow rate (T/H)	inlet and outlet diameter	Quantity of the bags	Filter size	Bag Specifications	Filtration Area (M2)
YL-1-219	20	DN50mm	1	219*410	180*410	0.23
YL-2-219	40	DN65mm	1	219*810	180*410	0.46
YL-2-400	50-80	DN80mm	2	400*810	180*810	0.92
YL-2-500	120	DN100mm	3	500*810	180*810	1.38
YL-2-550	140	DN100mm	4	5500*810	180*810	1.8
YL-2-600	150	DN125mm	4	600*810	180*810	1.8
YL-2-650	160	DN125mm	5	650*810	180*810	1.84
YL-2-750	200	DN150mm	6	750*810	180*810	2.3
YL-2-800	220	DN100mm	8	800*810	180*810	2.5
YL-2-850	240	DN200mm	9	850*810	180*810	2.76

Filter Bag Housings are compact, space saving and designed for optimum filtration performance. The range provides filtration solutions for a broad variety of fluid applications in the process industry using bag filter technology. Filter Bag Housings are manufactured in accordance to meet the high demands of the process industries.

They can be used in processing chemicals, petroleum derivatives, coolants, cutting oils, cleaning fluids, waxes, paints, inks, resins, varnishes, lacquers, pharmaceuticals, plasticisers, plastisols, food stuffs, vegetable oils and edible oils. They are particularly useful for filtering large volumes of high viscosity liquids.

Equipment Connections can be NPT, BSP and ASA screwed or flanged in the different configurations to suit the customer's requirements. All bag filters vessels are compatible with all standard snap ring filter bags as well as our other custom designed bags. These can be supplied in single or multiple bags in a vessel assembly.
