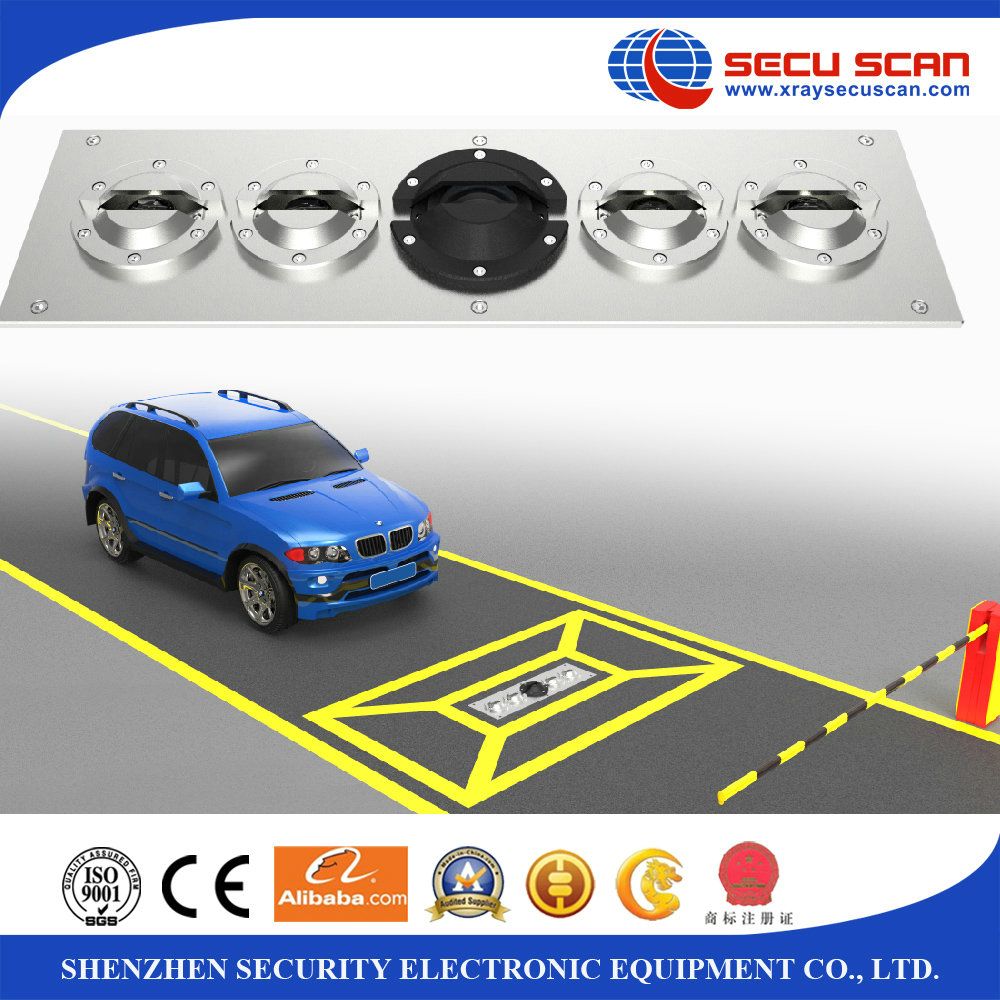

Waterproof under vehicle monitoring system with high resolution image
Model: AT3300
Features:
1.Multi entrance management model, management, and statistics of entering and exiting vehicles
2.Auto digital line scan, high-resolution undercarriage imaging.
3.High automation, easy to be used
4.Applicable to variety of vehicles, wide vision.
5.Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6.Undercarriage images can be stored, retrieved, searched or compared with other images.
7.Variety of image processing methods: enlarge, stretching and cutting.
-----------------------------------------------------------------------------------------------------------------------------------------------
Embedded scanning parts:
1.Camera: Sensor: line scans CCD
2.Resolution: 5000*2048 pixels
3.Power Supply: 24VDC, 3A
4.Illumination: LED, Power Supply: 24VDC,150W
5.Size: 1200mm x 350mm
6.Operating Temperature Range: -20 degree to +70 degree
-----------------------------------------------------------------------------------------------------------------------------------------------
System host:
1.Brand: Grantech (UFO6377H-SP1-953)
2.CPU: Intel® Core(TM) 2 Duo CPU
[email protected] or higher
3.Memory:2G( optional 4G)
4.Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine
5.Hard Disk:SATA2 Hard Disk 500G
6.Dual LAN (At least one Intel Gigabit)
7.USB2.0 (Up to 4 pieces)
8.Monitor: 22inch LCD, resolution up to 1920*1080
9.Scene Video Record: 4 channel, Compression algorithm of scene video: H264
-----------------------------------------------------------------------------------------------------------------------------------------------
Controller:
1.Input: 2 channels induction coil
2.Output: 1 Channel switch type 12VDC
3.Communication port: RS485, Ethernet(Optional)
4.Operating Temperature: -10ºC to 55ºC
-----------------------------------------------------------------------------------------------------------------------------------------------
Options:
1. ALPR-Automatic License Plate Recognition software : via IP Camera captures license plate, ALPR software processing and automatically presents license plate on screen
2.Driver Face Capture Camera : Provides picture of driver and/or view of vehicle. Image is presented on screen along with under vehicle images.
3.Screen Video display: displays live video feed from overview camera on operator terminal screen.
4.To connect anti-collision system, barrier, etc
5.To compatibly packing management solution
-----------------------------------------------------------------------------------------------------------------------------------------------
Specifications of Number Plate Reading System :
1.Pickup device: 1/4 inch CCD image sensor
2.System of signal: PAL
3.Horizontal Resolution: 600TV Line
4.Min Illumination:0.5 lux/f1.2
5.Optical Zoom:27x
6.Digital Zoom: 10x
7.Backlight compensation:Auto
8.AGC:Auto
9.White balance:Auto
10.Electronic Shutter: 1/50-1/100000 sec
11.S/N Ratio :48db
-----------------------------------------------------------------------------------------------------------------------------------------------
Our service:
1.Operation training program for end users
2.Free of factory training for engineer from agents or end user
3.One year free of spare parts
4.Life time technical support
5.All products purchased in our company are guaranteed to keep in good repair for one year.
6.If quality problems happen in guarantee period, our company will maintain for free.
7.Additionally, our company provides technical support and fittings for life.
8.After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
9.If you are caught in some problems when using our products, welcome to contact us at any time.
