Product Specifications
Prod Model: |
Wave Solder Machine |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Grey |
Type: |
ARC Welders |
Current: |
Alternating Current |
Product Description

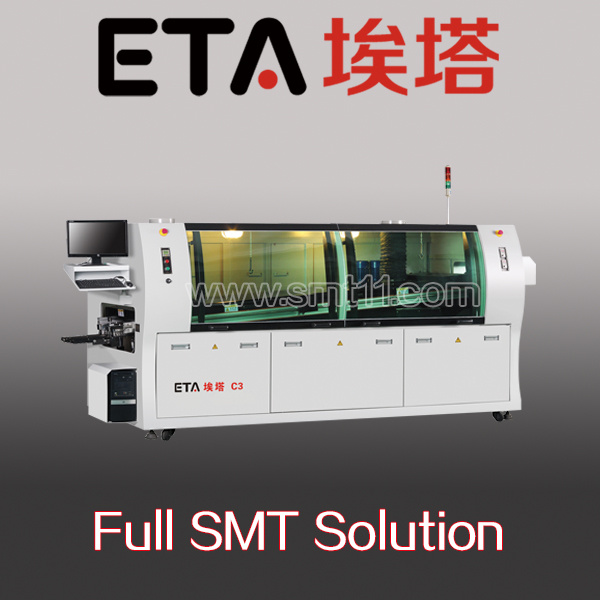

Wave Solder machine for plug-in components C2
Main product: Lead Free Wave Soldering, Wave Solder, SMT Wave Solder, wave soldering, wave solder, SMT wave soldering, pb-free wave soldering, SMT wave soldering, Stencil Printer, screen printer

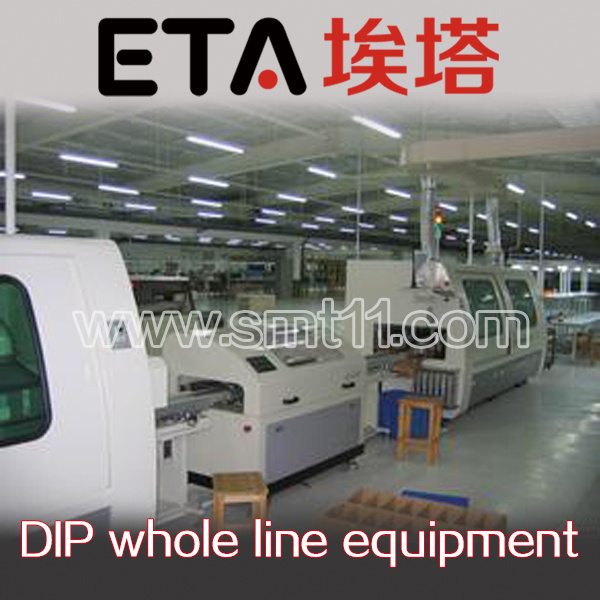

Wave soldering
Brief: Lead-free wave soldering machine
Control System
> PC control system with windows based control software.
Preheaters System- Patented Heating Plate
>3independent heating modules (overall length: 1.6m), each consists of patented
>Preheating zone with heating tube ensures the best flux activation temperature and activation time.
Distortion-free Conveyor System
>Chain type entrance guides.
>Enhanced titanium finger conveyor is of high elasticity and is distortion-free.
>The conveyor system is steady and safe with adjustable speed (100-2000mm/min).
>Automated finger cleaner ensures long finger life.
Spray Fluxer
>SMC cylinder(Stepper motor is option) driven spray fluxer for computer controlled model
>Specially designed air knife can prevent the flux from entering the preheating zone causing fire and
Remove excessive flux.
>Flux and air flow can be adjusted via the control panel.
Brand New Lead-free Solder Pot
>Brand new lead-free dual wave solder pot, temperature difference between the two waves is less than 30 degree.
>Minimized solder oxidation, automated solder dross collection(patent technology).
>Optimized solderability for lead-free process.
Cooling System
>Standard Turbine blower.
ETA Lead Free Wave soldering machine Specifications |
Specifications | C4 | C3 | C2 | C1 |
Dimension:L*W*H(mm) | 4200 X 1250 X 1500 | 3600 X 1250 X 1500 | 2100 X 900 X 1500 | 2000 X 1250 X 1500 |
Weight(kg) | Approx.2100kg | Approx.1800kg | Approx.1500kg | Approx.900kg |
Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
Startup Power (kw) | 28kw | 24kw | 18kw | 15kw |
Operation Power Consumption | 10kw | 8kw | 6kw | 4kw |
Control System | PLC | PLC | PLC | PLC |
Spray System |
|
Transmission Methed | Air cylinder/step motor(option) |
Spray Pressure | 0.25Mpa--0.4Mpa |
Flux flow | 10--100ml/min |
Exhaust Ducting Diameter | Φ200mm |
Exhaust Capacity | 25m3/min |
Preheating System |
|
Preheating Mode | IR tube/Hot air is option |
Control Mode | PID + SSR |
Preheating Zone Number | 4 | 3 | 2 | 1 |
Preheating Length | 1800mm | 1600mm | 700mm | 350mm |
Preheating Temp. | (Room Temperature)-250 degree |
Warm-up Time(min) | Approx.15min (setting 150 degree) |
Conveyor System |
|
PCB Width (L X W)(mm) | Min:80x60mm; Max:300x300mm | Min:80x60mm; Max:300x300mm | Min:80x60mm; Max:200x300mm | Min:80x60mm; Max:200x300mm |
Conveyor Speed(mm/min) | 0-2000 |
Conveyor Height (mm) | 750+/-20 |
Finger | Double hook claw (Standard) |
Conveyor width control | Manually |
Conveyor Angle | 4~7degree |
Soldering System |
|
Solder Pot style | Mechanical Motor drive |
Solder Pot Material | Full Titanium (Standard FT) |
solder pot temperature | 300 degree |
solder pot capacity | Lead-free 400kg | Lead-free 300kg | Lead-free 200kg | Lead-free 100kg |
Other |
|
finger cleaning system | brush |
Configuration
ETA wave soldering machine configuration list |
Item | Name | Brand | Note | Item | Name | Brand | Note |
1 | Computer | Lenovo | China | 11 | Spray nozzle | Kuroda | Japan |
2 | Display | Lenovo | China | 12 | Light button | Schenider | France |
3 | PLC | Siemens | Germany | 13 | buzzer | Koino | Korea |
4 | Solid relay | Schenider/ | France | 14 | Frequency converter | Mitsubishi / | Japan |
KETE | Korea | Delta | Taiwan |
5 | Relay base | Schenider/ | France | 15 | relay | Schenider/ | France |
Omron | Japan | Omron | Japan |
6 | Contactor | Schenider | France | 16 | fuse | DELIXI | China |
7 | Wire | Jinglongyu | China | 17 | Button without lamp | Schenider | France |
8 | Air switch | DELIXI | China | 18 | Emergency button | Schenider | France |
9 | Power supply | MW | Taiwan | 19 | UPS | SANTAK | USA |
10 | Light switch | Yamatake | Japan | 20 | Three-color light | Dahong | China |
|
Item | Name | Brand | Note | Item | Name | Brand | Note |
1 | Transmission motor | Panasonic | Japan | 9 | High temp. wire | Hotset | Germany |
2 | High temp. motor | Sanyue | Taiwan | 10 | Therma insulatiol cotton | RockWool | Germany |
3 | Thermal fuse | Hotset | Germany | 11 | Cooling fan | Sanyue | Taiwan |
4 | High temp. Air wheel | Sanyue | Taiwan | 12 | Fan | Jianzhun | Taiwan |
5 | guideway | ETA | China | 13 |
|
|
|
6 | Chain | KMC | Taiwan | 14 | High Temp. Adhesive tape | Xinyue | Japan |
7 | Chiancrow | KT | Taiwan | 15 | Gear box | Panasonic | Japan |
8 | Therma insulatiol cotton | RockWool | Germany | 16 | Magnetic valve | AIRTAC | Taiwan |
