Product Specifications
| Prod Model: |
CATOS 1201 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Base Plate Material: |
Durostone ESD Sheet |
| Top Hat Material: |
Fr4 Glass Epoxy Sheet |
| Application: |
Wave Soldering Process |
Product Description
Name: Wave solder pallets

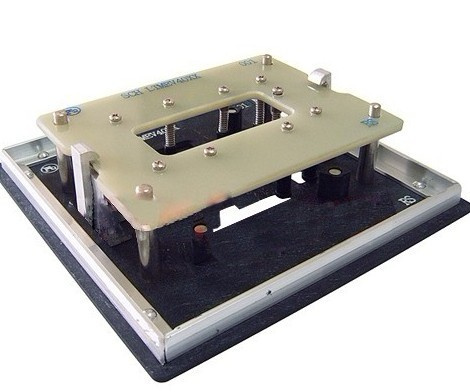

Type: CATOS-Pallet-01
Pallet Material: Durostone anti-static sheet
Top Hat Material: FR-4 Epoxy Sheet
Description:
CATOS Engineering specializes in selective wave solder pallets. Designed by engineers with extensive wave solder experience, our pallets enable customers to automate the soldering of through-hole components on complex electronic assemblies.
The pallets only expose areas of the assembly that require soldering. All other areas are protected, eliminating component damage and expensive, low quality process steps. Made of ESD-safe composite materials, these pallets are designed and manufactured to optimize both the solder ability of your circuit boards and your entire process flow.
BENEFITS
Cost Effective
1) Eliminate hand soldering processes
2) Eliminate high-defect, surface mount glue operations
3) Eliminate temporary solder masking operations
4) Reduce assembly cycle time
Improves Quality
1) Improve component alignment and soldering
2) Improved solder fill and quality
3) Eliminates flooding problems
Increases your flexibility
1) Eliminates board size / panelization issues
2) Standardize on conveyor width
3) Effectively process complex, double-sided surface mount assemblies
Easy to Use
1) Designed by engineers with extensive wave solder experience
2) Optimized for easy profiling
3) Supports rapid set-up using our ergonomically designed fasteners
4) Optimized for best soldering
5) Wave solder automation to solder through-hole components on complex electronic assemblies.
And we can design pallet for customers, if possible, please kindly advise me below information to design pallets as your requested.
A. CAD machined drawing or 3D drawings (such as STP, STEP, IGS, IGES etc. ) of wave solder pallets
B. Gerber file of PCB board(Bare)+Sample PCBA Board(Loaded)
Sincerely looking forward to cooperation with you at competitive price and reliable quality.
Shenzhen Eviapo Technology Co., Ltd. is one of the most professional manufacturers which mainly produce and design of heat-resisting and antistatic synthetic material (composite solder pallet materials ), wave soldering pallets, universal wave solder pallets, FR-4 Epoxy resin laminated sheet, hold downs fixtures accessories and CNC machined parts etc. The company owns the integrated strength in high science and technology, production, Our products are researched by authoritative experts through two years and thus win the customer's favor by its reasonable price and reliable quality.
Our products are composite materials, made from glass fiber and epoxy resin, a kind of heat resisting and antistatic material. Our products are widely used for wave soldering and SMT process. It can achieve the precision required during the SMT machining process, and maintain its flatness in the reflow soldering cycle. The low thermal conductivity of the CATOS synthetic stone prevents heat-shrinkage of the base board, to ensure the quality of reflow process.
Our company always adheres to the concept of serving customers with advanced technology. Since establishment, we have provided customers with one-stop service. The whole process includes pre-selection design before selling, integrated processing program while selling, and after-sales tracking effect of product applications.
Adhere to the principle that the customer is supreme; Quality first. By response to customers' demand and providing professional services and technical support let us get win-win situation to create a brilliant future together.
