Wb-Type Flow Meter with Regulator Valve, Without The Mediation
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
Wb-Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fitting Materia: |
ABS |
| Float Material: |
Ss |
| Operating Temperature: |
0~90 C |
| Body Material: |
Acrylic |
| Working Pressure: |
≤1.5MPa |
| Accuracy: |
?à0.2-0.5% |
| Size: |
DN10-50 |
| Sensor: |
Tube/Flange |
| Type: |
Variable Area Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
Product Description

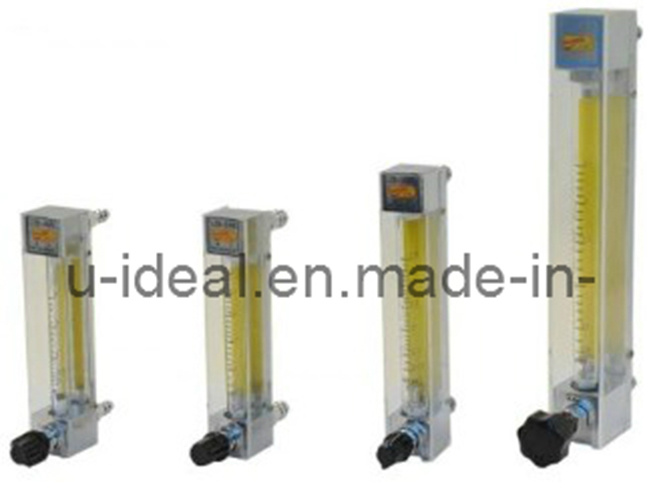

LZB-WB-type flowmeter There are three kinds of specifications, including Φ 4 Φ 6 and Φ 10. This flowmeter is suitable for measuring small-scale flow, the product has the characteristics of small size, beautiful light, are widely used in a variety of analytical instruments, environmental protection equipment, medical equipment and other laboratory equipment. WB-type flow meter with regulator valve, without the mediation of the W-type valve.
Glass rotameter-flow meter
Float type flow meter
For liquid and gas
Low cost rotameter
Low flow rate flow meter
Visual flow meter
| Model | Range | Accuracy | Pressure | Temperature |
| WaterL/min | AirL/min |
| LZB-4WB | 16-160ml/min | 0.3-3 | 6% | ≤0.2Mpa | 0~+60ºC |
| 25-250ml/min | 0.6-6 |
| LZB-6WB | 0.04-0.4 | 0.7-7 | 4% |
| 0.06-0.6 | 1-10 |
| 0.1-1 | 1.5-5 |
| LZB-10WB | 0.1-1 | 3-30 |
| 0.16-1.6 | 5-45 |
Series LZN-4WB/6WB/10WB glass rotor flowmeter installation dimensions
| Model | Size ( mm ) |
| A | B | C | D | E |
| LZB-4WB | 26×25 | 90 | 116 | 136 | Φ8 |
| LZB-6WB | 28×25 | 90 | 116 | 136 | Φ10 |
| LZB-10WB | 28×25 | 90 | 140 | 160 | Φ11 |
