1. Passed CE, ISO, CQC
2. High speed, high precision, high rigidity
3. Delem CNC system
4. Best quality best price

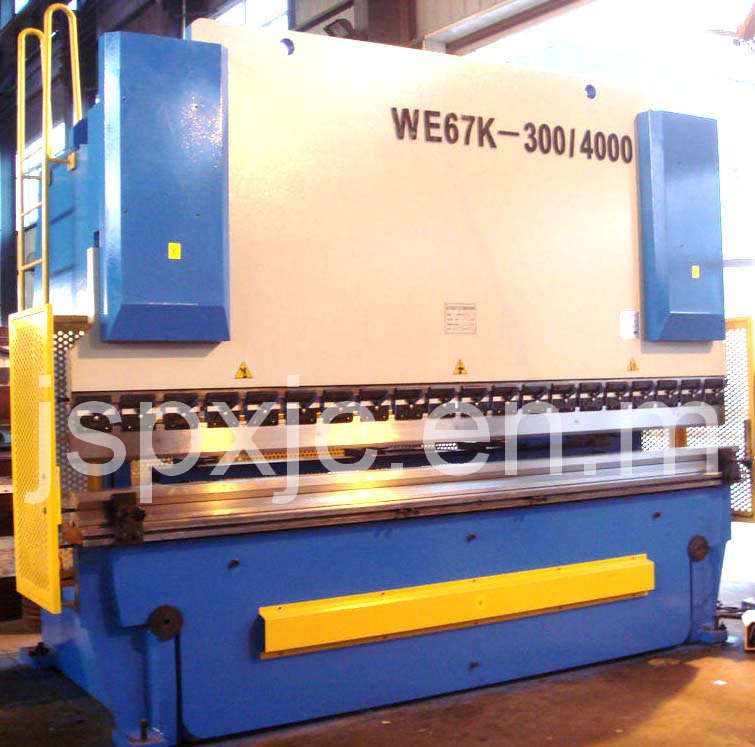

Streamlined design, high speed, high precision, high rigidity, CNC sheet metal press brake.
Electro hydraulic servo system, full loop controlling the synchronization of the upper beam.
Hydraulic compensation on crowing of work-table and deformation compensation on throat, ensuring good bending strength and precision.
Back gauge driven by digital AC servo motor, Moved with long-stroke ball screw, linear guide way guiding.
All our customers the greatest concern of the hydraulic machine is functional standard, machine can not be leaking. In order to solve the problem of our machine after using the phenomenon of frequent oil spills our seal uses the internationl advanced brand. In addition, pipe connections used in the O-ring, we asked the manufacturer of the machine itself, specifically the requirements of custom formulas. It is a gel content of a change in the market<=20%, are up to international standards-a gel content of>=55%, to ensure that it is under high temperature and pressure leakage, no damage, durable.
Synchronization
The electric-hydraulic servo system can control the synchronization of cylinders. Combined with optical curtain of international standard, the fully closed loop control is formed with high bending and repetitive positioning accuracy
Compensation
The CNC cylinder deflection auto compensation system helps to prevent the deformed sliding block from affecting the workpiece quality and ensure its good linearity and bending angle. The compensation ID adjusted automatically by the CNC system, both convenient and accurate
Feeding System
There can be 6 axels when equipped the inward CNC system
Hydraulic System
The hydraulic adopts the integrated, which helps to reduce piping connection, eliminate oil leakage, improve the work stability, and beautify the machine appearance, the inner engaged gear pump manufactured by a famous Germany company is used to reduce the system noise and extend the service life
Tooling
The die sections have different lengths, which can be combined with a certain width to meet the processing requirements of special work pieces
Options
The punch quick clamping and insert type die can be made based on the customers' requirement to reduce and improve productivity
|
machine specification |
|
63/2500 |
100/3200 |
100/4000 |
160/3200 |
160/4000 |
250/3200 |
250/4000 |
300/4000 |
|
Nominal pressure of machine |
KN |
630 |
1000 |
1000 |
1600 |
1600 |
2500 |
2500 |
3000 |
|
length of working table |
mm |
2500 |
3200 |
4000 |
3200 |
4000 |
3200 |
4000 |
4000 |
|
distance between horsing |
mm |
2060 |
2700 |
3500 |
2700 |
3500 |
2700 |
3500 |
3500 |
Max. open height between
working table and ram |
mm |
440 |
480 |
480 |
480 |
480 |
480 |
480 |
480 |
|
stroke of ram |
mm |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
throat depth |
mm |
300 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|
Max back gauge distance |
mm |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
|
mm |
2825 |
3500 |
4300 |
3500 |
4300 |
3500 |
4300 |
4300 |
|
overall dimensions |
mm |
1650 |
1650 |
1650 |
1650 |
1650 |
1730 |
1730 |
1950 |
|
|
mm |
2430 |
2540 |
2540 |
2580 |
2580 |
2580 |
2580 |
2670 |
|
WEIGHT of machine |
kg |
5500 |
8000 |
9200 |
10000 |
11500 |
15000 |
15500 |
22000 |
