Webbing Material for Sling
| Price: |
US $ 0.5/Meter |
| Trade Terms: |
FOB |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
TS-M01-01--TS-TS-M08-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1t-10t |
| Width: |
According to Client's Demand |
| Length: |
According to Client's Demand |
| Safety Factor: |
5:1, 6:1, 7:1, 8:1 |
| Type: |
Synthetic Fibre Sling |
| Material: |
Polyester |
| Fixed Form: |
Sewing |
| Rope Core Type: |
Polyester Core |
| Sling Color: |
According to Clients's Demand to Made It |
Product Description

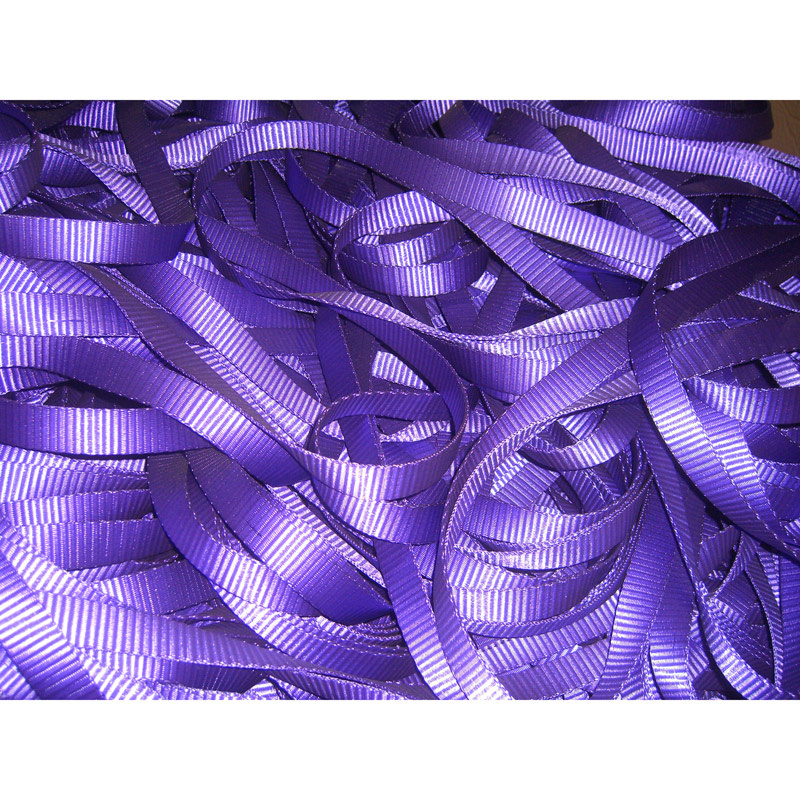

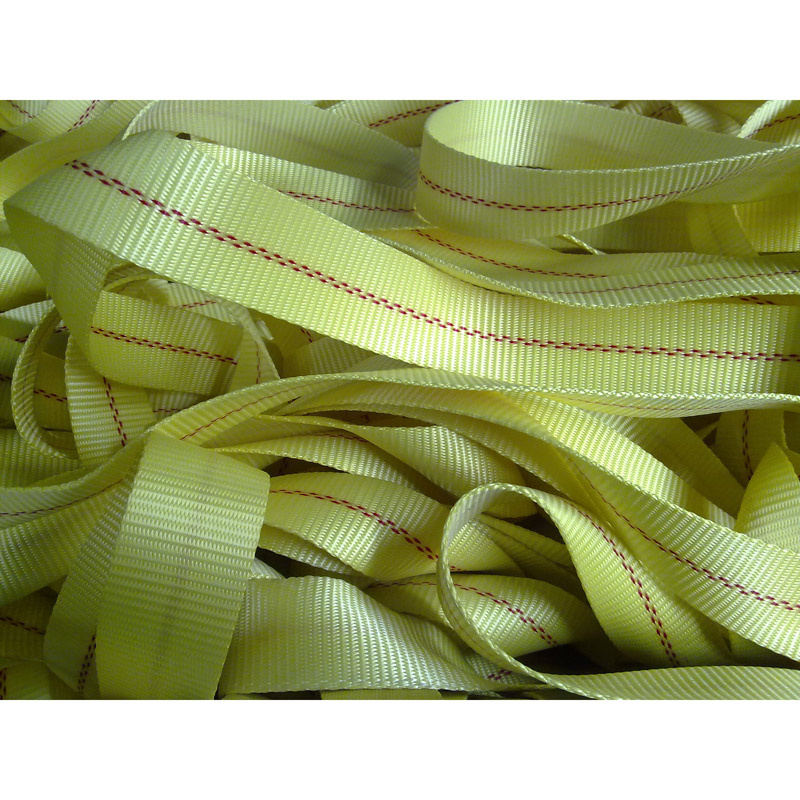

Webbing Material for Sling
Webbing Material
Polyester:PE
Used mainly where acid conditions are present or minimum stretch is desired,polyester is unaffected by common acid and hot bleaching agents,it is not suitable for use with concentrated sulfuric acid,alkaline or at temperature in excess of 100'C or less than -40'C,stretch at rated capacity is approximately 3%
Nylon:PA
The most widely used general-purpose synthetic web sling,is unaffected by grease and oil.It has good chemical resistance to aldehyde,ethers,and strong alkalis:But is not suitable for use with acids and bleaching agents or at temperatures in excess of 100'C or less than -40'C.Stretch at rated capacity is approximately 6-8%.And if wet,maybe the strength will be less over 10%
Polypropyline:PP
Polypropyline is little affected by acids or alkalis and suitable for application where the highest resistance to chemicals other than solvents is required.Using temperatures scope is from -40'C up to 80'C
High-performance synthetic sling is made of a super strong polyethylene fiber.This sling is up to 15 times stronger than steel and weight-for-weight is 40% stronger than competing polyester sling.It has high energy absorption and low elongation,sling floats on water,and is extremely resistant to abrasion,moisture,UV rays and chemicals.As a result,it has an almost unlimited range of application.Providing maximum strength and security for minimum weight.TS-M01 Webbing Material For Sling 7:1 | Item No. | B.S.B.S (kg) | Color | Width(mm) | Length:(m)/R | A.S.B.S.(kg) |
| | | | 7:1 | MIN | MAX | |
| TS-M01-01 | 4500 | Violet | 30/50 | 50 | 5000 | 3600 |
| TS-M01-02 | 9000 | Green | 60 | 50 | 4000 | 7200 |
| TS-M01-03 | 13500 | Yellow | 90 | 50 | 3000 | 10800 |
| TS-M01-04 | 18000 | Grey | 120 | 50 | 2000 | 14400 |
| TS-M01-05 | 22500 | Red | 150 | 50 | 2000 | 18000 |
| TS-M01-06 | 27000 | Brown | 180 | 50 | 1000 | 21600 |
| TS-M01-08 | 36000 | Blue | 240 | 50 | 1000 | 28800 |
| TS-M01-10 | 45000 | Orange | 300 | 50 | 1000 | 36000 |
| TS-M01-12 | 54000 | Orange | 300 | 50 | 1000 | 43200 |
TS-M02 Webbing Material For Sling 6:1 | Item No. | B.S.B.S (kg) | Color | Width(mm) | Length:(m)/R | A.S.BS.(kg) |
| | | | 6:1 | MIN | MAX | |
| TS-M02-01 | 3750 | Violet | 25/38 | 50 | 5000 | 3000 |
| TS-M02-02 | 7500 | Green | 50 | 50 | 4000 | 6000 |
| TS-M02-03 | 11250 | Yellow | 75 | 50 | 3000 | 9000 |
| TS-M02-04 | 15000 | Grey | 100 | 50 | 2000 | 12000 |
| TS-M02-05 | 18750 | Red | 125 | 50 | 2000 | 15000 |
| TS-M02-06 | 22500 | Brown | 150 | 50 | 1000 | 18000 |
| TS-M02-08 | 30000 | Blue | 200 | 50 | 1000 | 24000 |
| TS-M02-10 | 37500 | Orange | 250 | 50 | 1000 | 30000 |
| TS-M02-12 | 45000 | Orange | 300 | 50 | 1000 | 36000 |
TS-M03 Webbing Material For Sling 5:1 | Item No. | B.S.B.S (kg) | Color | Width(mm) | Length:(m)/R | A.S.BS.(kg) |
| | | | 5:1 | MIN | MAX | |
| TS-M03-01 | 3125 | Violet | 25 | 50 | 5000 | 2500 |
| TS-M03-02 | 6250 | Green | 50 | 50 | 4000 | 5000 |
| TS-M03-03 | 9375 | Yellow | 75 | 50 | 3000 | 7500 |
| TS-M03-04 | 12500 | Grey | 100 | 50 | 2000 | 10000 |
| TS-M03-05 | 15625 | Red | 125 | 50 | 2000 | 12500 |
| TS-M03-06 | 18750 | Brown | 150 | 50 | 1000 | 15000 |
| TS-M03-08 | 25000 | Blue | 200 | 50 | 1000 | 20000 |
| TS-M03-10 | 31250 | Orange | 250 | 50 | 1000 | 25000 |
| TS-M03-12 | 37500 | Orange | 300 | 50 | 1000 | 30000 |
TS-M04 Webbing Material For Sling 8:1| Item No. | B.S.B.S (kg) | Color | Width(mm) | Length:(m)/R | A.S.B.S.(kg) |
| | | | 8:1 | MIN | MAX | |
| TS-M04-01 | 5000 | Violet | 38/50 | 50 | 5000 | 4000 |
| TS-M04-02 | 10000 | Green | 60 | 50 | 4000 | 8000 |
| TS-M04-03 | 15000 | Yellow | 90 | 50 | 3000 | 12000 |
| TS-M04-04 | 20000 | Grey | 120 | 50 | 2000 | 16000 |
| TS-M04-05 | 25000 | Red | 150 | 50 | 2000 | 20000 |
| TS-M04-06 | 30000 | Brown | 180 | 50 | 1000 | 24000 |
| TS-M04-08 | 40000 | Blue | 240 | 50 | 1000 | 32000 |
| TS-M04-10 | 50000 | Orange | 300 | 50 | 1000 | 40000 |
TS-M05 (U.S ) Webbing Material For Sling 5:1| Item No. | B.S.B.S (lbs) | Color | Width(mm) | Length:(ft)/R | A.S.B.S.(lb) |
| | | | 5:1 | MIN | MAX | |
| TS-M05-01 | 9800*1 | Yellow | 1 | 100 | 20000 | 7840 |
| TS-M05-02 | 9800*2 | Yellow | 2 | 100 | 15000 | 15680 |
| TS-M05-03 | 9800*3 | Yellow | 3 | 100 | 10000 | 23520 |
| TS-M05-04 | 9800*4 | Yellow | 4 | 100 | 8000 | 31360 |
| TS-M05-05 | 9800*5 | Yellow | 5 | 100 | 6000 | 39200 |
| TS-M05-06 | 9800*6 | Yellow | 6 | 100 | 3000 | 47040 |
| TS-M05-08 | 9800*8 | Yellow | 8 | 100 | 3000 | 62720 |
| TS-M05-10 | 9800*10 | Yellow | 10 | 100 | 3000 | 78400 |
| TS-M05-12 | 9800*12 | Yellow | 12 | 100 | 300 | 94080 |
TS-M06 (South America ) webbing Material For Sling 7:1| Item No. | B.S.B.S (kg) | Color | Width(in) | Length:(m)/R | A.S.B.S.(kg) |
| | | | | MIN | MAX | |
| TS-M06-01 | 4500 | Violet | 25/30 | 50 | 5000 | 3600 |
| TS-M06-02 | 9000 | Green | 50 | 50 | 4000 | 7200 |
| TS-M06-03 | 13500 | Yellow | 75 | 50 | 3000 | 10800 |
| TS-M06-04 | 18000 | Grey | 100 | 50 | 2000 | 14400 |
| TS-M06-05 | 22500 | Red | 125 | 50 | 2000 | 18000 |
| TS-M06-06 | 27000 | Brown | 150 | 50 | 1000 | 21600 |
| TS-M06-08 | 36000 | Blue | 200 | 50 | 1000 | 28800 |
| TS-M06-10 | 45000 | Orange | 250 | 50 | 1000 | 36000 |
| TS-M06-12 | 54000 | Orange | 300 | 50 | 1000 | 43200 |
TS-M07 Webbing Material For Ratchet Lashing | Item No. | B.S.B.S (lbs) | Color | Width(mm) | Length:(m)/R | A.S.B.S.(kg) |
| | | | | MIN | MAX | |
| TS-M07-01 | 1000 | Any Color | 25 | 50 | 5000 | 800 |
| TS-M07-02 | 1200 | Any Color | 25 | 50 | 4000 | 1000 |
| TS-M07-03 | 1500 | Any Color | 25 | 50 | 3000 | 1200 |
| TS-M07-04 | 2250 | Any Color | 28 | 50 | 2000 | 1800 |
| TS-M07-05 | 2500 | Any Color | 35 | 50 | 2000 | 2000 |
| TS-M07-06 | 3000 | Any Color | 35 | 50 | 1000 | 2400 |
| TS-M07-07 | 4500 | Any Color | 35 | 50 | 1000 | 3600 |
| TS-M07-08 | 3000 | Any Color | 38 | 50 | 1000 | 2400 |
| TS-M07-09 | 4000 | Any Color | 38 | 50 | 1000 | 3200 |
| TS-M07-10 | 4500 | Any Color | 38 | 50 | 1000 | 3600 |
| TS-M07-11 | 2500 | Any Color | 50 | 50 | 1000 | 2000 |
| TS-M07-12 | 3750 | Any Color | 50 | 50 | 1000 | 3000 |
| TS-M07-13 | 4500 | Any Color | 50 | 50 | 1000 | 3600 |
| TS-M07-14 | 5000 | Any Color | 50 | 50 | 1000 | 4000 |
| TS-M07-15 | 6250 | Any Color | 50 | 50 | 1000 | 5000 |
| TS-M07-16 | 7500 | Any Color | 50 | 50 | 1000 | 6000 |
| TS-M07-17 | 10500 | Any Color | 75 | 50 | 1000 | 8400 |
| TS-M07-18 | 12500 | Any Color | 75 | 50 | 1000 | 10000 |
| TS-M07-19 | 15000 | Any Color | 75 | 50 | 1000 | 12000 |
| TS-M07-20 | 12500 | Any Color | 100 | 50 | 1000 | 10000 |
| TS-M07-21 | 15000 | Any Color | 100 | 50 | 1000 | 12000 |
TS-M08 (U.S ) Webbing Material For Ratchet Tie Down| Item No. | B.S.B.S (lbs) | Color | Width(in) | Length:(ft)/R | A.S.B.S.(lb) |
| | | | | MIN | MAX | |
| TS-M08-01 | 1500 | Yellow | "1" | 100 | 20000 | 1200 |
| TS-M08-02 | 3000 | Yellow | "1" | 100 | 15000 | 2400 |
| TS-M08-03 | 3750 | Yellow | "1" | 100 | 10000 | 3000 |
| TS-M08-04 | 8125 | Yellow | "2" | 100 | 8000 | 6500 |
| TS-M08-05 | 6250 | Yellow | "2" | 100 | 6000 | 5000 |
| TS-M08-06 | 12500 | Yellow | "2" | 100 | 3000 | 10000 |
| TS-M08-07 | 18750 | Yellow | "2" | 100 | 3000 | 15000 |
JiangSu TianHua Sling was an Joint-Venture cooperation by three partners which had more than 30 years manufacturing and marketing experience for synthetic sling. We built up 20000 M2 workshop and imported 46 piece Muller Weaving Machinery from Switzerland directly. Quality products and dedicated customer service to the sling and rigging industries has allowed us to earn our reputation for quality, service and innovation. We offers the webbing, round sling, ratchet tie down, towing snatch, safety harness and slackline. They were used widely in cargo lifting, transportation security, construction, marine and 4X4 industry.
Why we can success?
1: Strict quality control, Our professional QC inspected every lots no matter it is sample or mass production strictly in WLL and SF. Every sales will be responsible for order details so it confirm each information from clients will be implemented correctly and strictly. At same time, we pay much attention to the raw material inspection so as to control it at initial activity.
2: Nice innovation. We found out the defect of products depending on the visit to clients after they get goods. Do it by questionnaire. We also try to talk with end user to know what they are not satisfied. Encourage the technician to improve products constantly.
3: Excellent customer service, our salesman is professional, experienced and full of passion. We reply our clients rapidly and professionally so they can feel our honesty and confidence. Clear and patient answer to client's question make us win order quickly.
4: Good cost control, Competitive price must be first. We pursue and explore the management method so as to reduce the cost. Benefiting from the good relationship with our suppliers, due to nice payment terms to them, we can always get better price than our competitor from supplier. It makes us more competitive.
Our qualification? :
Now we have passed the ISO9001--2000, TUV, GS, CE certificate from Germany Rhein, the Chinese CCS. We can produce as clients request by ISO4878, EN1492-1/1492-2. GB/T8521-1997, England, Australia and US standard.
