Product Specifications
| Prod Model: |
AHC15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Dimensions(mm): |
81X36X66 |
| Contact Capacity: |
12AAC250V |
| Expectancy Display: |
LCD |
| Contact Form: |
1z |
| Manufacturer: |
OEM |
| Condition: |
Original New |
| Type: |
Timer |
| Usage: |
Timer Switch |
| Function: |
Reversible Counter |
| Theory: |
Digital |
| Mechanism: |
Electronic |
Product Description

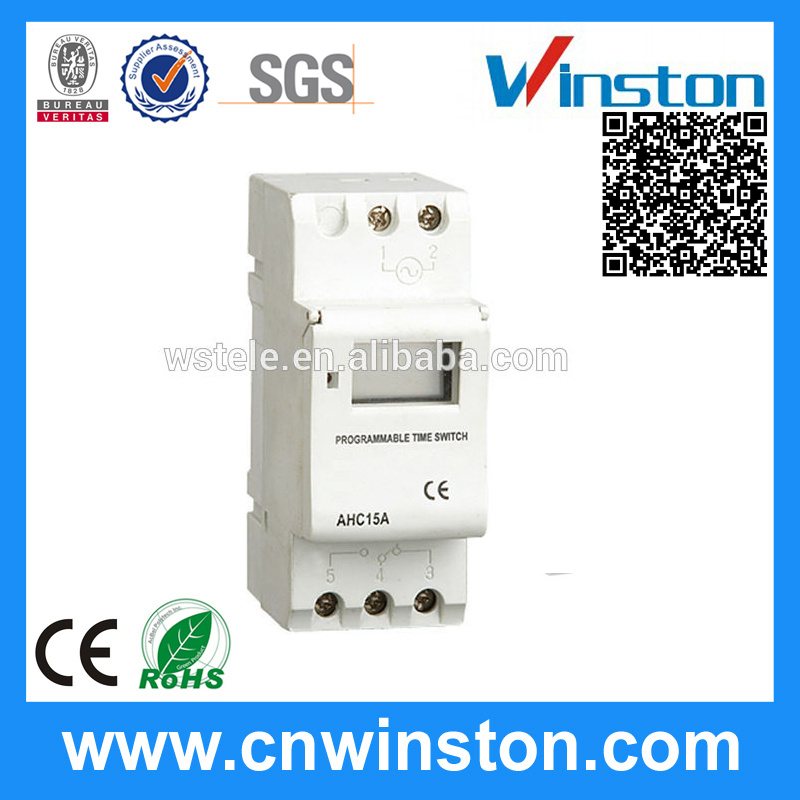

AHC15A Time switch
Product features:
1)Type: AHC15A Daily and weekly programmable timer
2)Fulling timing range: 24 hours or 1 week
3)Contact capacity: 16A, 220V AC OR 20A 220V AC
4)Rated voltage: AC 220V 50/60Hz 85%~110%
5)Contact form: 1Z
6)Accuracy: ≤ 2S/day
7)Electrical life: ≥ 100, 000times
8)Mechanical life: ≥ 10, 000, 000times
9)Working reserve time: 15 days
10)Expectance display: LCD
11)Programmable: 9time/ week or day
12)Operating temperature: -40~+50° C
13)Mouting form: Front panel, DIN Rail mounting
14)Dimmension(mm): 81Lx36Wx66H
Technical parameters
Classification | Weekly Programmable |
| Type |
AHC15A |
Dimensions(mm) | 81×36×66 |
| Full Timing Range | Per week or per day cycle |
| Rated Voltage | AC 220V 50/60HZ85%-110% |
| Contact Capacity | 12AAC250V |
| Contact Form | 1Z |
| Accuracy | ≤2S/DAY(ºC) |
| Expectancy Display | LCD |
| Mounting Holes | ---- |
| Mounting Form | Front-panel,din Rail |
Life |
Electrical | ≥105times |
| Mechanical | ≥105times |
| Operating Mode | -20ºC~+50ºC |
| Programmable | 9time/week or day |
| Workmode | 15days |
