Product Specifications
| Prod Model: |
CWM-220 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Cwm-220 |
| Waterproof: |
IP65 |
| Belt Change System: |
Quick Belt Change System |
| Weighing Range: |
10g-1200g |
| Lead Time: |
30 Workdays If No Stock |
| Machine Frame: |
Stainless Steel 304 |
| Sorting System: |
Pusher or Flapper |
| Warranty: |
One Year, All Life Maintenance |
| Operational Language: |
English (Other Language Can Be Optional) |
| Export Market: |
Global |
Product Description

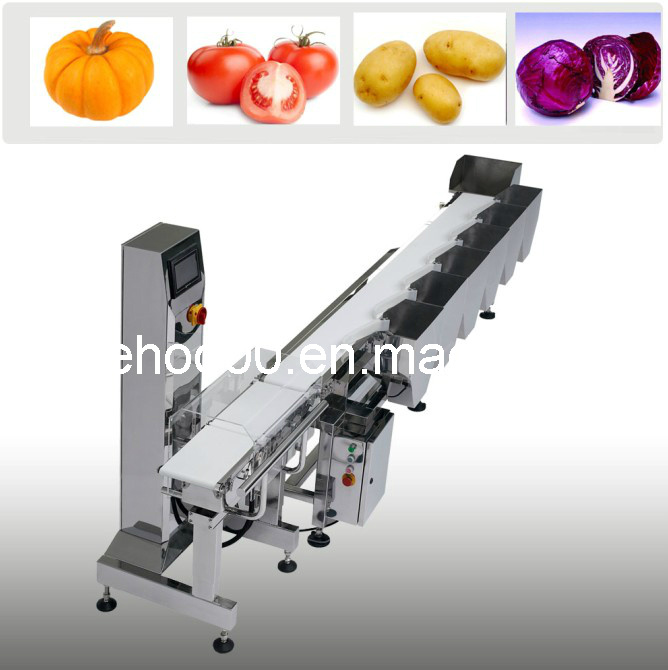

Check Weigher Sotring
Online Weight Checking and Sorting
FEATURES
1, New designed mechanical structure with IP65 Protection Grade, improving the measurement accuracy and speed
2, Mechanical designed to comply with food and pharmaceutical hygiene standards
3, Quick release drive unit for easy cleaning and maintenance
4, German precision load cell and high-speed weighing signal processing module, to ensure that the system is stable and accurate
5, 50 products memory, quick product changeover
6, Intelligent parameter configuration, adjusted sorting settings according to the product size
7, Easy-to-use operating system and HMI interface
8, Standard model machine can be sorted objects into 9 weighing zones
APPLICATIONIS
1. Online package weighing and sorting.
2. Applied to packing foods quality control.
3. Used to check unit product's weight whether meet target Object, and automatically reject sub-standard products.
APPLICATIONIS FIELDS
Fish and shrimp and a variety of fresh seafood, poultry meat processing, automotive hydraulic attachments classification, the daily necessities weight sorting packing etc many fields
PURPOSE:
Online dynamic weighing & automated sorting equipment, which is mainly used for products through labour production lines, it can weight and sorting the continuing running products with the different weights into the different groups in accordance with the preset weight, and also with the function of automatic classification and statistics and a variety of data storage.
|
Model |
CWM-220 |
|
Weighing Capacity |
10-1200g |
|
weighing Accuracy |
± 0.5g |
|
Product Dimensions |
L: 30-300mm W: 30-220mm H: 10-150mm |
|
Weighing Scale Size |
L: 400mm W: 245mm |
|
Weigh Sensor |
Double-beam load cell |
|
Conveying |
Food Belt |
|
Display |
Chinese, Englishi |
|
Minimum Scale |
0.1g |
|
Weight Value |
press the mumber keys: 0.1g-1200.00g |
|
Belt Speed |
Standard Weight Setting: 15-60m/mm |
|
IP Rating |
IP 65 |
|
Construction |
304 SUS, Polishing |
|
Machine Size |
L: 750mm W: 580mm |
|
The height from conveyor belt to the ground |
650-900mm |
|
Machine Weight |
Appr. 55KG |
|
Power Supply |
Single-Phase AC-200V-240V |
|
Other Standard Accessories |
Windshield Cover (colorless and clear), photosensor |
|
Menu |
Standard/Over/Under Weight, product name, belt speed etc pre-setting as one unit, totally 50 unites |
|
Error Message Display |
Zerro error, photosensor error, setting error, products too long error, products too close error |
|
|
|
|
|
|
