Product Specifications
| Prod Model: |
AWS E6013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
E (',Carbon Steel Electrodes/ Low Alloy Steel Electrodes) |
| Material: |
Stainless Steel |
| Function: |
Moisture-Proof Electrode |
| Welding Power: |
AC or DC |
Product Description

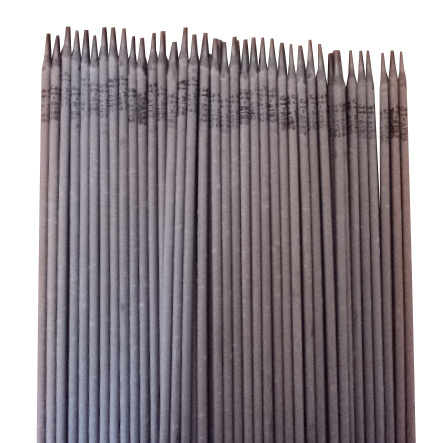

AWS E6013 welding electrodes
1. Description:
AWS E6013 is a kind of carton steel welding electrode with titania typecoating, which is used for all position welding. It is suitable for welding general carton steel and ZINC-coated steel sheets for ships. AWS E6013 welding eelectrode has excellent operating performance, easy ignition and reignition, stable arc, perfect appearance of welding and good slag detachability
2.Application:
It is suitable for welding general carton steel and ZINC-coated steel sheets for ships. Suitable for welding shipbuilding structures such as buildings and bridges, storage tanks, pipes and pressure vessel fittings.
3.Attention:
It requires no heating before using, if welding electrodes is damp; please heating it under the temperature100 for 30-60 minutes according to the damp situation.
4.Chemical Composition Of Metal Depost
| C | Mn | Si | S | P |
| ≤0.10 | 0.3~0.6 | ≤0.035 | ≤0.035 | ≤0.040 |
5.Mechanical Property Of Metal Deposit
| MPa | MPa | (%) | Akv | °C |
| |
|
|
|
(Tensile strength)
Rm (MPa) | (Yield strength)
Rel (MPa) | (Elongation)
A(%) |
|
|
| ≥420 | ≥330 | ≥17 | 70-130 | 0 |
6.Reference Current:
| Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current | 40~70 | 70~90 | 90~120 | 150~190 | 180~240 |
7.package detail:
1) Inner packaging: 2.5/5kg for a carton box or a corrugated package + PE/PVC bag.
2) Outer packaging: 20kg(5kg*4 or 2.5kg*8) for a brown paper box with LDPE film.
3)One or two tons are packed together with a wood pallet in a plastic package if customers need.
8.Characteristics
welding electrode E6013 rutile type, thin coated, depositing smooth ,good mechanical properties. slag is thin and easily removable.
