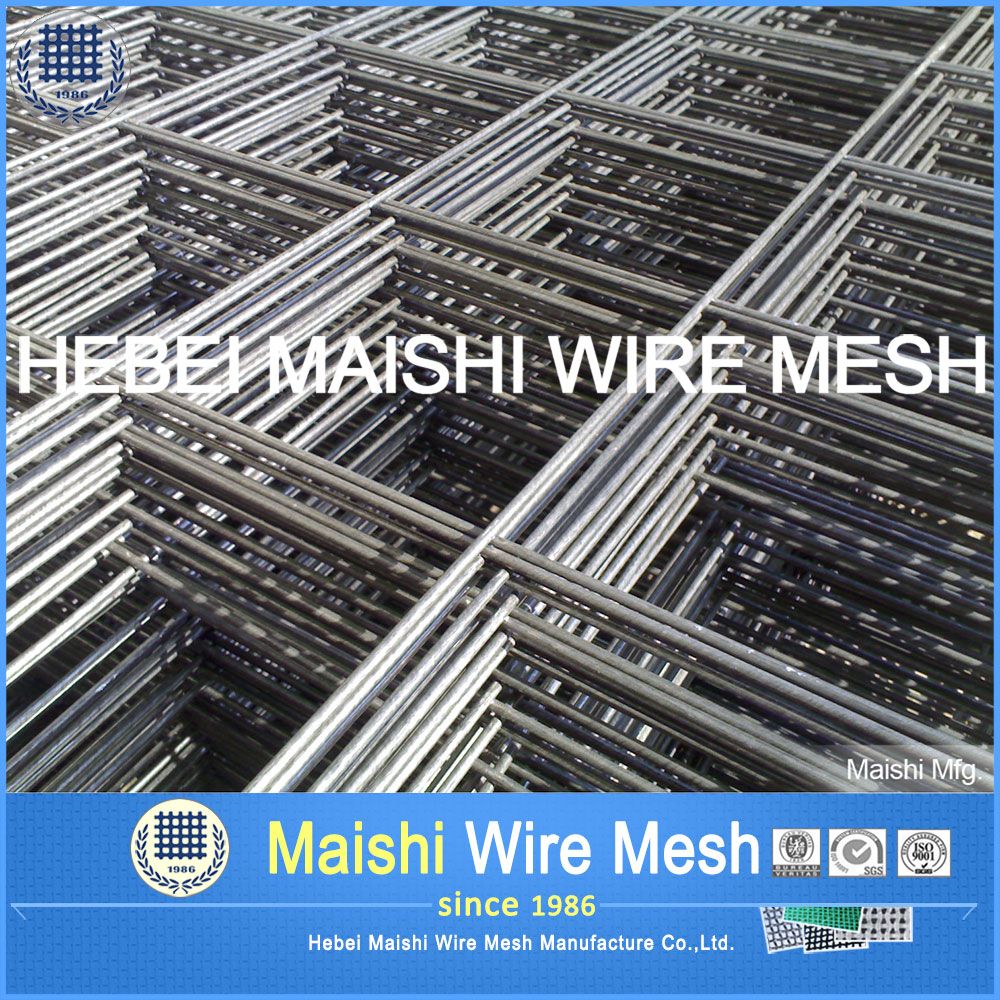

Welded wire mesh used in concrete , we choose the best quality wire to meet highest standards.
[ Welded Wire Mesh ]
As a leading welded wire mesh supplier and manufacturer,Hebei Maishi offers a full range of welded wire mesh for various applications. We supply the mesh from 1/2" to 6", customer requst can be customized .Welded wire mesh is generally constructed in rolls or flat panels designed by customers. Green plastic coated is widely used for fence and breeding .Custom wire openings available upon request.
Hebei Maishi Wire Mesh Group supply Galvanized Welded Wire Mesh with high quanlity,favorable price and excellent service.
[ Material ]
Electro galvanized before welded wire mesh
Electro galvanized after welded wire mesh
Hot-dipped galvanized before welded wire mesh
Hot-dipped galvanized after welded wire mesh
Iron/galvanized wire+pvc coated
Stainless steel 304,316 wire
Some customers ask the difference between before or after galvanized,please show below pic.
NOTE:We choose the best low carbon wire or stainless steel wire material available in China, and used the best plastic coating to guarantee the goods will have a long service life.
The high quality & reasonable price product is from the right material.
[ Specifications ]
Opening | Wire diameter | Width |
| 1/4" x 1/4" | 0.5mm-0.7mm | 300mm-1828mm |
| 3/4" x 3/4" | 0.7mm-2.0mm | 300mm-1828mm |
| 3/8" x 3/8" | 0.7mm-1.1mm | 300mm-1828mm |
| 5/8" x 5/8" | 0.8mm-1.2mm | 300mm-1828mm |
| 1/2" x 1/2" | 0.45mm-1.6 mm | 300mm-1828mm |
| 1" x 1" | 0.7mm-3.0mm | 300mm-2000mm |
| 1" x 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
| 1-1/2" x 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
| 1" x 2" | 1.6mm-2.1mm | 300mm-1828mm |
| 2" x 2" | 0.7mm-4.0mm | 300mm-2500mm |
| 2" x 3" | 1.5mm-3.5mm | 300mm-2000mm |
| 2" x 4" | 2.0mm-4.0mm | 300mm-1828mm |
| 3" x 3" | 1.0mm-4.5mm | 300mm-2500mm |
| 3" x 4" | 1.5mm-4.5mm | 300mm-2000mm |
| 4" x 4" | 1.0mm-4.5mm | 300mm-2500mm |
| 5" x 5" | 2.5mm-4.5mm | 300mm-2500mm |
| 6" x 6" | 2.5mm-4.5mm | 300mm-2500mm |
Technical Note:
1. Standard roll length: 15.24m,30m,50m. 2. Special sizes available at request.
3. Packing: in waterproof paper in rolls. Custom packing available at request. |
Welded Wire Mesh Panel |
| Mesh Size | Wire diameter |
| In Inch | In MM | MM |
| 1/2" x 1/2" | 12.7mm | 1.0mm-2.0 mm |
| 1" x 1" | 25.4mm | 1.5mm-3.5mm |
| 1" 1/4" | 31.8mm | 2.0mm-4.0mm |
| 1 1/2" | 38.1mm | 2.0mm-5.0mm |
| 2" x 2" | 50.8mm | 2.0mm-6.0mm |
| 3" x 3" | 76.2mm | 3.0mm-7.0mm |
| 4" x 4" | 101.6mm | 3.0mm-8.0mm |
| 5" x 5" | 127.0mm | 4.0mm-9.0mm |
| 6" x 6" | 152.4mm | 4.0mm-10.0mm |
Panel Width & Length: 3Feet × 6Feet, 4Feet × 8Feet, 5Feet × 106Feet, 1M ×2M, 1.5M × 3M, 2M × 4M
Other panel sizes can also be made according to request. |
[ Production ]
Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.
[ Application ]
- Guarding
- Railings
- Architectural
- Ceiling Tiles
- Partition Systems
Farm
[ Guarantee ]
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price
2.The goods can be returned or compensated if the quality is not ok
3.There is no "cheat" and "misunderstanding" in Maishi
[ Payment term ]
T/T(30%T/T paid in advance and 70% paid before shipment or against copy of BL), irrevocable L/C at sight, can be negotiable . .
Sample:free sample sent on request.
To serve you best we appreciate getting the following information :
1.Material:electro galvanized,hot dipped galvanized before or after welding
if pvc coated(inner wire material)
2.Opening size
3.Wire diameter (if pvc coated before and after coated wire diameter)
4.Roll or pallets,sizes
5.Quantity
At your service all the time and welcome your inquiry.You are the reason why we are here.
[ Contact Us ]
Name : Ms. Cyan (export department)
Tel direct : 0086-311-89909774
Enterprise "quality, rapid, innovative, comprehensive and meticulous" business ideas;
Adhering to the "integrity, sound, professional''
Web: www.chinawiremesh.info
Hebei Maishi Wire Mesh Manufacture Group is one of the top manufacturers and exporters of stainless steel wire mesh, copper wire mesh, crimped wire mesh, welded wire mesh, hexagonal wire mesh, expanded metal mesh, perforated metal mesh, chain link fence, polyester printing mesh, , silk scren printng mesh, stainless steel priting mesh, bolting cloth, monofilament nylon bolting cloth, various window screen, barbed wire, razor wire, and other wire mesh products.
Our group was connected with production of steel wire mesh and netting, since 1986, in China. The machinery and apparatus used in production process fully based on the high computer technology, so it is accepted as the only company capable of having TSE ( Chinese Standard Institution ) certificate and ISO 9001: 2008
All of our wire mesh and netting products have been exported to Europe, U. S. A., Australia, Middle East, Southeast Asia, Africa, South America and other parts in the world. We have good reputation in the world with the quality and price. You are welcome to send by email or fax your inquiry for trial orders.
