Features
Bridge rectifier module
Current: 2-250
RRM: 100-1600V
Welding technique under the production of vacuum and hydrogen gas
Electrically-isolated chip and baseboard 2500V AC voltage
Bridge rectifier module
BASIC INFO.

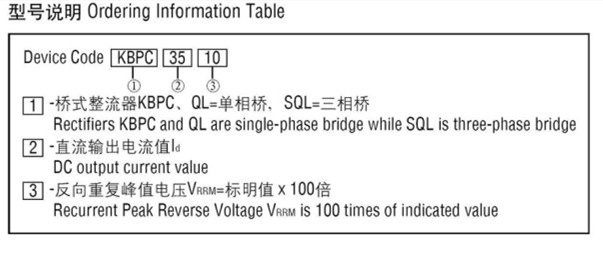

Model NO.: SQL10A SQL20A SQL40A SQL50A SQL60A SQL100A SQL150
Manufacturing Technology:Logic IC
Material:Element Semiconductor
Type:Intrinsic Semiconductor
Color:Silver
Weight:1.2kg
Current:10A-300A
Voltage:100-1600
Rectifier Type:Three Phase
Export Markets:Global
Supply Voltage:Standard
Products Status:in Stock
Warranty Period:15 Month
Certificates:Ets ISO9001: 2000 CQC CE

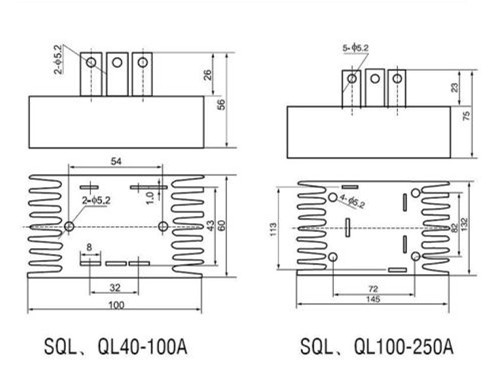

Type | Id | IF(AV) | VRRM | IRRM | VISOL | Outline |
| A | A | V | mA | V |
|
SQL10A | 10 | 12 | 100~1600 | 7 | 2500 | 32x60x25 |
SQL20A | 20 | 16 | 100~1600 | 7 | 2500 | 32x60x25 |
SQL40A | 40 | 14 | 100~1600 | 7 | 2500 | 60x100x55 |
SQL50A | 50 | 18 | 100~1600 | 7 | 2500 | 60x100x55 |
SQL60A | 60 | 20 | 100~1600 | 7 | 2500 | 60x100x55 |
SQL100A | 100 | 34 | 100~1600 | 7 | 2500 | 60x100x55 |
SQL150A | 150 | 50 | 100~1600 | 10 | 2500 | 132x145x75 |
SQL200A | 200 | 67 | 100~1600 | 10 | 2500 | 132x145x75 |
SQL250A | 250 | 84 | 100~1600 | 10 | 2500 | 132x145x75 |
SQL300A | 300 | 92 | 100~1600 | 10 | 2500 | 132x145x75 |
Yueqing Sanshe Semiconductor Factory has been specialized in manufacturing power module, such as SCR module, silicon rectifying module, high-power resistance, solid state relay, etc. It is a company that has been engaged in the research, development, production and sale of electric power semiconductors. Not only does our company have strong technical force, but also perfect production line. Besides, we have first-rate testing facilities. And all of our products are stable in performance and reliable in quality.
We have acquired ISO9001 quality system certification and CE certification. Our products are widely used in replacing similar brand name products from abroad, which can help users save cost, and they have been enjoying great popularity among the users.
We are willing to establish long-term business relationship with all customers on the basis of honesty, trustworthiness, deploitation and innovative entrepreneurship.
