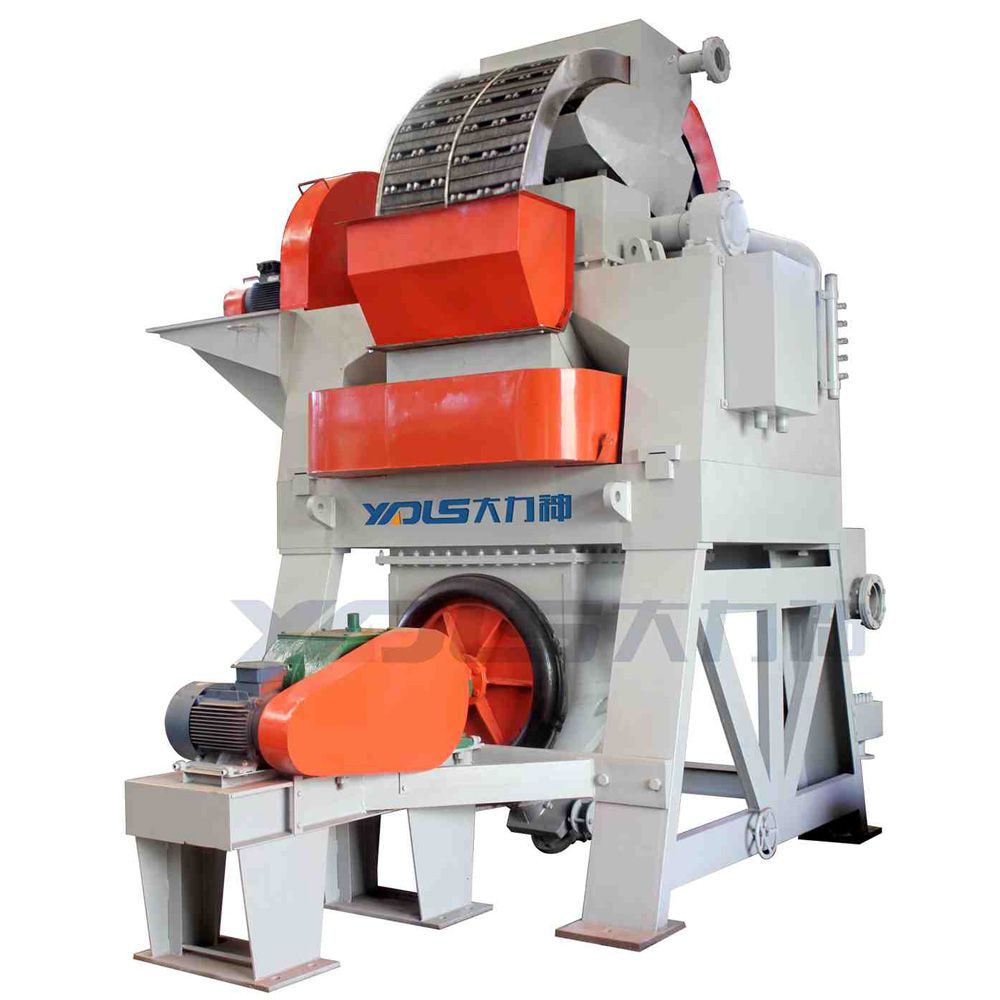

High Gradient Magnetic Separator DLS Series
l Product introduction
DLS Series high gradient magnetic separator is a new product developed independently by Dalishen. It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic separator of best performance and most advanced technology. This product utilizes vertical ring rotation, pulsating beneficiation and high frequency vibrator, and it has no magnetic medium jam problem in flat ring high intensity magnetic separator and flat ring high gradient magnetic separator.
It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.
l Application field
1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.
2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.
3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.
4. Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc,
l Technical features
1. Vertical Ring Rotation & Pulsating Beneficiation
2. High Frequency Vibration Mechanism
3. Wide Range of Feed Particle Size
4. Multi-Gradient Matrixes & Liquid Level Control System.
These technologies improve the grade of magnetic concentrate and recovery.
5. Frequency Conversion Step-less Adjustment for Rotary Speed & Vibrating Frequency.
6. No Stepper Phenomenon of Rotary Rings
Model Part |
DLS-50 | DLS-75 | DLS-100 | DLS-125 | DLS-150 | DLS-175 | DLS-200 | DLS-250 | |
Ring Diameter (mm) |
500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2500 | |
RotationSpeed (r/min) | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | 0-3 | |
Max. Feeding Particles Size (mm) | -1.0 | -1.0 | -1.3 | -1.3 | -1.3 | -1.3 | -1.3 | -1.3 | |
Suitable Size Distribution | 30%~ 100% = -200 BBS mesh | ||||||||
Slurry Density (%) |
10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | 10-40 | |
Slurry Throughput (m3/h) |
0.5-1.0 | 1.0-2.0 | 12.5-20 | 20-50 | 50-100 | 75-150 | 100-200 | 180-450 | |
Feeding CapacitySolid (t/h) |
0.05-0.25 | 0.1-0.5 | 4-7 | 10-18 | 20-30 | 30-50 | 50-80 | 80-150 | |
Rated BG Intensity (Tesla) |
0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 | 0-1.2 | |
Rated Exciting Current (A) |
0-1200 | 0-850 | 0-650 | 0-850 | 0-950 | 0-1200 | 0-1200 | 0-1400 | |
Rated Exciting Voltage (V) |
0-8.3 | 0-13 | 0-26.5 | 0-23 | 0-28 | 0-31 | 0-35 | 0-45 | |
Rated Exciting Power (kw) |
0-10 | 0-11 | 0-17 | 0-19 | 0-27 | 0-37 | 0-43 | 0-63 | |
Ring Motor Power (kw) |
0.37 | 0.55 | 1.1 | 2.2 | 4 | 5.5 | 7.5 | 11 | |
Vibration Motor Power (kw) |
0.55 | 0.75 | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 11 | |
Vibration Stroke (mm) |
0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-30 | 0-30 | 0-30 | |
Vibration Frequency (r/min) |
0-300 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 | |
Water Supply Pressure (MPa) | 0.1-0.2 | 0.1-0.2 | 0.2-0.4 | 0.15-0.3 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | |
Water Consumption (m3/h) |
0.75-1.5 | 5~8 | 10-20 | 30-50 | 60-90 | 80-120 | 100-150 | 200-300 | |
Cooling Water Quantity(m3/h) | 1.5-2 | 1.5-2 | 2-2.5 | 2.5-3 | 3-4 | 4-5 | 5-6 | 6-7 | |
MainBody Weight (t) |
1.5 | 3 | 6 | 14 | 20 | 32 | 48 | 102 | |
Overall dimension (mm) |
Length | 1900 | 2000 | 2800 | 3400 | 3450 | 3900 | 4290 | 5200 |
Width | 1580 | 1360 | 2200 | 2400 | 3050 | 3500 | 3800 | 4850 | |
Height | 1320 | 1680 | 2560 | 2640 | 3150 | 3800 | 4500 | 5560 |
Prod Model: | DLS |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mining Object: | High Gradient Magnetic Separator |
Type: | Beneficiation Machinery |
