Product Specifications
| Prod Model: |
LQ956 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Loader: |
Wheel Loader |
| Large Wheel Loader: |
Large Wheel Loader |
| Construction Machinery: |
Construction Machinery |
| Type: |
Large Loader |
| Certification: |
ISO9001: 2000 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Load And Unload Method: |
Front Discharge |
Product Description

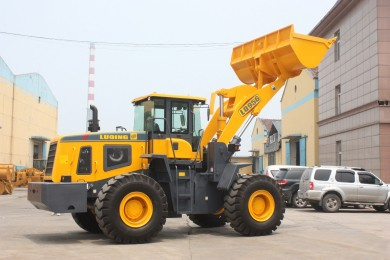

Wheel loader---LQ956
1. Streamlined appearance, beautiful and elegant.
2. STEYR WD10G220E22 engine, rated power, 162kw/2200rmp.
3. Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and easier maintenance
4. Pilot controlled, fully hydraulic steering system, power shift transmission, easier operation
5. Bucket can be leveled automatically, optimized working device, higher productivity
6. Comfortable operation environment, new design cabin, Grammar seat, air-conditioner at option
7. Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc, to meet different needs.
| Rated capacity | 3m 3 |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max. breakout force | 172.6KN |
| Max. drawbar pull | 151.9KN |
| Max. grade ability | 30° |
| Total of three time: lifting dumping lowering | 11.3s |
| Max. dump height | 3098mm |
| Max. dump reach | 1198mm |
| Min. ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Pattern | Inline, water cooled, dir. inject, fourstrokees |
| Cylinder-bore*stroke | 6-126*130 |
| Max. torsion | 779Nm |
| Model of engine | STEYR WD10G220E22 |
| Rated power | 162KW |
| Min. fuel consuming rate | 214g/kw. h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element, single stage |
| Number of great shift | 4 forward, 4 revers |
| Max. travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering, load sensing meets |
| Steering angle(each direction) | 35± 1 |
| Min. turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32· 2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
| Pressure of working hydraulic system | 160kfg/cm 2 |
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. As a business possessing the broadest range of loader varieties in the industry, the company has been following a policy of "quality for survival, credit for development". It has passed the certifications of CE and ISO9001: 2000 Quality Management System, obtained the import and export right, passed the national commodity inspection, and been successively named the "Contract-stressing & Promise-observing Enterprise in Weifang City, Shandong Province", "Civilized Unit in Qingzhou City", "Advanced Unit in Social Security of Weifang City", and " Trustworthy Private Enterprise of Weifang City". We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
