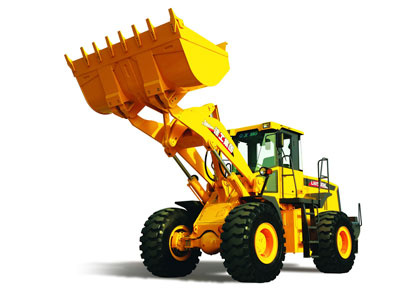

Wheel Loader (LW500K)

Wheel Loader (LW500K)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

Product Specifications

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Wheel Excavator
Type2: Front Loader

Product Description

K series loader is XCMG latest wheel loader of high efficiency with more than 10 years' experience.
The performance, efficiency, structural strength, service life, daily maintenance and operation condition are upgraded all round.
with the two breakthroughs of driving medium and covering part, the machine is ahead of other product of the same kind essentially.
All series products adopt large vehicle body and superstrong structure, especially for the heavyload work condition.
LW500K features the super large operation weight, long machine body, and strong strength and high efficiency, leading in the industry.
Excellent performance
Large strength: The strong bucket breakout force of 17 ton and strong traction of 16.5 ton ensure that the machine could adapt to various tough condition.
Reliable operation: with the long wheelbase of 3300mm and long machine body of 8185mm, the machine is ahead in the industry in terms of the operation reliability.
High dumping: The dumping height of the long boom reaches more than 3.7m, leading in the industry.
High efficiency
Fast operation: The total time of three devices is only 11s, and the speed is 15km/hour during the operation.
Flexible steering: Pilot flow amplification steering, flexible and efficient.
Sufficient power: Dual-pump combination, using the power efficiently.
Strong structure
Heavy load design, the front and rear frame adopt girder structure, robot welding, high antitorque coefficient and strong overloading ability.
The key structural parts adopt the finite-element analysis to ensure that the machine could adapt to various kinds of dangerous working condition.
Large distance between up and down articulated plate expands the maintenance space and resolves the load horizontally and vertically.
with the overlong machine body and reasonable load distribution, the machine adapts to heavy load.
Long service life
Key articulated positions are of two-stage dustproof, featuring small abrasion and long service life.
Durable blade and bucket teeth feature longer service life.
The hydraulic pipeline adopts DIN standard, two-level sealing of 24° Cone and O ring, settling the common issue of leakage.
The easily worn pipeline is equipped with the protection bush, prolonging the service life.
Reliable drive
The adopted engine of famous brand deatures strong power, large torque conservation, energy saving and high efficiency.
The machine adopts the latest planetary transmission with XCMG multiple unique technologies, featuring high reliability and strong adaptation to heavy load.
The reinforced drive axle. The drive axle flange adopts DIN and SAE standard to enlarge the bolt circle diameter. The adopted self-locking nut for connection and fixing, providing more reliable drive.
The drive axle of the large speed ratio delivers the efficiency, leading top in adaptation to the heavy load.
Comfortable drive
The luxurious cab features large space and wide visibility.
Elegant adjustable instrument panel and comfortable operation.
Gas manual brake and electric flameout. The easy operation saves the labor.
Electronic control planetary box, air conditioner, radio with MP3 function and speaker could be equipped. The operation is faster, easier and more comfortable.
Convenient maintenance
The engine hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
Optimized brake caliper structure, more convenient for the maintenance.
The design of centered oil and water drainage and partial integrated lubrication provide convenience for your operation.
The independent chamber design of return oil circuit of the hydraulic oil tank guarantees the convenience of the service and maintenance.
Item Parameter Unit
Rated load 5 t
Bucket capacity 3 m 3
Dumping height 3090 mm
Dumping distance 1130 mm
Max.drawing force

170 kN
Max. traction 165 kN
Dimension 8185×3000×3465 mm
Operating weight 17200 kg
Boom lifting time  ≤6.0 ≤6.0
Total time of three devices 11 s
Wheelbase 3300 s
Min. turning radius (bucket outer) 6910 mm
Rated power 162 kW
Travel speed I Gear (Forward/Backward) 0-11.5/16.5                            km/h
II Gear (Forward) 0-38                                  km/h
Long boom parameter
Item  Standard bucket Coal bucket
Bucket capacity 2.7m³ 3.5
Rated load 4.5t 4.0t
Dumping height 3710mm 3550mm
Dumping distance 1180mm 1300mm
Dimension 8870×3000×3350 8870×3000×3465
Attachment parameter
Attachment parameter-snow plow
Pushing snow width 3800  mm
Horizontal rotary angle ±38  °
Vibrating angle ±6  °
Obstacle crossing height 0~150 mm
Rated power 162 KW
Attachment parameter-clamp
Dumping height 3241
Dumping distance 1902
Min. circle diameter and max. opening
Basic model 800×1990
IV model 430×2000
Attachment parameter-Sliding fork
Fork folding angle 20  °
Attachment length 2053  mm
Attachment width 2516  mm
Attachment height 1200  mm
Fork teeth length 1200 mm
Attachment parameter-Side dumping
Bucket width 3000 mm
Dimension 8310×3040×3465 mm
Dumping height( straight/side ) dumping 2960/4125 mm
Dumping distance( straight/side ) dumping 1272/105 mm
Lifting height( straight/side ) dumping 5407/6830 mm
