Product Specifications
| Prod Model: |
BYC168-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
3D UV Printer Cell Phone Case Printer |
| Main Engine: |
Espon 1900 |
| Max Print Size: |
28*60*18cm or 28*42*8cm |
| Color: |
Cmyk + White |
| Printer Size: |
87*67*63cm (70kg) |
| Wooden Package Size: |
95*75*75cm (95kg) |
| Print Technology: |
UV LED Flatbed Printing |
| Voltage: |
110V/220V |
| Gross Power: |
Approx 120W |
| Service: |
OEM, ODM, Free Sample |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Plate: |
Flatbed Printing |
| Structure: |
Non-Contact Printing |
| Usage: |
Cell Phone Case Printing Machine |
| System Supported: |
Windows 2000/XP/7/8 |
| Printing Speed: |
About 1 Minute for A4 Size Photo |
Product Description

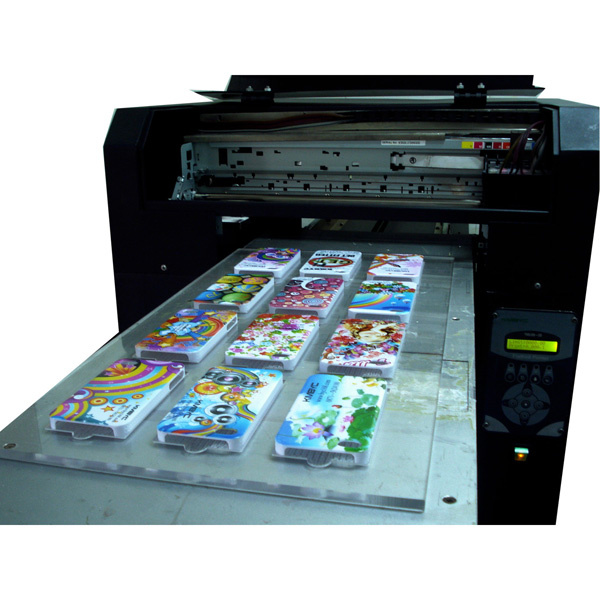

Wholesale BYC168-3 3d uv printer cell phone case printing machine with led
Brief Introduction
This UV printer is economy normal speed model; For example to print A3 size photo, it costs approx 3.5 minutes.
1, flatbed UV printer is used for print any flat product except textile, such as acrylic, wood, galss, plastic, phone case, pen, card, golf ball, flat glasses lag etc...
2, flatbed UV printer is directly print; For most material, no need coating, no need any treatment before or after print; It is one of them most convinient printing technology;
3, UV print effect is the best, strongest and most stable; No only water proof, acratch proof, but also alcohol proof, sun proof...
4, UV printer can print textured / embossing effect, hand feeling and visual perception are very good;
5, our UV ink is very good quality and cheap, especially white ink is only $45/500ml; It is very cheap for print white effect or print on black products.
Necessary goods of UV printing are as bellows:
1, Color UV ink + White UV ink, can print on any color product;
2, Cleaning liquid: It is better to keep some Cleaning liquid in stock, you may need to clean the printer someday (for example if you will leave it not work for long time);
3, RIP software is necessary for print white color, and its inner ICC is very good for print all colors;
Print process is easy, directly print picture from computer with no transfer, no color lose:
1, light color product (no need white ink):
S1, put product on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click print option, and it will be printed onto the product;
2, dark and black color product (need white ink):
S1, put product on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click white print option;
S4, it prints white picture base onto the product;
S5, click the color photo print option;
S6, it prints color photo on white base;
Details of Wholesale BYC168-3 3d uv printer cell phone case printing machine with led
| Model | BYC168-3 Flatbed Printer |
| Printing Technology | 8-color advanced MicroPiezo inkjet technology |
| Nozzle Configuration | 180 nozzles*8 |
| Minimum Ink Droplet Size | 1.5 Pico liters |
| Print Resolution | User definable up to 5760*1440 DPI |
| Print Size | User definable up to 32.9*60cm |
| Print Height | User definable up to 18cm |
| Height Adjustment | Automatically by Infrared ray |
| Print Speed | A4 size Borderless Photo: As fast as 64 sec. |
| Adjusted according to the precision mode. |
| Ink Type | 8-color Multifunctional Ink / Textile Ink |
| Ink Palette | Mode 1: Photo Black, Matte Black, Cyan, Magenta, Yellow, Red, Orange, Gloss Optimizer. |
| Mode 2: Black, Cyan, Magenta, Yellow, White, White, White, White. |
| Ink Cartridge | Continuous Ink Supply System |
| Rated Voltage | AC 110/220 V |
| Power Consumption | Printing: Approx 35 W |
| Sleep mode: Approx 3W |
| Interface | Hi-Speed USB 2.0 |
| Operating Systems | Windows® 2000, XP, XP Professional x64 and Windows Vista™, Windows 7 |
| Macintosh® OS X 10.2.8, 10.3.9, 10.4.11, 10.5.x and 10.6.x |
| Operating Temperature | 50° to 95° F (10° to 35° C) |
| Operating Humidity | 20% to 80% |
| Dimensions | Printer: Approx 870*670*630 mm |
| Package (with wooden case): Approx 950*750*750 mm |
| Weight | Printer: Approx 75kg |
| Package (with wooden case): Approx 85 kg |
| Software Included | Driver CD, Operation CD. |
| Origin | Kunming, China |
