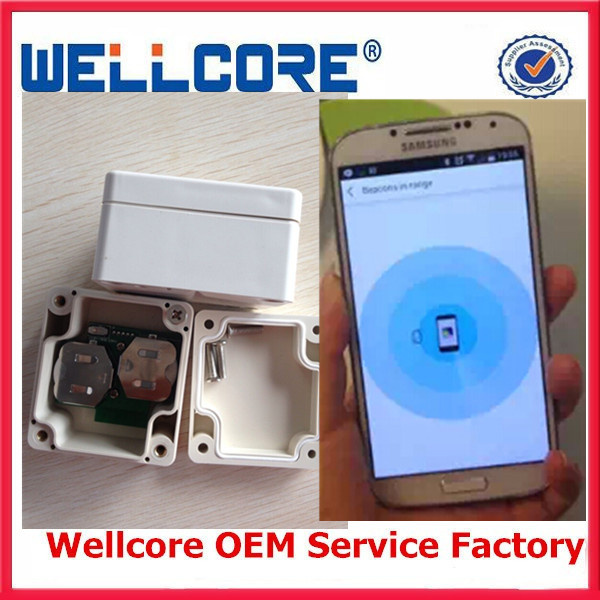

Mini Ibeacon BLE 4.0 Ibeacon withWaterproof Case and 2PCS Cr2477 Battery
Product Description
IBeacon module, Bluetooth 4.0 Low Energy, iBeacon firmware
Factory sales & Better price & High quality
We' ll check every Product before ship out!
We could mark the package as a GIFT and claim a lower price for you.
Custom-made, small order and OEM is available.
Specifications
1. MFI IBC-14-00417
2. CR2450 battery holder
3. BLE 4.0 low energy module
4. 50m antenna
About iBeacon:
Development and production including firmware and hardware all by MINEW Technologies
IBeacon firmware supports CC2540 and CC2541 BLE 4.0 modules
Built-in pairing password to prevent others to modify the settings
UUID, Major, Minor values can be changed and modified by customer own
The name of iBeacon that shows on iOS device can be customized
Built-in JTAG port for customized other application firmware
Standard plastic case for iBeacon module is available
The sticker on plastic case can be printed customer's logo if required
Features
Built-in iBeacon firmware
Built-in a coin battery
Bluetooth low energy technology compatible
Excellent link budget (up to 97dB)
Enable long range applications
Accurate digital RSSI
Apple&MFI Certified and compatible with CE and FCC regulation
High performance and low power 8051 core MCU
Temperature sensor
Full speed USB interface
AES security coprocessor
Descriptions
Run standalone as iBeacon, External host is not required.
Application for advertisement and location
Built in pairing password to prevent others to modify the settings
Support customize your own iBeacon configuration including UUID etc.
Tx Power configurable
Advertising frequecy configurable
Support upgrade firmware through OAD (air upgrade)
Built in JTAG port for customized other application firmware as a standalone system
Refund & Replacement:
One month for return policy from the arrival date.
Please simply return to us for replacement or refund, when you find the unperfected quality items or they don't work well.
If the items are defective please notify us within 3 days after arrival.
Any items must be returned in their original condition to get a refund or replacement.
Contact information:
Shenzhen Wellcore Technology Co., Ltd
Address: No. 11, Longshan Industrial Zone, Nanling, Buji Town, Longgang District, Shenzhen, China
If you have any enquiry, Please kindly feel free to e-mail us or chat with us!
Item |
Value |
Remarks |
Firmware |
iBeacon |
Version 1.3.1 |
Battery model |
LIR2032 |
Rechargeable battery, 1 pc |
Operation Frequency |
2400-2483.5MHz |
Programmable |
Frequency Error |
+/- 20KHz |
|
Modulation |
Q-QPSK |
|
Standby current |
100uA |
Depends on duty cycle/broadcasting frequency |
Broadcasting Frequency |
900mS |
Duty cycle |
Output Power |
0 dBm |
Default setting, programmable |
Receiving Sensitivity |
-93dBm |
High gain mode |
Transmission distance |
50 meters -100meters |
BER<0.1%, Open space |
Antenna |
50ohm |
On board/ PCB Antenna |
Size |
56mm*35mm*11mm |
|
Operation Voltage |
2.0-3.6V |
DC |
Founded in 2006, Wellcore Technology is a high-tech Electronic Products such as Ipush manufacture which has the ability of R&D and manufactory in China. Wellcore is specialized in Industrial Level and Commercial Level Ipush. Its biggest strength is based on our quality and professional in ibeacon, scooter headsets Field and customers' Application these years. And we have full experience to help and support customers from different Industrial and Commercial market.
Wellcore understands that professionalism and innovation, as well as the value of its products and services, drive a company' S competitiveness in the market. Wellcore' S devotion to quality requires performing at the highest standards as they relate to ID design, purchasing and supply-chain management (raw materials), manufacturing processes, quality control and testing.
