Product Specifications
| Prod Model: |
540mm 4lines |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
PLC Controller, Touch Screen |
| Counting: |
Automatic Counting |
| Folding Type: |
Perfect Folding and Cutting |
| Emboss: |
Embossing Unit |
| Process: |
Finishing Process Machine |
| Usage: |
Packing Paper Machine, Household Paper Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
Yes |
| Certification: |
CE, ISO |
| Type: |
Paper Cutting Machine |
Product Description

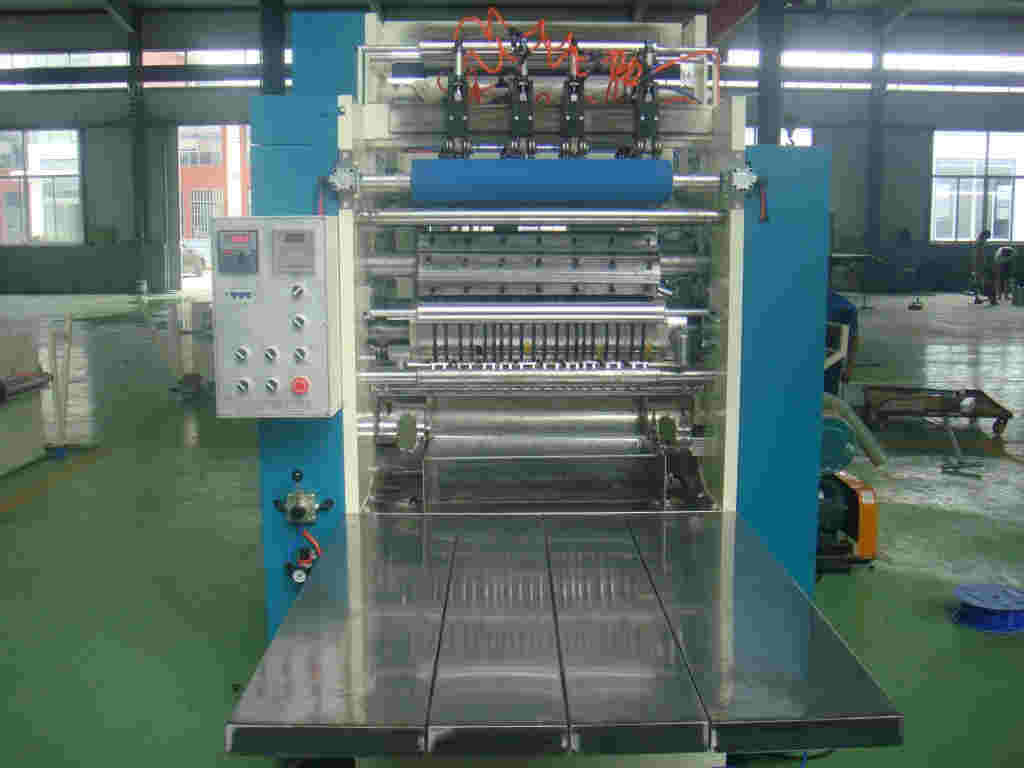

Wipe Face Tissue Machine/Tissue Paper Machine/ Facial Tissue Making Machine
Machine model
Machine configuration
Item1.
HL-ZS—540(190/3L)
Facial tissue embossing folding cutting machine
190mm * 3 lines
Steel to steel embossing unit
Steel on steel blank/edge embossing
PLC computer programming
Raw material diameter: 1100mm
Raw material core diameter: 76.2mm
Core inside diameter of parent roll: 3"(76.2mm)
Maximum width 540mm Machine paper
Unfold paper: 190*MM
Fold paper: 85*190MM
Speed: 0-100 m/min
Pneumatic DOT slitting
Alternate stack by stack
Main motor power
Frequency conversion speed regular: 5.5-11kw
Driving system: Timing belt driving system
Lubricating system: Automatic key parts regular lubricating
Programmable controller: PLC
LCD screen operational panel
Vacuum suction unit: Roots type suction pump, 11-32kw
Pneumatic system: 3 HP air compressor
Dimension: 6400*1780*2130mm
Weight: 4500-7500kg
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
