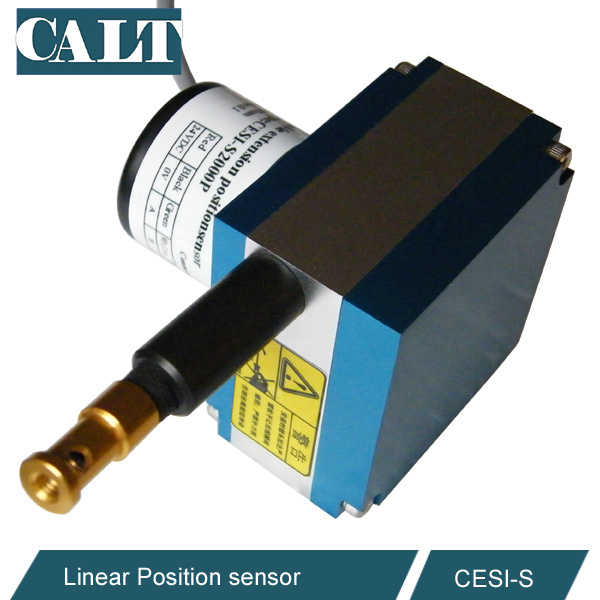

Wire Draw Device Spring Return Encoder Cesi Series Analog Sensor

Name: Wire Draw Device Spring Return Encoder Cesi Series Analog Sensor
Brand: china-manufacturer-directory.com
SKU: 708125355
Availability: InStock
Rating: 4.7 (45 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1)length measurment
2)measure range 0~2000MM
3)signal. Outpu: Push-pull, TTL, open collector ect
4)0.01, 0.02, 0.04, 0.08mm/pulse
CESI-S 2000 series

Features
*compact size, rugged construction, easy to install
*economiccost, andcost savings for customers
*Various signals output optional: Push-pull, TTL, open collectorand so on
*The cylinders, testing machines and other industry has achieved large-scale applications, reliability

Resolution	0.01, 0.02, 0.04, 0.08 mm / pulse	Range	0~2000mm
Detection method	Incremental encoder	Accuracy	+/-0.05%FS
Current consumption	≤ 60mA	Operating Temperature	-20° C~80° C
Frequency response	10K Hz to 50K Hz	Operating Humidity	30~85% No condensation
Output signal	AB phase, ABZ in The phase	Supply voltage	10-30V DC, 5V DC
Phase difference	A, B a difference of 90 degrees	Cable	1M
Waveform up and down time	2 ms	Anti- shock	10HZ to 1500HZ, 10G
Starting torque	< 700g	Impact resistance	20G, 11ms
Circuit characteristics	voltage, current, push-pull, long-line drive output, open collector	rope specifications	rope 0.6-1.2mm, rope maximum load: 16KG
Degree of protection	IP65/IP54	weight	450g
speed	1m/s

Prod Model:	CESI series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	6kg
Output:	Digital Sensor
Usage:	Position Sensor
Theory:	Optical Sensor
Material:	Metal
