Product Specifications
Prod Model: |
PA-476 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Alarm Output: |
Nc,28VDC 0.15A |
Detection Distance: |
12m |
Working Humidity: |
95% |
Sensitivity: |
Level 2 Adjustable |
Certificate: |
CE and RoHS |
Product Description

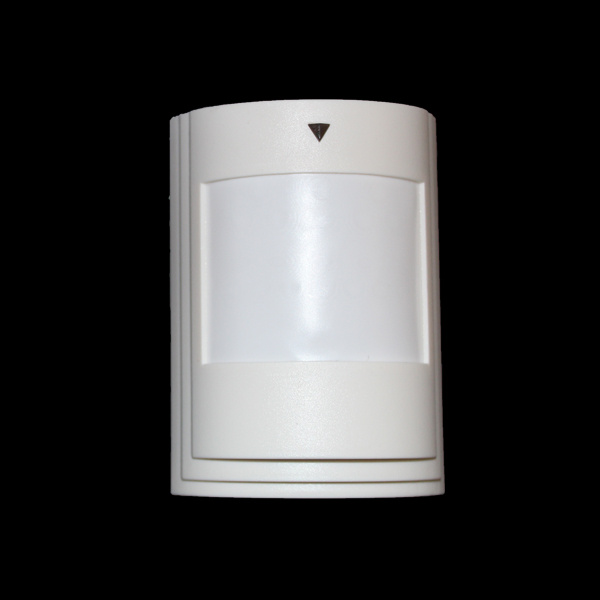

Paradox PA-476 wired pir Motion Sensor IR Sensor Burglar Anti-theft Intruder Detector
Features:
1) Apperance fashion and delicate, fluent, suitable for any adornment environment.
2) Pusle automatic adjust, resistance of RF interference.
3) Flame retardant shell.
4) Popular Hang Wall Passive Infrared Motion Detector, particularly suitable for security of community use.
1. High performance passive infrared motion sensor, compact size and streamlined design is ideal for the security application
2. Auto pulse signal processing, 2 levels adjustable
3. Auto temperature compensation
4. Optional other lenses
5. This sensor also provides backup protection door/window sensors
6. The indoor sensor can be used to protect locations where door/window sensors are impractical or not needed
7. High density SMD design
8. Sensor low battery reports to the control panel
9. Additional connector for EOL resistor
10. This PIR motion sensor has a changeable PIR range for smaller rooms, making the sensor even more balanced, without compromising its excellent detection ability
11. Fire resistant case
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. Two years warranty is provided for all models.
Delivery
1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 4-6weeks after the receipt of payment. Please contact our sales to make sure the current inventory.
Model | PA-476 |
Sensor | low noise, high sensitivity, dual infrared |
Processor | Level 2 automatic pusle and temperature compensation |
Starting time | Electrify 60s |
Detection speed | 0.2--7m per second |
Sensitivity | Level 2 adjustable |
Working temperature | -10°C to 50°C |
Power input | 9--16Vdc,await for instrucion1 8mA,alarm 20mA |
Resistance of white light | 6500 lux |
Alarm output | NC,28Vdc 0.15A |
