Product Specifications
| Prod Model: |
K-4-C K-300plus K-O3-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Waiter Buzzer Call System |
| Frequency: |
433.92MHz |
| Range: |
300-500m in Open Area |
| Used For: |
Restaurant, Teahouse, Bar,Cofe Shop;Casino |
| Cetification: |
CE |
| The Button: |
for Customer Use |
| Button Size: |
60*60*22mm |
| Warranty: |
One Year |
| Display Type: |
Show Number with Service Type |
| Key Button: |
Call;Bill;Cancel |
| Usage: |
Commercial |
| Call Type: |
Mixed |
| Hardware Technology: |
All-in-One |
| Certification: |
CE |
| Condition: |
New |
Product Description

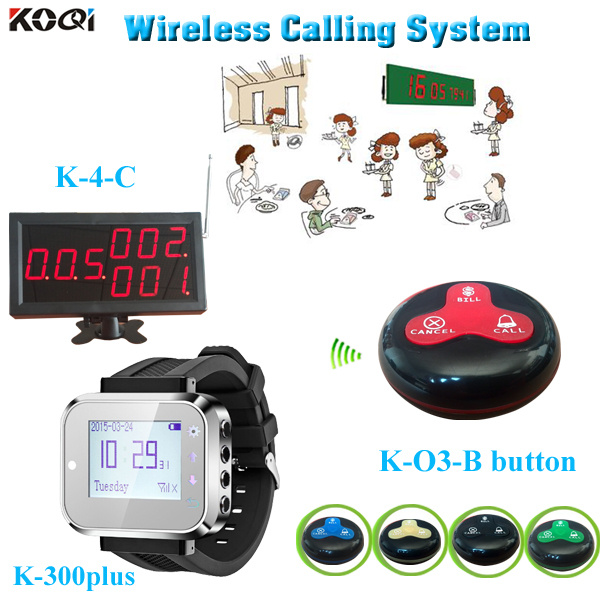

1. Waiter buzzer call system
Waiter buzzer call system is widely used in the service area. It consist of table button for guest use and signal receiver for waiter use. When a guest need any service, he or she just press the button near to him or her, then his or her table number will be shown on the display for waiter's attention.
2. Please be kindly noted as follows:
1) A complete system should consist of transmitter and signal receiver, the two parrs have to work together.
2) The package size and total weight should be subject the final quantity you ordered.
3. Specification:
Specification of Display Receiver K-4-C:
1. With high strength high strength ABS shell, durable in use
2. Using digital code technology and the function is steady and reliable
3. Show 3-digit number and can show 3 groups of number at the same time.
4. Show different service type with special symbols(dots).
5. It can work with 400pcs 1-key or multi-key call buttons in max
6. It can save 30 calling info in turn, and apply in basic service places.
7. Improve service level restaurant server for wireless calling system
8. Technical parameters
*Working voltage: DC12V~18V
*Working current: <20mA
*Working Frequency: 433.92mhz
*Dimension: 282*150*34mm
Specification of Wirst apger K-300plus:
1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3.Show 4-digit number from 0001-9999 and first letter can be A-Z
4.Can indicate different service type via words or letter.(call;bill;drink; dessert ; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6.Can track the history calls up and down
7.Shows current time when stand-by
8.3 reminder ways:sound promt or vibration or both
9.Battery is rechargeable
10.Dimension:50*41*16mm
Specification of call bell K-O3
1.100% Water-proof
2. Work with our receiver to combined the wireless calling system
3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.
4.3-key button: Call;Bill;Cancel
5. Color: White-Red; White-Blue; White-Yellow; White-Green.
Technical Parameter:
Working voltage: DC12V
Working current: ≤ 35mA
Use Frequency: 433.92mhz
Transmitted Power: ≤ 10mW
Transmitted Distance>300m in open area
Size: 60*60*22mm
4. Shipping information:
DHL, EMS, FedEx, UPS door to door service, 5-7 days from China to your country. Door to door service.
5. Warranty: One year
6. FAQ
Applications
Wireless calling system can be used in restaurants, hotels, hospitals, tea house, coffee shops, health clubs, beauty salon, SPA center, bars, swimming pool, beach, etc
What are the components of the wireless calling system?
1. Wireless receiver, installed on the count
2. Call button, installed on each table
3. Signal repeater (optional), enhance the signal
How does the system works?
1. After your customer gets seated the waiter informs them that when they require service, all they need to do is press the button sitting on their table.
2. When the customer presses the call button on their table, their table number will appear on the reciever with ringing. Waiters then head over to the table and provide service to the customer promptly and quickly.
