Product Specifications
| Prod Model: |
OBM-380 |
| Markets: |
Eastern Asia |
| Light Source: |
650nm Laser |
| Frequency: |
433MHz |
| Communication Distance: |
300m(Max.) |
| Resolution (PCS0.9): |
0.10-0.825mm |
| Scan Width: |
60mm at 30mm; 100mm at 100mm |
| Depth Of Field: |
10-420mm |
| Scan Rate: |
45 Scans/Sec. |
| Receiver Voltage: |
DC 5V |
| Battery: |
2000mA Lithium Ion Battery |
| Working Current: |
85mA |
Product Description

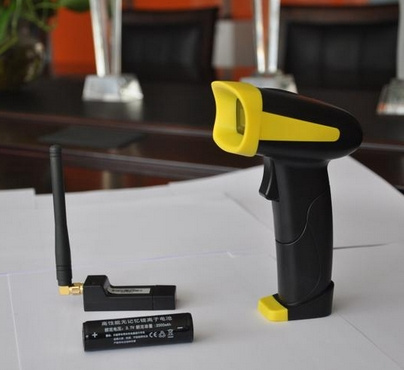

Wireless Laser Portable Laser 1d/2d Barcode Scanner For Supermarcket & Warehouse OBM-380
Features:
Integrated non-volatile memory secures data even when out of signal or power-off
Industrial design: Impact-proof and dust-proof
Multiple connectivity options for receiver: RS232, PS/2 or USB
Data transmission distance reaches 300m in open area
2000mA Lithium-ion battery ensures long working hours
Detachable battery offers easy replacement and charging
About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.
|
Performance |
|
Light Source |
650nm Laser |
|
Frequency |
433MHz |
|
Communication Distance |
300m(max.) |
|
Resolution (pcs0.9) |
0.10-0.825mm |
|
Scan Width |
60mm at 30mm; 98mm at 100mm |
|
Depth of Field |
10-420mm |
|
Scan Rate |
78scans/sec. |
|
Electrical |
|
Receiver voltage |
DC 5V |
|
Battery |
2000mA Lithium ion battery |
|
Working Current |
85mA |
|
Environmental |
|
Operating Temperature |
0-45 |
|
Storage Temperature |
-20- 60 |
|
Humidity |
5%-95% (non-condensing) |
|
Lumination |
5000Lux (max.) |
|
Physical |
|
Dimention |
80x60x160mm |
|
Material |
ABS |
|
Weight |
240g |
Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.
In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.
Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.
Let us work together and make a better tomorrow with all new and old customers from all over the world.
