Wireless Portable Barcode Data Scanner, Data Collector

Specifications
1. Using WINCE 5.0 operation system.
2. Have high standard design of industrial level.
3. Support a bar code scanning.
Overview

Operation system: WINCE 5.0
Scan module: IRDA
Communication ports: USB2.0/RS232

Features

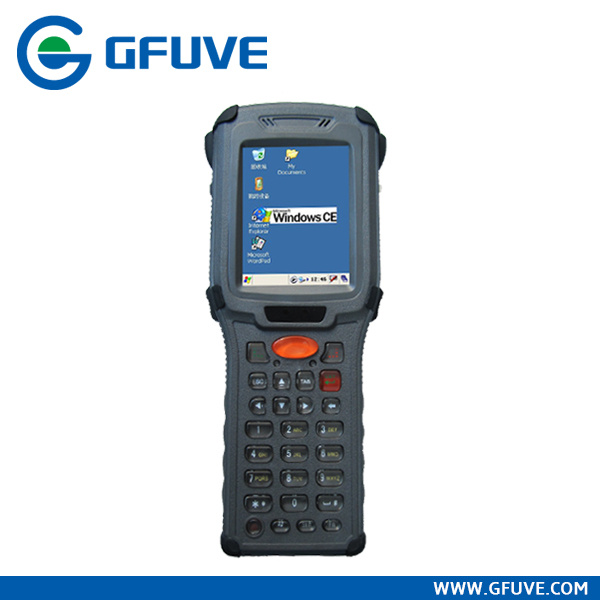

GF800D is a professional terminal that is design for electronic meter reading. This terminal has the stability of the data collection and the characteristics of data storage.

Using WINCE 5.0 operation system, developing the application software easily;
Have high standard design of industrial level and you can use the terminal in bad conditions;
The side of terminal has a seal and attaching rubber, it make the terminals waterproofing and dust-free;
Read data of electric energy meter via IR;
Support a bar code scanning;
Support WIFI, Bluetooth, GPRS, and so many communications;
Support 433M RFID module;
Support the communication functions of USB2.0, RS232.


CPU: ARM 32bit 405MHz
Memory: RAM: 512M
Flash ROM: 64MB
Display: 2.8 Inch TFT display, 320× 240 pixels with touch screen
Keypad: 27 keypads
Communication ports: USB2.0, RS232, RS485, IR
Scan module: IRDA

Physical parameter
Battery: 3.7V lithium battery, 4400mAH
Drop height range: 1.5 M
Weight: 420g(including battery)
Dimensions: 196(L)× 58(W)× 42(H)mm

Environment
Work temperature: -20° C ~ + 50° C
Storage temperature: -30° C ~ + 70° C
Work humidity: 5% - 90% (without condensation)
Storage humidity: 5% - 95% (without condensation)
Sealed classes: IP65
The specifications of laser security: Meet IEC Class 2/FDA ClassII, IEC60825-1/EN60825-1
