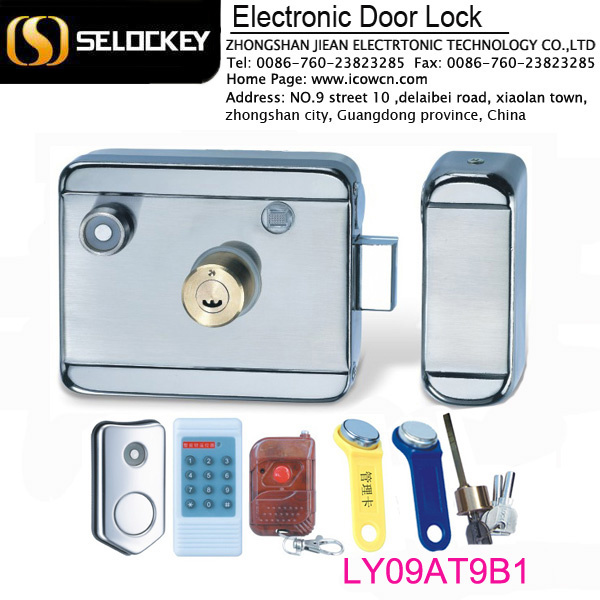

electric door lock with door open records:

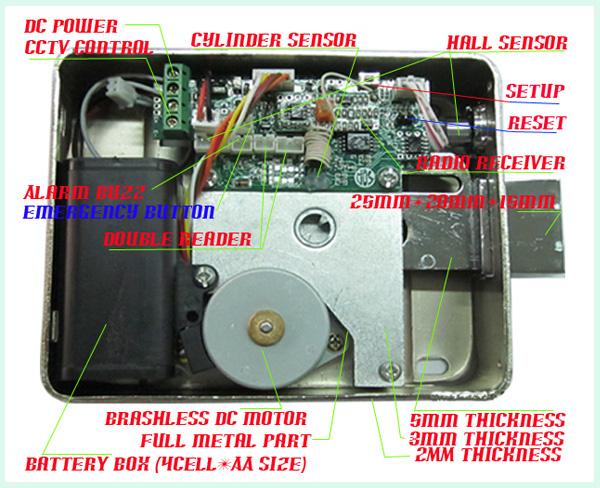

electric door lock with door open records inner structure:

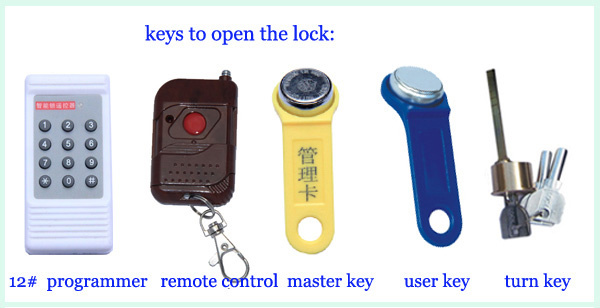

electric door lock with door open records keys:
Product Name: wireless remote control electric door lock with door open records(LY09AT9B1)
Product Model: LY09AT9B1
Product Group: Electronic door lock(TM card)
Features:
¤ Can store 2048 door unlock record, with clock, perfectly mate with door access control system and building intercom.
¤ Unlock type: TM card, 12# programing control, wireless remote controller, mechanical key.
¤ Using special TM1990D key, cannot be copied; Can store 1010 cards and wireless remote controls; With double sides card readers.
¤ The front card-swiped panel is 304 stainless steel, could swipe card under water, vandal resistant.
¤ Built-in spare 4*AA batteries for emergency power supply.
¤ Double sides"E" cylinder key.
¤ 2mm thicknesssteel lock body, full-steel thicken lock tongue, metal gear.
¤ With wireless receiving module, wireless remote control keyboard. Can use remote control to unlock
¤ Mute, automatically lock, alarm when lock tongue is blocked, bludgon into alarm.
¤ Built-in wireless transmitting module, can launch wireless alarm signal, convenient to receive equipment of high power wireless alarm.
¤ The hall sensing detection, more stable and durable than common reed pipe sensor, low failure rate.
¤ Brushless motor, more stable performance and durability.
Parameters:
Card issue: Programming remote control, mother card, or network
Card type: TM1990D card (can't be copied);
Card capacity: 1010PCS, and can be extended.
Card sensing distance: >25mm
Wireless remote control distance: > 30 meters
Wireless alarm launch distance: > 50 meters
Working temperature: -30~50 centigrade
Humidity: <95%
Working voltage: DC 10~18V
Unlocking signal voltage: DC 6V~30V
Built-in voltage: 6V (4*AA batteries);
Low voltage alarm: ≤ 4.5V 8%
Working current(MAX): < 500mA
Quiescent current: <76uA
Support external alarm power: < 10W
Anti-interference: IEC801-5 standard
Anti-surge: IEC801-5 standard
Working life: >1, 000, 000 times
11. Emergency opening:
A. Mother card;
B. Mechanical key;
C.Backup battery to supply power.
Application:
Our electric door locks with door open records are widely use in security systeim,building telecom,rental houses,access control system, etc. Where need more security and unlock with smart card conveniently.
Delivery:
Sample: 1-3days
Order: 3-10days
Packing:
Neutral packing or color box packing.
1PCS/box, 1.5kg; 12box/CTN.
Lock bodyc Size: 130*105*40mm
Carton size: 540*380*450mm, 20kgs, 0.092CBM.
Electronic door locks we could produce:
TM1990D ibutton card key electronic door lock;
TM1990D ibutton card key and password electronic door lock;
TM1990D ibutton card key electronic door lock with door-open records for door access control system;
TM1990D ibutton card key electronic linkage door locks;
Mifare One smart card key electronic door lock;
wireless remote control electronic door lock;
electronic rim door lock;
electronic mute door lock;
Customized is also available.
