Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 2/Piece |
Pay Type: | T/T,Money Gram,Western Union |

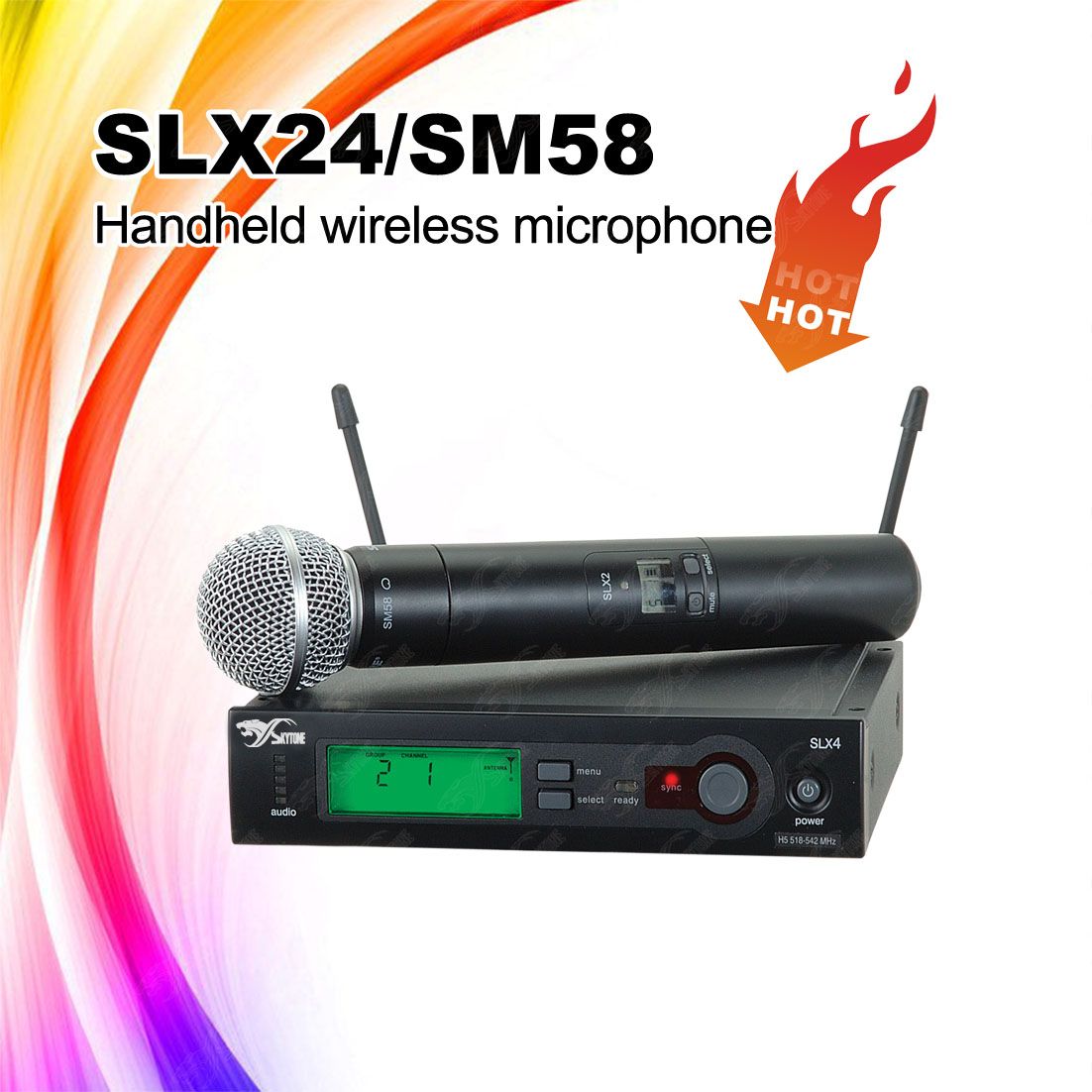

Prod Model: | SLX24/SM58 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: | Slx24/Sm58 |
System Type: | UHF Wireless Microphone |
Componments: | Slx2 Handheld Mic, Slx4 Receiver |
Operating Range: | 30-100 M |
Frequency Range: | 800-820MHz |
Dynamic Range: | >100 dB a-Weighted |
Working Hours: | >8 Hours |
Style: | Handheld Microphone |
Application: | Meeting |
Signal Transmission: | Wireless |
Directivity: | Uni-direction |
Sound Channel: | Mono |
Transducer Principle: | Electrodynamic Microphone |
Connector(',s): | XLR 3 Pin |
Wireless Technology: | UHF |
Output Impedance: | 50-1000Ω |
Slx24/Sm58 System Specifications | |||
Operating Range: | 30-100 m (100-300 ft.) under typical conditions, depending on transmitter type Note: actual range depends on RF signal absorption, refl ection, and interference. | ||
Audio Frequency Response: | Minimum: 45 Hz, Maximum: 15 kHz (± 2 dB) | ||
Total Harmonic Distortion: | 0.5%, typical (ref. ± 38 kHz deviation, 1 kHz tone) | ||
Dynamic Range: | >100 dB A-weighted | ||
Operating Temperature Range: | Operating Temperature Range: | ||
Transmitter Audio Polarity: | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance ¼-inch output. | ||
Component Specifications | |||
SLX4 | SLX2 | ||
Housing: | Galvanized steel | Housing: | Molded ABS handle and battery cup |
Audio Output Level: | (ref. ± 38 kHz deviation with 1 kHz tone) XLR connector (into 600 Ω load): -13 dBV ¼ inch connector (into 3000 Ω load): -2 dBV | Audio Input Level: | -8 dBV maximum at 0dB position |
Sensitivity: | -105 dBm for 12 dB SINAD, typical | Operating range: | 100 m (300 ft.) |
Image Rejection | >70 dB, typical | Power Requirements: | 2 "AA" size alkaline or rechargeable batteries |
Power: | 12-18 Vdc at 150 mA, supplied by external power supply | Battery Life (alkaline): | >8 hours |
Weight: | 816 g (1 lb. 13 oz.) | Weight: | 290 grams (10.2 oz.) without batteries |
Dimensions: | 42 mm H x 197 mm W x 134 mm D | Dimensions: | 254 mm x 51 mm dia. (incl. SM58 cartridge) |
