Product Specifications
| Prod Model: |
VDC3600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Video Doorbell |
| Talkback Type: |
Color Video |
| Peephole: |
Without Peephole |
| Waterproof: |
Not Waterproof |
| Application Scope: |
Home |
| Automation: |
Non Automation |
| Wireless: |
Wireless |
| Power Source: |
Battery |
| Active Doorbell: |
Wireless Video Doorbell |
| Brand: |
Mintion |

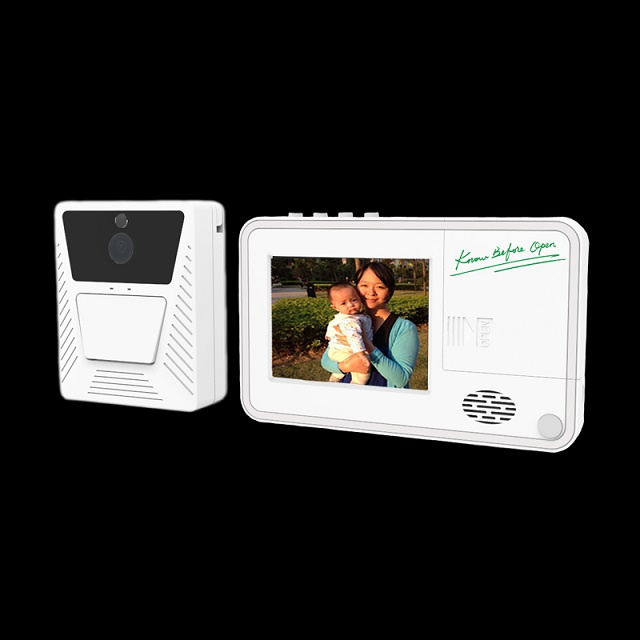

Product Description
Feature:
Ø Simple and Fashion, with Piano Coating Design
Ø Know Who's Coming Before Open the Door
Ø Wireless Monitor From Indoor, No Need Cable
Ø Built in 3.5" TFT Monitor
Ø Integrated CMOS Camera, with Ultra Wide Angle Lens, up to 150°
Ø Auto Capture When Press the Bell, Saved 120pcs Pictures Totally
Ø High Capacity Lithium Cell for the Bell, Standby for 5 Months
Ø Night Version, with 6pcs Wide Angle ¢5mm IR LED, IR Distance to 3M
Ø 2.4GHz Digital Wireless Transmission, up to 200M Outdoor, 50M Indoor
Ø With Patent Certificate (Chinese Patent No. 201320596275.7), CE/FCC/RoHS Certificate
Specification:
| Model | VDC-3600 |
| Color | White (VDC-3600-W); Black (VDC-3600-B) |
| Camera Sensor | 1/6" CMOS Sensor |
| Lens | 1.9mm@ F2.0 View Angle: 150° |
| Resolution | 320*240 |
| Video Compression | MJPEG |
| Video Bit Rate | 32Kbps~2Mbps |
| Frame Rate | 15-20fps |
| LCD | 3.5" TFT |
| AWB | Support |
| BLC | Support |
| Capture Function | Auto Capture for 3pcs Images When Press the Bell, Totally Saved 120pcs Pictures, Recover Automatically |
| Monitor Function | Wireless Monitor From Indoor, No Need Cable |
| Battery | 2300mA Lithium Cell for the Bell, Standby for 5 Months;
Could Press 1500 Times with Night Version |
| Music | 16 Chord Music, 6 Volume |
| Wireless Frequency | 2.4 GHz ISM Band |
| Wireless Distance | Outdoor:200M, Indoor: 50M (Depends) |
| Power Supply | Monitor: USB Power Supply;
Door Bell: Lithium Battery |
| Installation | 3M Stickers or Screws to Install |
| Temperature and Humidity | -10ºC~60ºC, <95% |
| Size | Monitor: 85mm*91mm*33mm
Door Bell: 150mm*96mm*25mm |
| Weight | Monitor: 160g(Including Battery)
Door Bell: 170g(No Batteries) |
Mintion is an integrated with video application products on research and development, sales and manufacture company. With "Simple is the Best" ideal, Mintion is working to combine the systems which is relative with video application and innovated for a long time.
Now Mintion has pushed the new Video Door Chime into market and has feedback with good reputation. Meanwhile Mintion has applied the Chinese patent to SIPO of China for Video Door Chime, and also got some quality certificate for products, such as CE, FCC, RoHS, etc; With completed sales and technical support policy, Video Door Chime has sold to more than 30 countries and regions, for example as USA, UK, German, Australia, Italy, Russia, India, Brazil, etc.
Mintion is always complying with policy of Quality Is Reputation and Meet the Requirement of Customers for our company culture; With constantly improving and mutual benefit principle, we welcome all the customers to ask for ODM/OEM service and cooperation.
