Shenzhen AmViewing Electronics Co., Ltd. >> Wirless CCTV Camera System, 720p HD WiFi IP Camera+4CH 2.4G Wireless NVR. with or W/O Network Workable

Wirless CCTV Camera System, 720p HD WiFi IP Camera+4CH 2.4G Wireless NVR. with or W/O Network Workable

Wirless CCTV Camera System, 720p HD WiFi IP Camera+4CH 2.4G Wireless NVR. with or W/O Network Workable
Price: Negotiable/Piece
Trade Terms: EXW
Min Order: 1/Piece
Pay Type: T/T

Product Specifications

Prod Model: AV-WI9504-720
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Monitoring System
Feature: Vandal-proof
Video Capture System: Video Camera
Model: Surveillance
Sensor: CMOS
Technology: Infrared
Video Transmission System: Wireless Transmission,Network Transmission
Horizontal Resolution: 720p HD

Product Description

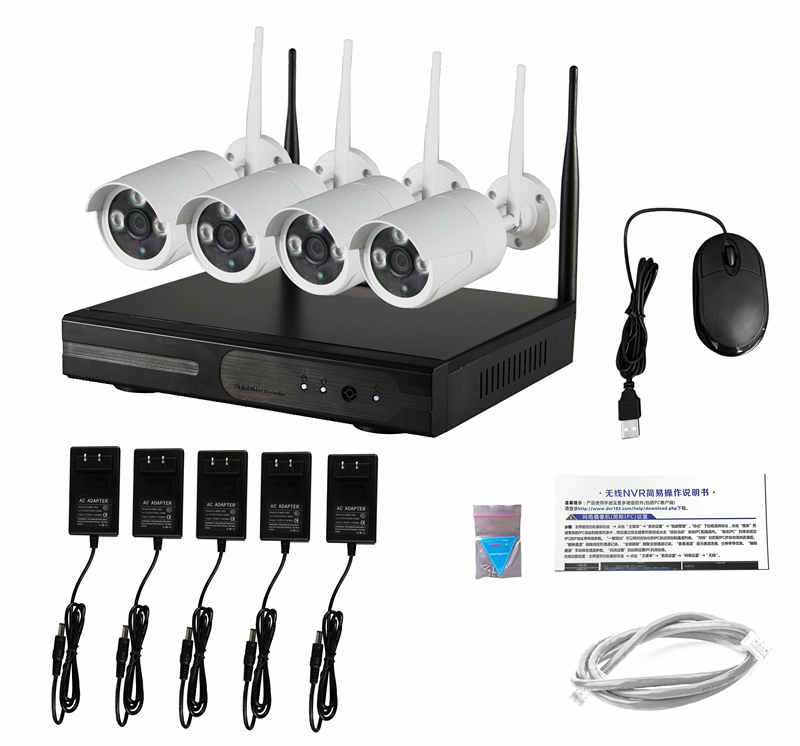

AmViewing wireless cctv camera system,720P HD wifi ip camera+4ch wireless 2.4G nvr

AV-WI9504-720 with or w/o network workable.Router module built-in the NVR,with powerful WiFi function.

IPC Specification:
ProcessorIndustrial-Grade Processor
Operating SystemEmbedded Linux OS
Image Sensor1/4" Progressive Scan Sensor
S/N Ratio> 39.1 dB
Resolution1280 x 720 16 : 9 High Defination
Min.IlluminationColor: 0.1 Lux;B/W: 0.01 Lux;0Lux(LED ON)
Lens4mm
OSDDate Time & Title
White BalanceAuto
Day & NightAuto / Color / BW
3D-DNRAuto
Mirror/FlipOn / Off
Privacy Masking4 Zone Selectable
Frame SpecificationThree Streaming at the Same Time:
H.264 128x720@30fps or below
H.264 640x480@30fps or below
Anti-thunder LevelStandard IEC61000-4-5
Power InputDC12V-1A
Consumption≤6W
InterfaceRJ45 / WIFI 802.11b/g/n
Working Temperature/Humidity-10ºC to +50ºC / 30% to 80% RH
Storage Temperature/Humidity-20ºC to +60ºC / 20% to 90% RH
Size205(L)×70(W)×55 (H)mm
Weight500g


WiFi NVR Specification:
ProcessorIndustrial-Grade Processor

Operating SystemEmbedded Linux OS

Video/Audio Input
Network Video Input8ch 960P/4ch 1080P
Network video access bandwidth20Mbps





Video/Audio OnputHDMI Output1ch,Resolution:1024x768,1366x768,
1440x900,1920x1080p


VGA Output1ch,Res.:1024x768,1366x768,
1440x900,1920x1080p


Video/Audio Codec parametersRecording ResolutionD1/960H/720P/960P/1080P

Synchronous playback4ch

Recording ManagementRecording/ Capture ModeManual recording,timing recording,motion detection recording, alarm recording.

Playback ModeInstant replay, regular playback, event playback

Backup ModeRegular Backup

HardDisk DriverType1x SATA Interface

Max. Capacity4TB Max.for each HDD

External InterfaceNetwork Interface1x,RJ45 10M/100Madaptable ethernet interface
WIFI antenna interface


USB InterfaceUSB2.0

Network ManagementNetwork ProtocolUPnP(Plug & Play),SMTP(Mail Service),PPPoE(Dial-Up Networking),DHCP(Automatically obtain an IP)etc.



OtherspowerDC 12V 3A

Power consumption (exclude hard disk)≤5W


Shenzhen AmViewing Electronics Co., Ltd. is a professional Security CCTV Systems high-tech enterprises with the ability of product development, production and sales. We established a Wide range of businesses relationship with government departments, schools, highways, industrial sites, tourist attractions, residential area, urban transport, shopping center, entertainment, banking, airports and other related industries. AmViewing has a number of comprehensive high-quality, experienced engineering staff elite, with first-class technology, quality products, high-quality service and sincere attitude to satisfy our customers needs and protect customer's investment interests, to win customers trust and high appreciation in this field in dometic and oversea. AmViewing established a good and long-term business relationship based on reliable quality, timely service, reasonable price around the world in more than forty countries and regions.

with rich experience, deep understanding and our clients valuable advice in this line, we made progress and showed more and better products to our customers. We created a cost-effective peak for the security surveillance industry, and has been contributing to the rapid development in this field.

AmViewing people insist on "Top Credibility, Good Quality, Timely Service, Reasonable Price" for business philosophy. with nonstop innovation, more and more quality products to meet the needs of our customers. We sincerely hope to enter into long-term business relationship with our new and old customers with quality products and services for a win-win cooperation. In the future We'll continue to strive hard and keep an eye for the safe and harmonious society.

We provide one year guarantee on the basis of the ship date. All items are passed 24 hours aging testing before delivery. we assure you the quality as our products are passed strictly quality inspection before shipment.
