Product Specifications
Prod Model: |
WLXM-650 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
Name: |
Briquette Coal Ball Press |
Color: |
Orange, Green/Blue/Green |
Main Shaft Speed: |
13r/Min |
Speed Reducer: |
Zq650 |
Roller Diameter: |
650mm |
Roll Material: |
65mn |
Principal Axis: |
165mm |
Main Shaft: |
Forging |
Roller Width: |
336mm |
Power: |
20-30kw |
Pressing Mode: |
Twin-roller |
Product Shape: |
Square Shape |
Motor Type: |
AC Motor |
Condition: |
New |
Product Description

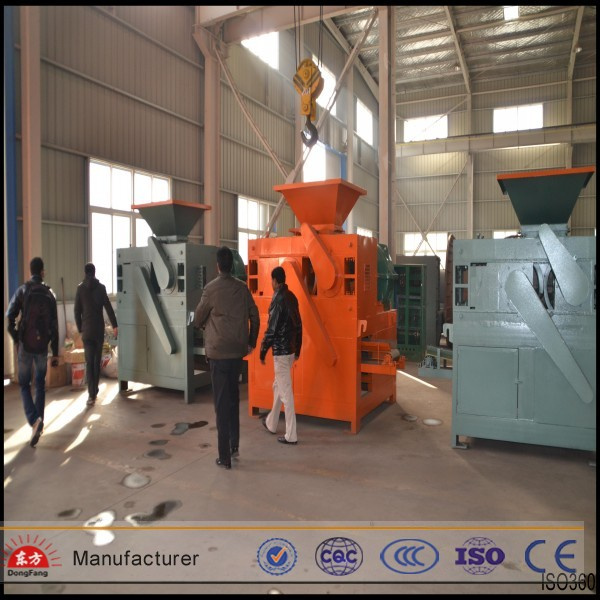

Wood branches/nut shell/rice husk charcoal powder making machinery
Instruction :
Charcoal powder making machinery is widely used in the field of metallurgy,
chemical, refractories etc, for reducing bug dust, controlling volume, recycling,
easy transportation and storage. It has the properties of high efficiency, energy
saving and environment protection.
Raw materials :
Coal and charcoal powder, zinc oxide, lead oxide, calcium chloride, calcium phosphate.
High test bleaching powder, cryolite, chemical inhibitor, silica, Isophthalodinitrile etc.
Features :
1.The machine is small occupation.
2.The base material is alloy steel,so the machine is durable and high quality.
3.The machine can be used to make waste profitable,such as charcoal,coconut shell ,s
ludge and so on,as a result,it will bring you huge wealth.
4.Our machines all have high pressure,so the final production are hard and unbreakable.
5.Last,our factory is an old and reinforced enterprise,we have good credit guarantee.
Working Principle :
This series of pressure machine will pass the power on to the two pressure roller through
the reducer. The two sides and roll rotation, in both the rotating roll, Natural materials to
enter the briquette roll mode, with the roll rotation, material pressure on a small become
larger, When the material to the two rollers rotating line contact point, the pressure of ma
terials has reached the peak. Tremendous pressure in the role of line, the materials become
a finished product from the powder briquette.
Technical Parameters :
Type | Roll diameter(mm) | Capacity(t/h) | Power(kw) |
ZKBM290 | 290 | 1-3 | 5.5 |
ZKBM360 | 360 | 4-6 | 11-15 |
ZKBM430 | 430 | 6-8 | 18.5 |
ZKBM500 | 500 | 7-9 | 18.5-55 |
ZKBM500H | 500 | 7-9 | 20.7-57.2 |
ZKBM650 | 650 | 10-15 | 37-45 |
ZKBM650H | 650 | 10-15 | 39.2-47.2 |
ZKBM750 | 750 | 15-20 | 75-110 |
ZKBM750H | 750 | 15-20 | 78-113 |
ZKBM850 | 850 | 20-25 | 90-110 |
ZKBM850H | 850 | 20-25 | 93-113 |
ZKBM1000 | 1000 | 25-30 | 90-132 |
ZKBM1000H | 1000 | 25-30 | 93-135 |
Remarks: Based on different materials, briquettes size, capacity, the technical parameter is adjustable. |
Operation :
1. If your raw material is big block, you should choose a crusher.
2. If your raw material is with high moisture (higher than 12%), you should choose
a dryer. If you prefer to use dry powder type briquette machine, the moisture should
be less than 5%, also based on materials' performance.
3. Generally, it is better to add some binder/adhesive into the raw material. If you pre
-fer to use dry powder type briquette machines, generally, no need binder.
4. About belt conveyor, you can buy from us, also can make by yourself. We would
like to supply the detail drawing of conveyor for you.
5. The final briquettes can be dried under the sun or through mesh belt dryer and chain
plate dryer.
